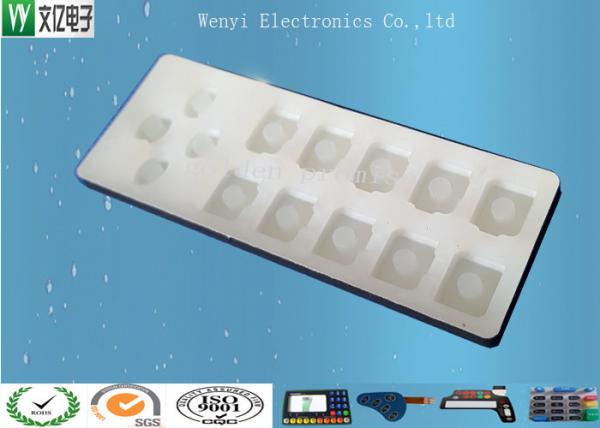

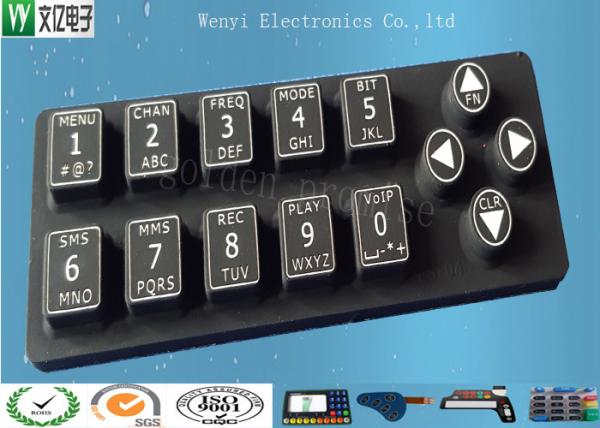

White Print 50 Degree Silicone Rubber Keypad Laser Engraved Non Removable
White Print 50 Degree Silicone Rubber Keypad Laser Engraved Non Removable
White Print 50 Degree Silicone Rubber Keypad Laser Engraved Non Removable
White Print 50 Degree Silicone Rubber Keypad Laser Engraved Non Removable
Specifications
Brand Name :
Wenyi Electronics
Model Number :
GPI-SCK-005
Certification :
SGS,RoHs,ISO9001
Place of Origin :
Made in China
MOQ :
500pcs/ lot
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, , Western Union, MoneyGram
Supply Ability :
0.5million / month
Delivery Time :
12-20 working days after mold
Packaging Details :
ploybag, carton box
Material :
Silicone
contact type :
carbon pill or metal dome
Print :
Laser engraved or as per request
treatment :
spray oil, laser engrave, high gloss oil， epoxy
Special Point :
Silicone keypad combine with mebrane switch
Rate :
Food grade Silicone
Description

White Print 50 Degree Silicone Rubber Keypad Laser Engraved Non Removable

Item decription:

Laser engraved unremoveable white print 50 degree Silicone Rubber Keypad

silicone Degree: 45~ 60 degreen

Silicone brand: Dow Corning

key process:Planting Color keys, engrave, Silk screen print, spray oil, Epoxy keys, Etc.

Product Characters

  1. Rasing, and Laser engrave treatment available
  2. Epoxy keys available
  3. color keys screen print are available
  4. Withstand millions of cycles
  5. Good Touch Feeling

Application

  1. * Medical Equipment
  2. * Telecommunications apparatus
  3. * Household appliances
  4. * Security systems
  5. * Various industry control keypad panel
  6. * Digital Control Devices.

Technical Specification:

Technical Data of Membrane switch
wire lead resistance: ＜1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0～30V DC Operation Temperature: -40℃～70℃
Rated Voltage: ＜50V, DC Operation Humidity: at40℃,＜98%RH
Insulation resistance: ＜100MΩ,250V DC Dome springback time: ＜5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Embossing type various kinds of embossing available,embossing height max 1.2mm
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
