Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
Specifications
Brand Name :
ACASOM
Model Number :
ACA-MAX2
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$750.00/sets
Payment Terms :
T/T, Western Union
Supply Ability :
1800 Set/Sets per Month
Delivery Time :
3-5 work days
Packaging Details :
As required
Type :
FPV Extender
Chipset :
Self designed PCBA
Supplier Type :
wholesale and engineering
Frequency Bands :
2.4GHz 5.8GHz
Application :
Home; Hospital
Frequency range :
2.4GHz
Voltage :
10W 20W
Receiving Gain :
16dB±1
Transmission Gain :
18dB±1
Max Output Power(P1dB) :
40dBm(10W)
Input Trigger Power :
Min:3dBm Max:20dBm
EVM :
3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Current Supply :
2.2A@Pout40dBm 12V
TX/RX Switch Time Delay :
<1 us
LED Indicator :
Transmitter: red; Receiver: Green
Port :
Shenzhen/Shanghai
Description

Product overview

Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range

1.Descriptions

Boost Your Flight 2.4GHz Drone Signal Booster For Extended Range

Enhance your drone flight experience! This 2.4GHz signal booster is specially designed to extend the signal range of drones, ensuring you get a more stable connection and clearer image transmission during long-range flights.

2.Product Specifications
No. Items 2.4G
1 Frequency range 1160MHz -1280MHz
2 Antenna gain 15db±1
3 Receiving gain 16dB±1
4 Transmission gain 18dB±1
5 Max Output Power(P1dB) 40dBm(10w)
6 Input Trigger Power Min:3dBm Max:23dBm
7 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure ＜2.5dB
9 Current Supply 2.2A@Pout40dBm 12V
10 TX/RX Switch Time Delay ＜1 μs
11 LED Indicator 4 Blue LED
12 Power Socket 2.5*0.7mm
13 Shell Material Aluminum

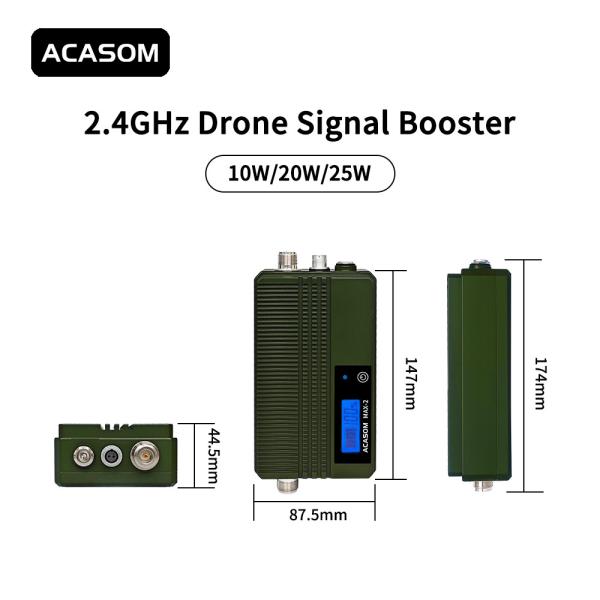

14 Shell Size 147*87.5*45.5(mm)
15 Battery 8000mah with type c

3.Product Advantages

  • Enhanced signal coverage Effectively expands the signal range of the drone in the 2.4GHz frequency band, reduces interference, and improves signal stability.
  • Easy to install Simple design, quick installation, no complicated settings, let you start flying as soon as possible.
  • High compatibility Suitable for a variety of drone models and FPV systems to meet the needs of different users.
  • Durability Use high-quality materials to ensure reliability and durability in various environments.
  • Aerial photography and surveillance Ensure signal stability and provide clear video feedback during important missions

4.Product details

Commercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended RangeCommercial 40dBm 10W Drone 2.4 Ghz Signal Booster For Extended Range
