10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender
Specifications
Place of Origin :
Guangdong, China
MOQ :
2 pieces
Price :
$850.00/pieces 2-99 pieces
Brand Name :
ACASOM
Payment Terms :
T/T, Western Union
Supply Ability :
3000
Delivery Time :
3-5 worker days
Type :
Gyroplane
Condition :
New
Year Built :
202302
Working frequency :
2.4-2.5GHz&5.15-5.85GHz
Output power :
10W
2.4G Rx Gain :
16dB
2.4G Tx Gain :
18dB
5.8G Rx Gain :
16dB
5.8G Tx Gain :
18dB
Power supply :
5-16V
Size :
230*146*39mm
Battery Capacity :
8000mAh
2.4G/5.8G Antenna Gain :
15dB/18dB
Shell Material :
Shell Material
Description

Product overview 10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender

1.Descriptions

10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender Amplifier
This 10W dual-band signal booster is specially designed for DJI drone series (such as Mavic, Phantom, Avata FPV), which can significantly improve flight control range and signal stability. Supporting 2.4GHz and 5.8GHz dual frequency bands, this booster extends the communication distance through powerful signal amplification function, allowing the drone to maintain a clear and stable signal connection during long-distance flights or complex environments. It is an ideal solution for enhancing drone performance in aerial photography, racing and remote operation missions.

2.Product Specifications

Number Items Specifications
1 Frequency Range 2400-2500MHz 5150-5850MHz
2 Max Output Power 40dBm(10W) 40dBm(10W)
3 AntennaGain 15dB±1 18dB±1
4 Battery Capacity 8000mAh
5 Receiving Gain 16dB±1 16dB±1
6 Transmission Gain: 18dB±1 18dB±1
7 Input Trigger Power Min:3dBm Max:23dBm Min:3dBm Max:23dBm
8 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9 Noise Figure <2.5dB <2.5dB
10 Current Supply 2.2A@Pout40dBm 12V 2.2A@Pout40dBm 12V
11 TX/RX Switch Time Delay
12 Charging Voltage 5V/2A
13 LED Indicator 4 Blue LED
14 Charging Port Type-c
15 RF Connector SMA-Female
16 Operating Temperature -40℃~+70℃
17 Storage Temperature -40℃~+150℃
18 Operating Humidity Up to 95% rel. humidity

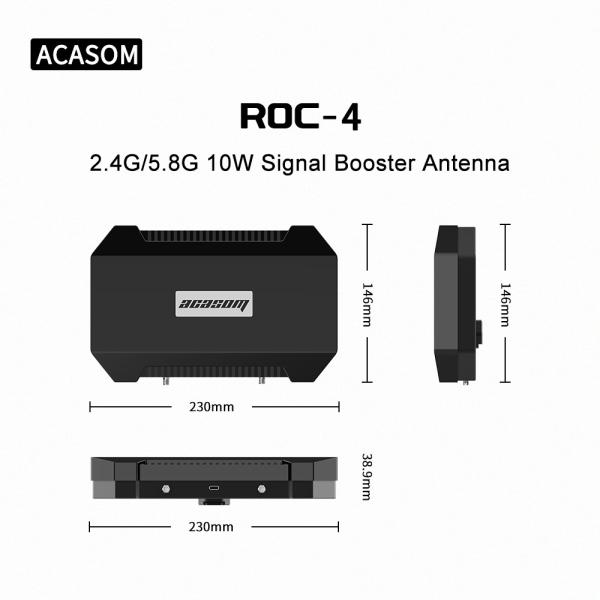

19 Shell Size 230*146*39(mm)
20 Shell Material Aluminum

3.Product Advantages

  • 10W high power output: With a powerful power output of 10W, it significantly improves the signal strength and control range of the drone, making it suitable for long-distance flight missions.
  • Dual-band support (2.4GHz & 5.8GHz) Supports both 2.4GHz and 5.8GHz frequency bands, allowing the drone to obtain enhanced signal transmission effects at different frequencies, reducing signal interference and improving flight stability.
  • Wide Compatibility This enhancer is compatible with a variety of DJI drone models, including Mavic, Phantom, Avata FPV, etc., and is suitable for a variety of application scenarios, such as aerial photography, racing, and surveillance tasks.
  • Enhanced remote communication and video transmission Significantly expands the control and video transmission distance of the drone, maintaining a stable connection even in long distances or complex environments, ensuring safe flight and efficient operation.
  • Lightweight design, easy to install. Lightweight design, easy to integrate and install, which will not increase the burden on the drone. It is very suitable for various flight tasks and improves the overall performance and operating experience of the drone.

4.Product details

10W Dual Band Signal Booster For DJI Drone Mavic Phantom Avata FPV Range Extender

ACASOM 2.4GHz&5.8GHz 10W Signal Booster/ Extender

Working Band: 2.4-2.5GHz&5.15-5.85GHz

Output Power: 10W(40dBm)*2

2.4GHz&5.8GHz 10W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel EVO2, skydio, Parrot and other drone, to make the flight range more than 15km.
