Specifications
Place of Origin :
Guangdong, China
MOQ :
2 pieces
Price :
$72.00/pieces 2-99 pieces
Brand Name :
ACASOM
Model Number :
Gyroplane
Payment Terms :
T/T, Western Union
Supply Ability :
3000
Delivery Time :
3-5 worker days
Type :
Gyroplane
Condition :
New
Year Built :
202302
Working frequency :
2.4-2.5GHz&5.725-5.85GHz
Output power :
4W
2.4G Rx Gain :
17dB
2.4G Tx Gain :
18dB
5.8G Rx Gain :
15dB
5.8G Tx Gain :
18dB
Power supply :
5-16V
Size :
65*62*12mm
Customized :
TX/RX gain
Description

5-16V Power Supply 4W Output Dual Band DJI Drone Range Extender Signal Booster

Product overview

Dual Band DJI Drone Wifi Extender 5-16V Power Supply 4W Output

1.Descriptions

5-16V Power Supply 4W Output Dual Band DJI Drone Range Extender Signal Booster

This dual-band 4W output signal booster powered by 5-16V power supply is specially designed for DJI drones. It can significantly expand the control range and enhance the strength and stability of communication signals. The signal booster supports 2.4GHz and 5.8GHz frequency bands and is suitable for various flight missions and long-distance communication needs. It adopts a wide voltage power supply design (5-16V), which allows it to be flexibly adapted to various power supply systems and is very suitable for outdoor applications and long-distance flight operations of drones.

2.Product Specifications

Number

Items

Specifications

1

Frequency Range

2.4-2.5GHz

5.725-5.85GHz

2

Operating Voltage

5-16V

5-16V

3

ReceivingGain

17dB±1

15dB±1

4

Transmission Gain:

18dB±1

18dB±1

5

Max Output Power(P1dB)

36dBm(4W)

36dBm(4W)

6

Input Trigger Power

Min:3dBm Max:20dBm

Min:3dBm Max:20dBm

7

EVM

3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz

8

Noise Figure

<2.5dB

<2.5dB

9

Current Supply

580mA@Pout 28dBm 12V

580mA@Pout 28dBm 12V

10

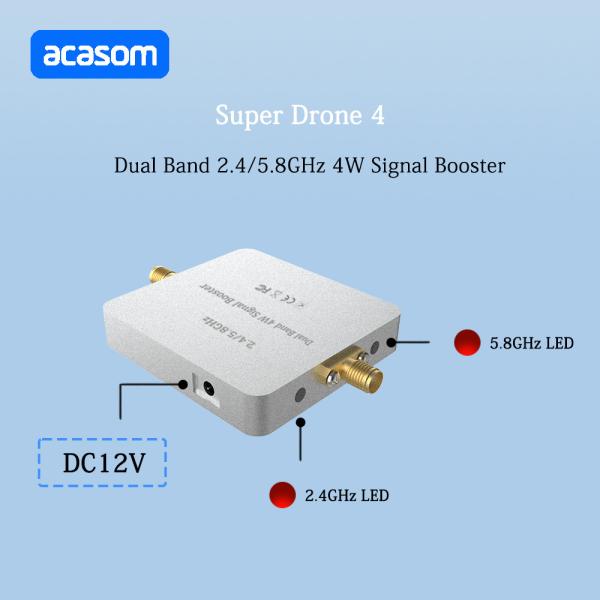

LED Indicator

Transmitter: Green; Receiver: red

11

Power Socket

2.5*0.7mm

12

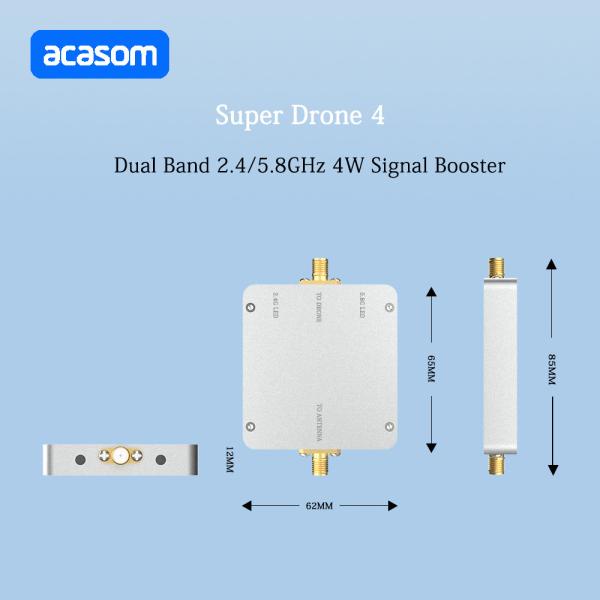

Shell Size

65*62*12mm

13

Net Weight

0.1Kg

3.Product Advantages

  • Wide voltage power supply (5-16V) The signal booster supports a voltage input range of 5V to 16V, providing greater power supply flexibility and being able to adapt to different power supply configurations, making it easy to integrate in various application scenarios.
  • High power output (4W) The amplifier has an output power of 4W, which can significantly improve signal coverage and transmission strength, ensuring that the drone can maintain stable control and communication when flying over long distances.
  • Dual-band support (2.4GHz & 5.8GHz) Supports both 2.4GHz and 5.8GHz frequency bands, which improves the flexibility and stability of DJI drone communication, adapts to different environments and needs, reduces signal interference, and enhances flight safety.
  • Long-distance control and signal enhancement This device can greatly expand the control range of the drone and ensure stable signal transmission even at long distances or in complex terrain. It is an ideal tool for long-distance flights and high-altitude shooting.
  • Rugged and durable, suitable for outdoor use. The signal booster adopts a rugged design and has excellent weather resistance and anti-interference capabilities. It is suitable for the harsh requirements of outdoor environments and ensures that the drone can successfully complete its mission in various weather conditions.

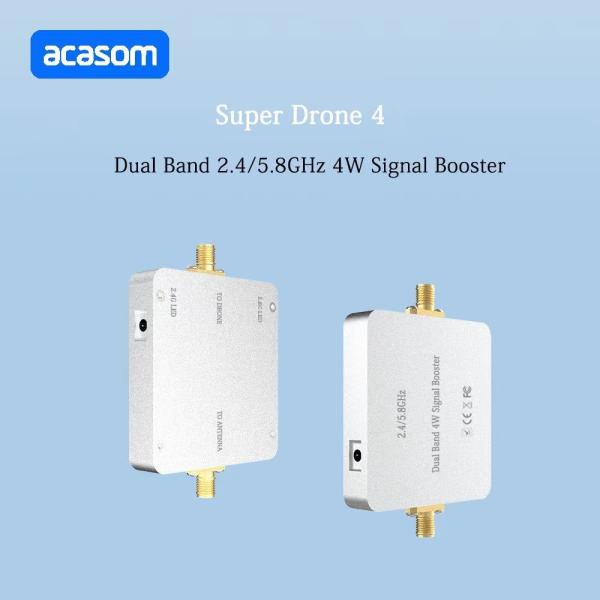

4.Product details

Dual Band DJI Drone Wifi Extender 5-16V Power Supply 4W Output

ACASOM 2.4GHz&5.8GHz 4W Signal Booster/ Extender

Working Band: 2.4-2.5GHz&5.725-5.85GHz

Output Power: 4W(36dBm)

Dual Band DJI Drone Wifi Extender 5-16V Power Supply 4W Output

2.4GHz&5.8GHz 4W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel EVO2, skydio, Parrot and other drone, to make the flight range more than 10km.
