2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting
Specifications
Model Number :
ACA-PA2404S
Place of Origin :
Guangdong, China
Brand Name :
ACASOM
Packaging Details :
As required
Supply Ability :
20000 Set/Sets per Month
Price :
$72.00/sets 1-99 sets
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
3-5 worker days
Type :
RF Module
Chipset :
Self designed PCBA
Supplier Type :
wholesale and engineering
Application :
Home; Hospital
Frequency range :
2400-2500MHz 5725-5850MHz
Voltage :
5-16V
Receiving Gain :
17dB±1
Transmission Gain :
17dB±1
Max Output Power(P1dB) :
36dBm(4W)
Input Trigger Power :
Min:3dBm Max:20dBm
EVM :
3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Current Supply :
540mA@Pout 28dBm 12V
TX/RX Switch Time Delay :
<1 us
LED Indicator :
Transmitter: red; Receiver: Green
Port :
Shenzhen/Shanghai
Description
Product overview

2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting

1.Descriptions

2.4GHz and 5.8GHz Dual Channel Frequency Amplifier for Dual Band Bidirectional Boosting

A 2.4GHz and 5.8GHz Dual Channel Frequency Amplifier designed for dual-band bidirectional boosting enhances both transmission and reception signals across two frequency bands, improving the communication range and stability of devices like drones, Wi-Fi routers, or other RF systems.

2.Product Specifications

In-built 8000mah Dual band integrated wireless remote controller
No. Items 2.4G 5.8G
1 Frequency range 2400MHz-2500MHz 5.725-5.85GHz
2 Operating Voltage 5-16V 5-16V
3 Receiving gain 17dB±1 15dB±1
4 Transmission gain 18dB±1 18dB±1
5 Max Output Power(P1dB) 36dBm(4w) 36dBm(4W)
6 Input Trigger Power Min:3dBm Max:20dBm Min:3dBm Max:20dBm
7 EVM 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz 3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure ＜2.5dB <2.5dB
9 Current Supply 540mA@Pout 28dBm 12V 580mA@Pout 28dBm 12V
10 TX/RX Switch Time Delay ＜1 μs ＜1 μs
11 LED Indicator Transmitter: red; Receiver: Green Transmitter: red; Receiver: Green
12 Power Socket 2.5*0.7mm 2.5*0.7mm
13 Shell Material Aluminum Aluminum
14 Shell Size 64*35*13(mm) 64*35*13(mm)
15 Net Weight 0.15Kg 0.15Kg

3.Product Advantages

  • Dual-Band Support (2.4GHz and 5.8GHz) These are common frequencies used in many wireless communication systems, including Wi-Fi, drones, and radio communication. Supporting both bands provides flexibility in choosing the best frequency for the environment to avoid interference.
  • Bidirectional Amplification The amplifier enhances both outgoing and incoming signals, boosting the transmission power from the device to the receiver and amplifying incoming signals for clearer reception. This ensures stable, long-range communication in both directions.
  • Significant Signal Boost Increases the range and performance of your device by amplifying the signal strength significantly, ensuring better connectivity and reducing the chances of signal dropouts, particularly in challenging environments like urban areas or remote locations.
  • High Power Output The amplifier typically operates at high power levels (e.g., 10W), which helps extend communication distances. This can be particularly useful for drones, extending their operational range while maintaining strong control and video links.
  • Compatible with Various Devices Designed for drones, Wi-Fi systems, remote control systems, or any device that operates on the 2.4GHz and 5.8GHz bands, this amplifier can significantly enhance performance in congested areas or places with weak signals.

4.Product details

2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting

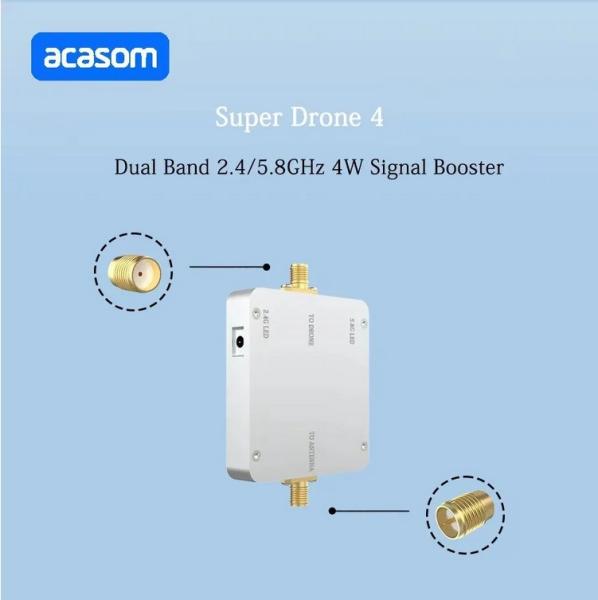

ACASOM 2.4GHz&5.8GHz 4W Signal Booster/ Extender
Working Band: 2.4-2.5GHz&5.725-5.85GHz
Output Power: 4W(36dBm)

2.4GHz 5.8GHz Dual Frequency Drone Amplifier For Dual Band Bidirectional Boosting

2.4GHz&5.8GHz 4W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel
EVO2, skydio, Parrot and other drone, to make the flight range more than 10km.

2.4GHz&5.8GHz 4W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel
EVO2, skydio, Parrot and other drone, to make the flight range more than 10km.
