Specifications
Brand Name :
ACASOM
Model Number :
ACA-MAX2
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$750.00/sets
Payment Terms :
T/T, Western Union
Supply Ability :
1800 Set/Sets per Month
Delivery Time :
3-5 work days
Packaging Details :
As required
Type :
FPV Extender
Chipset :
Self designed PCBA
Supplier Type :
wholesale and engineering
Frequency Bands :
5.2GHz
Application :
Home; Hospital
Frequency range :
5.2GHz
Voltage :
10W 20W 25W
Receiving Gain :
16dB±1
Transmission Gain :
18dB±1
Max Output Power(P1dB) :
40dBm(10W)
Input Trigger Power :
Min:3dBm Max:20dBm
EVM :
3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Current Supply :
2A
TX/RX Switch Time Delay :
<1 us
LED Indicator :
Transmitter: red; Receiver: Green
Port :
Shenzhen/Shanghai

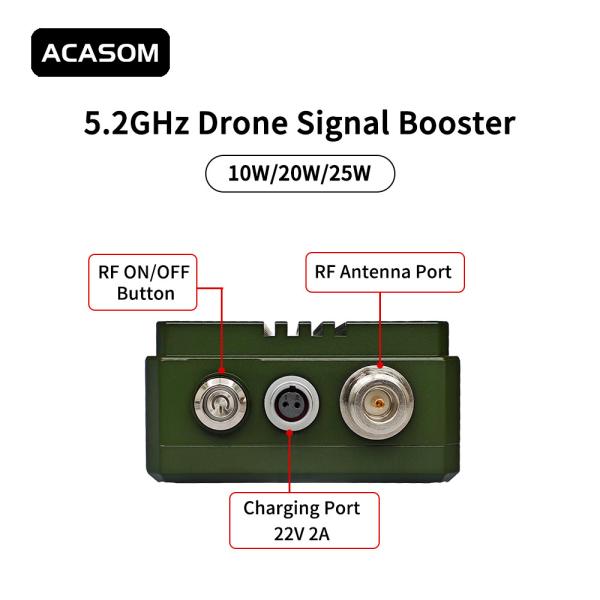

Charging Port :
22V
Battery :
8000mah with type c
Description

Ultimate Guide To Drone Signal Boosters From 900MHz To 5.8GHz

Product overview

MAX-2 Outdoor 10W 5.8 GHz Signal Amplifier With Tarot 5.8G Image Transmission
1.Descriptions

MAX-2 Outdoor 5.8GHz 10W Signal Amplifier | Boost Your Range with Tarot 5.8G Image Transmission

Signal stability and strength are critical in drone flight. This guide will take an in-depth look at 1200MHz to 5.8GHz drone signal boosters to help you choose the right device to improve flight performance and ensure the best signal connection in a variety of environments.

2.Product Specifications
No. Items 5.8G
1 Frequency range 5800MHz
2 Antenna gain 15db±1
3 Receiving gain 16dB±1
4 Transmission gain 18dB±1
5 Max Output Power(P1dB) 40dBm(10w)
6 Input Trigger Power Min:3dBm Max:23dBm
7 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure ＜2.5dB
9 Current Supply 2.2A@Pout40dBm 12V
10 TX/RX Switch Time Delay ＜1 μs
11 LED Indicator 4 Blue LED
12 Power Socket 2.5*0.7mm
13 Shell Material Aluminum

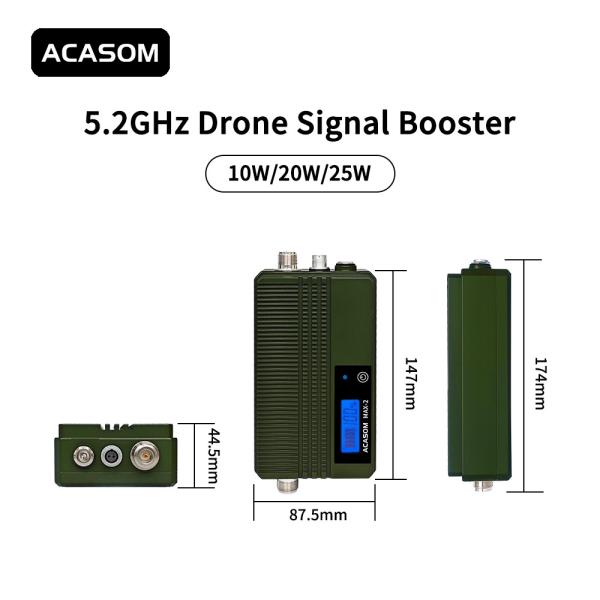

14 Shell Size 147*87.5*45.5(mm)
15 Battery 8000mah with type c

3.Product Advantages

  • Multi-band support Provides wide support from 900MHz to 5.8GHz to meet the needs of different types of drones and operating scenarios.
  • Improve signal strength Effectively enhance the signal transmission capability to ensure a strong connection during long-distance flight.
  • Reduce interference Use advanced anti-interference technology to reduce interference from other wireless signals and ensure signal clarity and stability.
  • Easy to install Most signal boosters are designed to be simple for users to quickly install and configure without professional knowledge.
  • Improve flight experience Provide more stable control and real-time video transmission, improve drone control experience, and reduce delays and distortion.

4.Product details

MAX-2 Outdoor 10W 5.8 GHz Signal Amplifier With Tarot 5.8G Image TransmissionMAX-2 Outdoor 10W 5.8 GHz Signal Amplifier With Tarot 5.8G Image Transmission
