5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
Specifications
Model Number :
ACA-PA5804S
Place of Origin :
Guangdong, China
Brand Name :
ACASOM
Packaging Details :
As required
Supply Ability :
20000 Set/Sets per Month
Price :
$58.00/sets 1-19 sets
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
3-5 worker days
Type :
RF Module
Chipset :
Self designed PCBA
Supplier Type :
wholesale and engineering
Application :
Home; Hospital
Frequency range :
5725-5850MHz
Voltage :
6-18V
Receiving Gain :
17dB±1
Transmission Gain :
17dB±1
Max Output Power(P1dB) :
37dBm(5W)
Input Trigger Power :
Min:3dBm Max:20dBm
EVM :
3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Current Supply :
640mA@Pout 28dBm 12V
TX/RX Switch Time Delay :
<1 us
LED Indicator :
Transmitter: red; Receiver: Green
Port :
Shenzhen/Shanghai
Description
Product overview

5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range

1.Descriptions
5w Power 5.8GHz Wifi Signal Booster Range Extender for 5.725-5.85GHz Frequency Range
A 5W Power 5.8GHz Wi-Fi Signal Booster designed for the 5.725-5.85GHz frequency range is an ideal solution for significantly extending the range and strength of Wi-Fi signals operating in the 5.8GHz band. This device is particularly suited for applications where high-speed, long-distance wireless communication is necessary, such as Wi-Fi networks, drones, and wireless video transmission systems.
2.Product Specifications
No. Items Specifications
1 Frequency range 5725MHz-5850MHz
2 Operating Voltage 6-18V
3 Receiving gain 17dB±1
4 Transmission gain 17dB±1
5 Max Output Power(P1dB) 37dBm(5w)
6 Input Trigger Power Min:3dBm Max:20dBm
7 EVM 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure ＜2.5dB
9 Current Supply 640mA@Pout 28dBm 12V
10 TX/RX Switch Time Delay ＜1 μs
11 LED Indicator Transmitter: red; Receiver: Green
12 Power Socket 2.5*0.7mm
13 Shell Material Aluminum

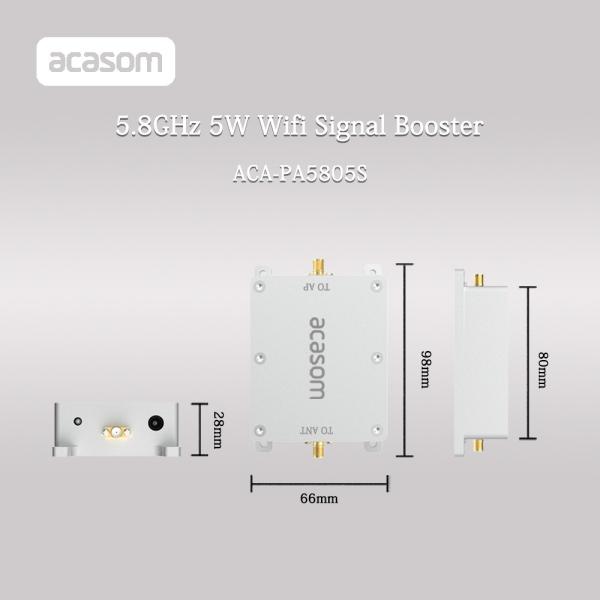

14 Shell Size 98*66*28(mm)
15 Net Weight 0.25Kg

3.Product Advantages

  • 5W Power Output The booster has a 5W (watts) output power capacity, which greatly enhances the transmission strength of Wi-Fi signals. This enables much larger coverage areas, making it suitable for extending the range of high-speed Wi-Fi networks in homes, offices, or outdoor spaces.
  • 5.725-5.85GHz Frequency Range Operating within the 5.725-5.85GHz band, this booster targets the 5.8GHz frequency spectrum, which is typically used in modern Wi-Fi networks, drones, and other high-speed wireless devices. The 5.8GHz frequency provides faster data transmission but typically has a shorter range, which this booster helps mitigate by extending signal reach.
  • Wi-Fi Range Extender This device functions as a range extender, amplifying the existing 5.8GHz Wi-Fi signal from a router, drone controller, or other wireless devices. By boosting the outgoing and incoming signals, it increases the coverage area and strengthens connectivity over greater distances.
  • Bidirectional Amplification The signal booster supports bidirectional amplification, meaning it amplifies both the transmitting and receiving signals. This is crucial for maintaining strong and reliable connections, especially in environments where signal loss or interference is common.
  • Low Noise Amplifier (LNA) Equipped with a low noise amplifier (LNA), the booster minimizes noise interference during signal amplification, preserving the quality of the Wi-Fi signal and ensuring that it remains clear and stable over longer distances.

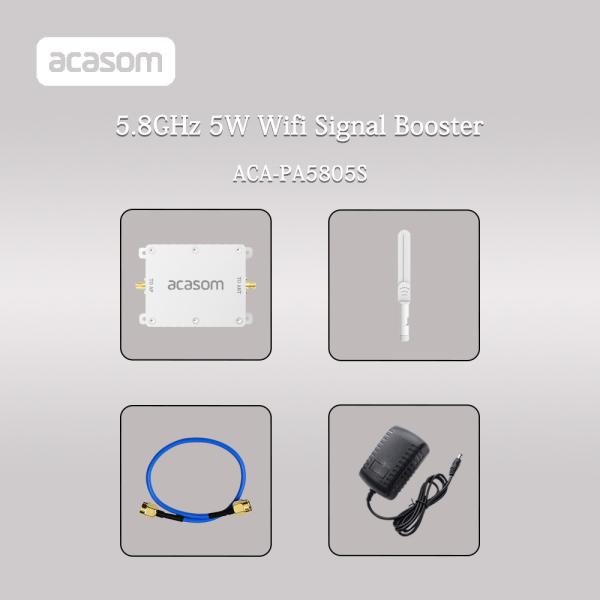

What includes if you order this?
1PCS* 5.8GHz Booster

1PCS*5.8GHz 5dBi Antenna

1PCS*12V 1A EU/AU Adapter

1PCS* RG402 Blue Cable (20CM)

4.Product details
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range

2.4GHz bias tee
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range

2.4Ghz 20w drone booster
5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range

5.8GHz 5W Signal Booster FOR WiFi6
Frequency:5.725GHz-5.85GHz
RX Gain: RX=17
TX Gain: TX=17

Connector Type:SMA or N

5w 5.8GHz Signal Booster Range Extender For 5.725-5.85GHz Frequency Range
Applications
IEEE 802.11 a/n/wifi6 WLAN System
Wireless Cameras Signal Extender
Drone Signal Extender
Features
50X the power, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and installing, no software is required
