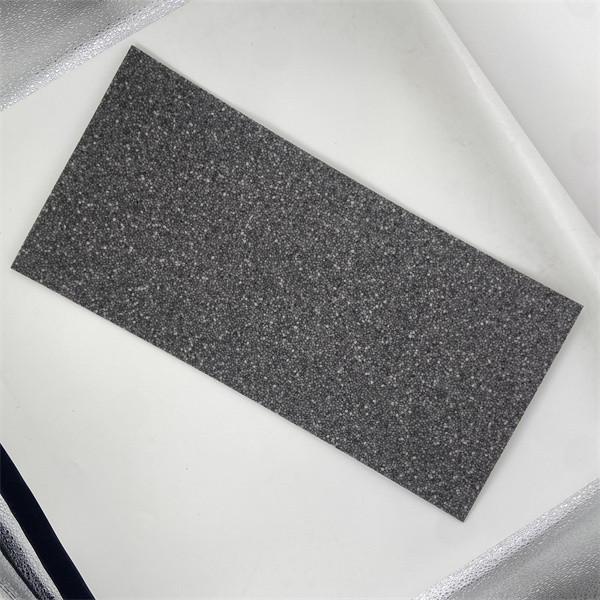

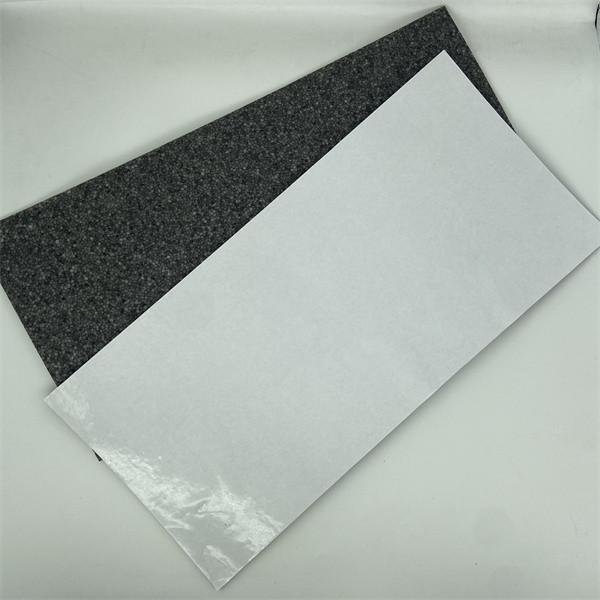

Battery Thermal Management System Acoustic Insulation Sheet Smooth Surface
Battery Thermal Management System Acoustic Insulation Sheet Smooth Surface
Battery Thermal Management System Acoustic Insulation Sheet Smooth Surface
Battery Thermal Management System Acoustic Insulation Sheet Smooth Surface
Specifications
Brand Name :
FQ
Model Number :
EPP 01
Certification :
IATF16949
Place of Origin :
China
MOQ :
Customized
Price :
Fuzhou Fuqiang Precision Co.,Ltd.
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1000pcs/day
Delivery Time :
1000 pcs/ days
Packaging Details :
pp bag+Cartons
Application :
Solar System,EV,Power Bank,E-bike,home use/solar system/energy store
Size :
Prismatic
Product name :
Battery energy system,batteries lithium ion high capacity,Battery Management System
Surface :
Smooth Surface
Packing :
Carton, pallet, loose load
Color :
Customized
Description

Battery Thermal Management System Compressive Pad Close Cell Foam Acoustic Insulation Expanded Polystyrene Foam

Description
EPP is one kind of closed-cell foam material that requires a very precise and complex manufacturing process, with highly specialized custom-made equipment operated by seasoned professionals. The material can be shaped into many different formats and sizes, and molds are often used, depending on the desired outcome. The material is porous, consisting of several polypropylene beads. They let air pass through the beads, helping with acoustic insulation and weight reduction as well. Because of its versatility, it is highly sought-after in various industries, from constructions to shipping, and more. EPP is an excellent and cost-effective material for thermal insulation, and its high buoyancy makes it resistant to water and other chemicals. If this wasn’t enough, EPP foam is also quite sturdy, and it is completely sustainable since it can be recycled.
EPP is a popular material in the shipping industry, and it is meant to protect the contents of boxes and packages. In this application, it is often found in white. However, other colors are also common, particularly black, especially when it comes to industrial and automotive applications.
Features
  • Industrial packaging
  • Automotive parts
  • Logistics and wrapping
  • Shipbuilding
  • Food preservation
  • Waterproofing
  • Lightweight constructions
  • Furniture and design
  • Suitable for a wide range of foam fabrication processes

Specification

The main performance parameters are shown in Table

Physical Properties
ITEMS TEST METHOD UNITS TESTED DENSITIES
g/l
EPP density range, 20 g/l ~ 200 g/l
Tensile strength ISO 1798 DIN 53571 kPa (kPa) 270 to 1930
Tensile elongation (%) ISO 1798 DIN 53571 % 21 to 7.5
Compressive strength (kPa) ISO 844 kPa
25% strain DIN 53421 80 to 700
50% strain Test speed 150 to 960
75% strain 5 mm/min 350 to 2300
Compression set (%)
25% strain,		 ISO 1856 C Stabilizing 24H % 22H, 23°C 13.5 to 10.5
Burning rate (mm / min) FMVSS 302
ISO 3795
sample thickness
12.5 mm		 mm/min 100 to 12
Application
EPP is widely utilised by automotive manufacturers because of its performance benefits for energy management, lightweight, enhanced functionality, durability and recyclability. Applications include seating, bumpers, stowage systems, door panels, pillars, floor levellers, parcel shelves, headrests, tool kits, sun visors and myriad filler parts.
Reusable industrial packaging, known as dunnage, is frequently made from EPP due to its durability and its inherent ability to absorb energy in transit. EPP is used increasingly in furniture, toys such as model aircraft and other consumer products due to its versatility as a structural material and its lightweight, as well as other performance characteristics. appro colour range
EPP is approved for use in conjunction with food products. Its thermal insulation properties and structural strength make it appropriate for containers such as food delivery containers and beverage coolers and the like. EPP does not support microbial growth and can be made sterile with steam cleaning.
Package & Delivery
Battery Thermal Management System Acoustic Insulation Sheet Smooth Surface
