prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
Specifications
Applicable Industries :
Hotels, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Condition :
New, new
Temperature :
-45C~+20C
Place of Origin :
Jiangsu, China
Brand Name :
HUGECOOL
Voltage :
220V/380V
Power :
Depends
Dimension(L*W*H) :
customized for Modular Cold Storage, As per your requirements
Weight :
5000 KG
Warranty :
3 years, 1 year
Key Selling Points :
Easy to Operate
Compressor brand :
Bitzer
Panel Thickness :
75mm,100mm,120mm,150mm,200mm
Cooling Capacity :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine
Usage :
Freezer
Feature :
Container
Product name :
Modular cold storage
After-sales Service Provided :
Engineers available to service machinery overseas
Surface material :
color steel or stainless steel or aluminum
panel thickness :
50mm 75mm 100mm 120mm 150mm 180mm 200mm
door type :
hinged door, sliding door, standard return door
temperature :
-45C to 20C
Functions :
Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof,
Packaging Details :
Modular Cold Storage Room For Frozen Fish
plywood box with pallet package
Port :
Qingdao or Shanghai for prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
Supply Ability :
300 Meter/Meters per Week Modular Cold Storage
Price :
$10,000.00/sets 1-99 sets
Description

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable

Description

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
  • Size: customized
  • Temperature: -45C to 20C
  • Refrigeration units: Bitzer, Copeland, Tecumseh, Carrier compressor are all available
  • Door type: hinged door, sliding door and return door are all available
  • Panel thickness: 50mm 100mm 150mm 180mm and 200mm are all available
  • Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.

CONTACT US

Specification

Sizes of Panel

Length(m)

less than 30m

Width(mm)

960mm

Thickness(mm)

50, 75 ,100 ,120 ,150 ,200mm

Heat Conductivity(W/mk)

0.022

Compressive Strength(N/cm2)

more than 196

Tensile Strength (N/cm2)

more than 24.5

Bending Strength (N/cm2)

more than 24.5

Water Absorption(g/100cm2)

3

Flame Resistance

(only for panels added flame retardant agent)

Self-extinguishing within 3 seconds after taking away flame

Material of covering steel

Color painted steel

Stainless steel

Galvanized steel

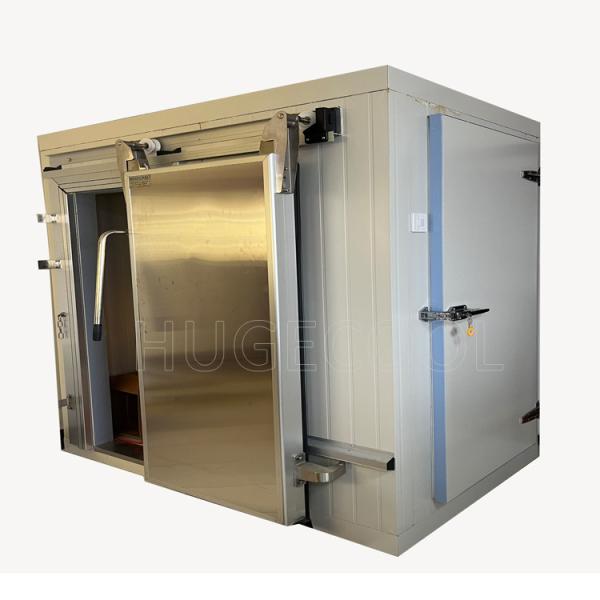

Product show

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable

Features and advantages

1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.

2.Easier and faster installation,can be expended or removed in the future.

3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.

4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.

5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable

FAQ

1.What's your MOQ for this model?

Our MOQ is 1 set for this model

2.What's your delivery time?

20 to 30 working days after down-payment confirmation.

3. What's your payment term?

L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).

prefabricated Modular cold storage for chicken meat and fresh fruits vegetable
