Specifications
Place of Origin :
Shandong, China (Mainland)
Brand Name :
HUGECOOL
Certification :
Other, CE
Supply Ability :
300 Set/Sets per Month Unit Cooler Evaporator For Cold Storage Room
Packaging Details :
Unit Cooler Evaporator For Cold Storage Room by plywood box with pallet package
MOQ :
1 Unit/Units
Price :
$230.00 - $1,200.00 / Units
Voltage :
220V/380V
Function :
Air Conditioner Terminal Unit
keywords :
Evaporative Cooler
Condition :
New, New
Port :
Shanghai port for Unit Cooler Evaporator For Cold Storage Room
Approval :
Other, CE
Description

Unit Cooler Evaporator For Cold Storage Room

The description of air evaporator

Advantages:

D series air coolers include DL, DD, DJ types and are applied in all ranges of cold room due to compact structure, lightweight, space saving. Compared to the normal flow unit cooler, it can rapidly fast cool down temperature and greatly improve products freshness.

1. Compact structure and light weight

2. Low energy consuming and high working efficiency

3. Less maintenance &Low cost

4. Rapid temperature falling and long preservation time.

According to the applicable temperature, DL type is suitable for cold storage with temperature at 0℃,such as the preservation for fresh eggs, vegetables fruits and teas. DD type is adapted for cold storage at temperature around -18℃, as the refrigeration for frozen meat and fish. DJ type is applied to cold room at -25℃ or under -25℃ for freezing fresh meat and fish.

Model Ref. capacity
(kw)		 Cooling area
(m²)		 Space of fins Fan Water Defrost
Qty Dia.(mm) Air volume(m3) Pessure(pa) Power
(nxW)		 Voltage
(V)		 Water volume Water inlet
(inch)		 Water outlet
(inch)
DD-12.0/60 12.0 60 6 2 500 2x6000 147 2x550 380 1.5 G1 1/2 G2 1/2
DD-15.9/80 15.9 80 2 500 2x6000 167 2x550 2.0
DD-20.0/100 20.0 100 3 500 3x6000 167 3x550 2.4
DD-24.0/120 24.0 120 3 500 3x6000 167 3x550 2.8
DD-28.0/140 28.0 140 4 500 4x6000 167 4x550 3.2
DD-32.1/160 32.1 160 4 500 4x6000 167 4x550 3.7
DD-37.4/200 37.4 200 2 600 2x10000 200 2x1500 4.4 G2 G3
DD-46.8/250 46.8 250 3 600 3x10000 200 3x1500 5.8
DD-56.2/310 56.2 310 3 600 3x10000 200 3x1500 6.1

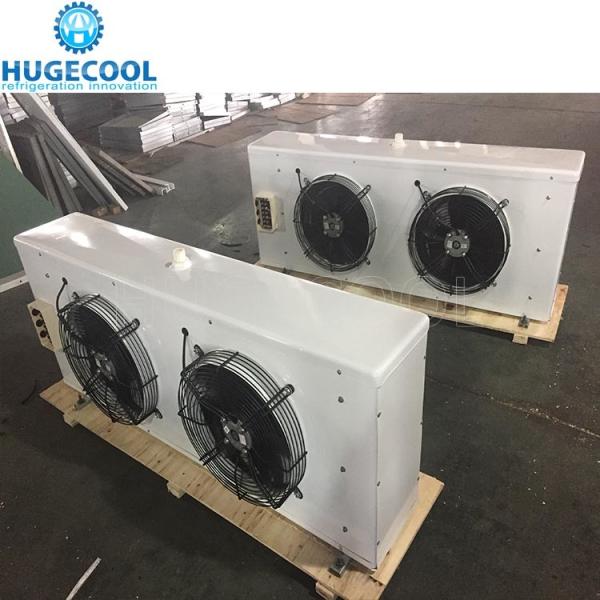

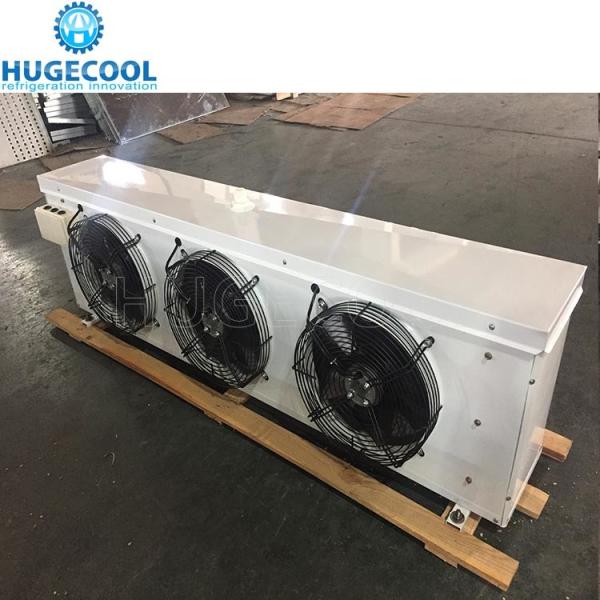

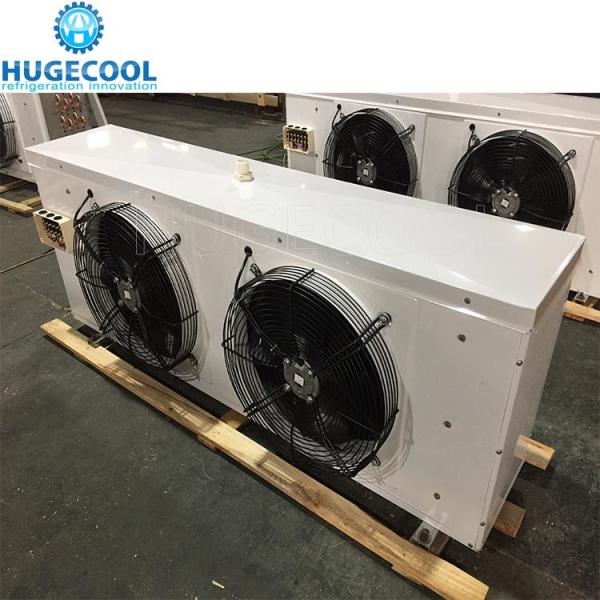

Pictures of air evarator

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room

Feature

1. Made of steel plate, the surface coating, corrosion resistance.

2. With beatuiful appearance

3. With excellent heat exchange effect

4. Water frosting to ensure quick defrosting.

Application

1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.

2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.

3.DD apply to -18°C cold room, storage meat, fish.

4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room

FAQ

1.What's your MOQ for this model?

Our MOQ is 1 set for this model

2.What's your delivery time?

20 to 30 working days after down-payment confirmation.

3. What's your payment term?

L/C at sight or T/T(Down-payment 30%,balance before delivery).

Energy Saving Cold Room Air Cooler 220V/380V For Cold Storage Room
