Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
Specifications
Brand Name :
ZHIYIN
Model Number :
DG-100
Place of Origin :
China
MOQ :
1set
Price :
USD/Negotiate price/Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1set/Month/Set
Packaging Details :
FCL transport package
Name :
Vacuum freeze drying machine
Function :
Food Vegetable Fruit Dehydrator
Dimension :
5600*2000*3500mm
Weight :
1000kg
Dry Area :
1.08 square meter
Compress air(M³/min) :
0.1(6-8bar)
Warranty of core components :
1 year
Condenser Max Temperature :
-75℃
Description
High Value Automatic Sublimation Condensation Dryer Freeze Drying Machine
Please contact us about how to place an order:
Contact Person: Mrs. Lisa
Job Title: Manager
Business Phone: 086 15249674563
WhatsApp: 086 15249674563
WeChat: 086 15249674563
Skype: 086 15249674563
Email: Sale@frenchfriesline.com/Lisa@frenchfriesline.com

Introduction of freezing drying machine

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.
Feature of freezing drying machine

1. Most of the hot air is circulated in the herbs dehydration machine.By using the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.

2. Heating source: electricity, steam, far infrared of steam and electricity.

3. Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C. Electricity heat 50-350°C.

4. Automatic control system and computer control system for your choice

Specification of freezing drying machine

Power
167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function
19.8kw
Refrigeration function
92kw
Heating function
55.5kw
Compressed air
≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity
≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
Defrost water Quantity
≥4000kg(T≥30℃,P=0.1-0.2Mpa)
Whole volume(L×W×H)
Dry chamber and Condenser:
D=φ2100mmL=6650mm
Freeze system vacuum system control system:
L=2600mm W=2200mm H=2000mm
Final dimension based on design
Structure
Split
Total weight
15T(Approx.)

Food freeze drying equipment vegetable fruit slices vacuum freeze dryer machine

Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
Working principle of freeze dry:
The vacuum freezing and drying machine is a drying method which can sublime the moisture in hydrous materials from solid state to gas state, under low temperature freezing and vacuum condition, after the materials are subjected to the pre-treatment, so as to remove the moisture and preserve the materials.

Details of our freeze dryer:

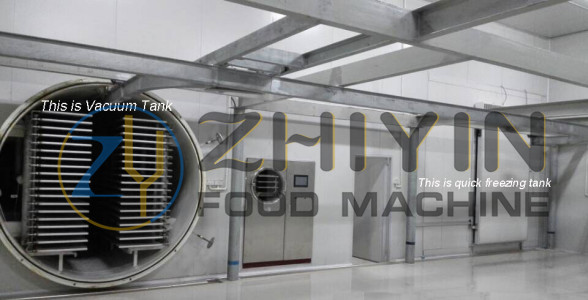

Chamber: The chamber will be horizontal parallelepiped or cylindrical design, in which the shelf package is located, with all the edges and corners rounded off to facilitate cleaning, as specified by CGMP. It is designed for high vacuum application as well as to withstand overoressure during steam sterilization.

Door: The door is clad in polished stainless steel AlSI 316L, roughness of average less than 0.5um, to provide a clean smooth finish. Door sealing with a T-shaped or O-shaped solid single silicone or fluorine material with air-release free gasket designed for high vacuum and overpressure operation placed in the chamber frame

Professional customer service:
Pre-sale:
* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech-info will also be provided for you.
* We can do sample test for customers.
After-sale:
* If possible, please do come to our factory and we will teach workers the whole process of freeze drying. The most appropriate time needed for freeze drying will be tested by us.
* We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service.

Automatic Sublimation Condensation Dryer Split Vegetable Fruit Dehydrator
