Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Fully Automatic Extruded Corn Flakes Equipment 400kg/H
Specifications
Brand Name :
MT
Model Number :
MT-65/70/70C/75
Certification :
CE
Place of Origin :
jinan
MOQ :
1 set
Price :
USD 10000-50000
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
10sets/month
Delivery Time :
10-50days
Packaging Details :
plastic/wooden box/nude
Voltage :
380V/50HZ
Warranty :
One Year
After-sales service provided :
Engineers available to service machinery overseas
Power(w) :
90kw
Weight :
9000kgs
Application :
corn flakes
Name :
breakfast cereal machine
Capacity :
100-500kg/h
Material :
Stainless Steel
Condition :
New
Type :
electric and automatic
Raw material :
Corn Flour
Usage :
Corn Flakes
Feature :
Low Energy High Speed
Description

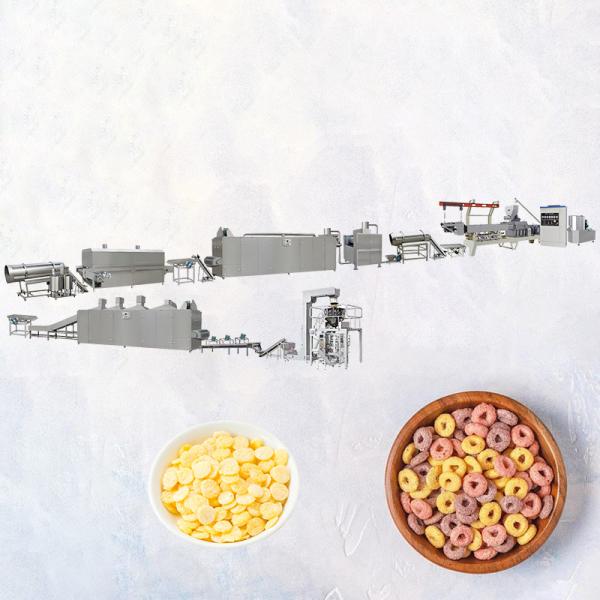

Extruded Food Corn Flakes Equipment Production Line
Product Description
1.Extruded Food Corn Flakes Equipment Production Line adopts corn, rice, wheat, oat, barley etc as ingredients to make Extruded Food Corn Flakes Equipment Production Line . Through friction of screw and barrel, the grains are cooked in the extruder Barrel. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
--Frequent speed controlling with high automation.
--Durable stainless steel and special craft.
--The forced lubrication system ,which can guarantee the equipment transmission life longer.
--Auto-temperature control system and self-cleaning.
--It has the widest range of applications and can produce different products with different equipment and models.
Specification
Model
Installed power
Real power
Output
Dimension
MT-65
84kw
59kw
120-150kg/h
21000x1200x2200mm
MT-70
132kw
92kw
200-250kg/h
23000x1500x2200mm
MT-85
239KW
167KW
300-400kg/h
28000*3500*4300mm
MT-75
186KW
140KW
400-500kg/h
24000*1500*2800mm
Mixer--Single screw extruder--Dryer machine
Flour Mixer

Technical Parameter:

Power: 4kw
Capacity: 20kg/batch
Dimension: 1050*750*1300mm

Function: This machine is used to mix the powder raw material.

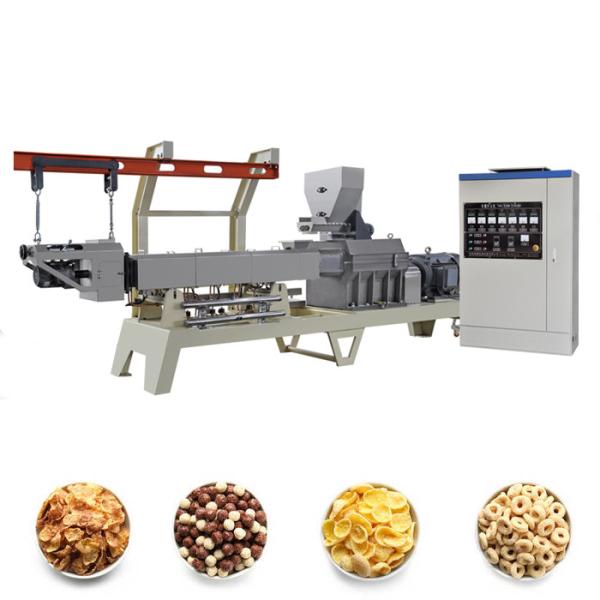

Twin screw extruder
Function:
To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Material:
stainless steel, carbon steel
Motor:22kw
Capacity:100-150kg/h

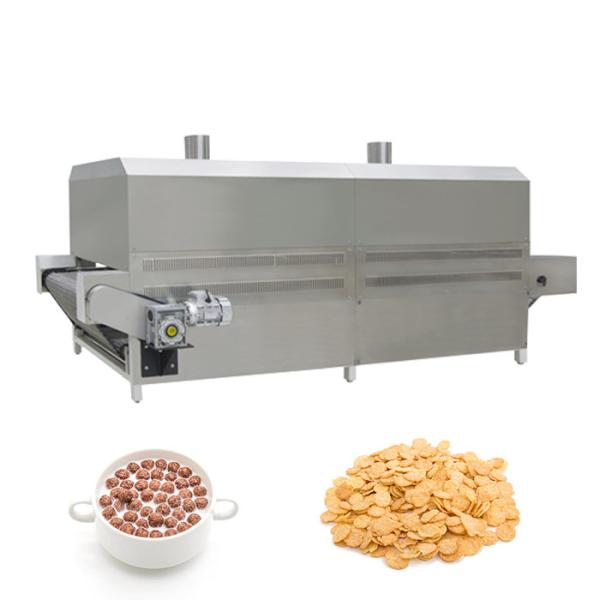

Dryer machine
Voltage : 380V, 50Hz
Dimension :5000X1300X2600mm
The oven is used to dry the products. The moister in the food which come out of the extruder is about 30-35%. With the dry of the dryer, the moister can get down below 16%and this is easy to be storage for long time.
Product Details
Sample Show
1.Raw materials for CE Certification Industrial Snack Food Extruder Corn Flakes Making Machine:
Adopts corn, rice, wheat, oat, barley, millet, sorghum etc as main ingredients.
Other material: salt sugar powder, flavor material, cocoa powder and so on….
2.CE Certification Industrial Snack Food Extruder Corn Flakes Making Machine Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Company Profile
Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have
well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year..
Packing & Delivery
1.Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finally pack themwith wooden case.

2.Customer's special packing requirement is available.
Credential
We can provide the electronic edition certificates for Extruded Food Corn Flakes Equipment Production Line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.
Services & Customer

1. Free consultation service before, during, and after sales;

2. Free project planning and design services;

3. Free online debugging of equipment until everything is functional;

4. Free management of equipment long distance shipping from seller's factory to place by the buyer;

5. Free training of equipment maintenance and operating personally in the seller's factory;

6. Free new production techniques and formulas;

7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
As a professional Extruded Food Corn Flakes Equipment Production Line ,Jinan MT MACHINERY & EQUIPMENT Co,.Ltd has exported the Commercial multifunctional core filling puffed snack making machine to more than 80 countries and regions, such as South Africa, India, Malaysia, Indonesia, Brazil and so on. Some of Extruded Food Corn Flakes Equipment Production Line customers become our agents in their area. We hope to have long friendly business relationship with more customers from all over the world in the future.
Our Team
Our company has many years of foreign trade experience, our team has a very rich experience.We are a professional team, our members have many years of mechanical professional and technical background. We are a young team, our average age is only 30 years old, full of vitality and innovative spirit. We are a dedicated team, we firmly believe that quality comes from the trust of customers.
FAQ
1.What’s your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering
2. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
If you have any needs or enquiries, please feel free to contact me! Thanks.
