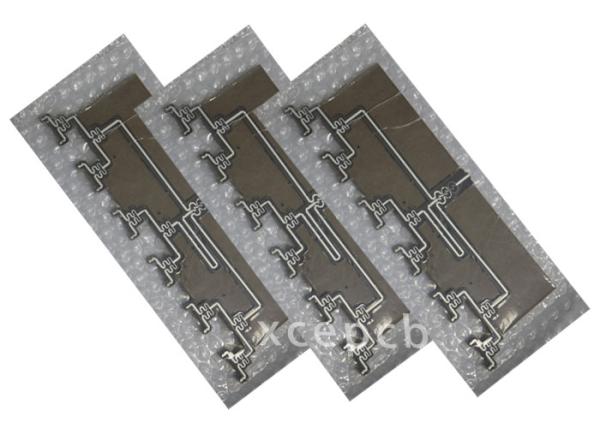

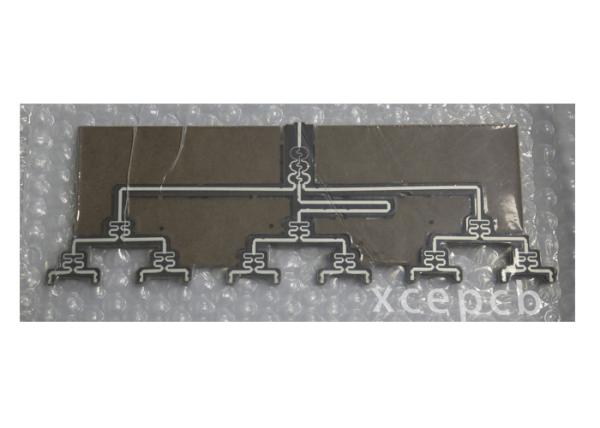

Microwave Antenna Taconic PCB Double Layer , High Frequency Board For RF Wireless audio



Quick detail:

TACONIC company is the world's largest production of PTFE CCL manufacturer, with a glass woven cloth coated with PTFE patent, is the PTFE microwave CCL industry, one of the technology leader, and its microwave CCL's dielectric constant To 2.17-10.0, occupying the global antenna sheet market share of more than 80%.

TACONIC high-performance insulation materials for the microwave, radio frequency (RF) and high-speed digital signal processing market PTFE / woven glass fiber woven sheet. This material can be used in LNAs, LNBs, PCS / PCN antenna systems, Global Positioning System (GPS) and UMTS antenna systems, as well as power amplifiers, passive components, collision avoidance radar systems, aeronautical telemetry and phase control Array radar system.

Specification:
PCB Audio Amplifier RF Transceiver Taconic High Frequency PCB Double Layer 1oz Electronic Circuit TACONIC high-performance insulating material for microwave, radio frequency (RF) and high-speed digital signal processing (DSP) market with PTFE/type woven glass fiber fabric sheet.This material can be applied to LNAs LNBs, PCS/PCN antenna system, global positioning system (GPS) and UMTS antenna system,And the power amplifier, passive components, collision avoidance radar system, aviation help guide remote control technology and system of the phased array radar.
Taconic materials are UL 94V-0 rated for active devices and high power RF designs.

High Speed Design Frequency PCB Board Special high electromagnetic frequency circuit boards, in general, can be defined as the frequency of the high frequency of 1GHz. Its physical properties, precision, technical parameters required is very high, commonly used in automotive anti-collision systems, satellite systems, radio systems, etc.

The basic characteristics of a high frequency board material requirements are the following:
(1) dielectric constant (Dk) must be small and very stable, usually the smaller the better signal transfer rate and the dielectric constant of the material
Inversely proportional to the square root of high dielectric constant is likely to cause the signal propagation delay.
(2) the dielectric loss (Df) must be small, mainly affect the quality, the smaller the dielectric loss signal transmission of the signal loss is smaller.
(3) as far as possible consistent with the coefficient of thermal expansion of the copper foil, copper foil separated because of inconsistency will cause changes in the hot and cold.
(4) to low water absorption, high water absorption will affect the dielectric constant and dielectric loss when damp.
(5) Other heat resistance, chemical resistance, impact strength, peel strength, etc. must also be good.


Typical Applications

• Cellular Base Station Antennas and Power Amplifiers
• Microwave point to point (P2P) links
• Automotive Radar and Sensors
• low dielectric loss
• RF Identification (RFID) Tags
• The stability of the dielectric constant
• An extremely low water imbibition
• LNB’s for Direct Broadcast Satellites
