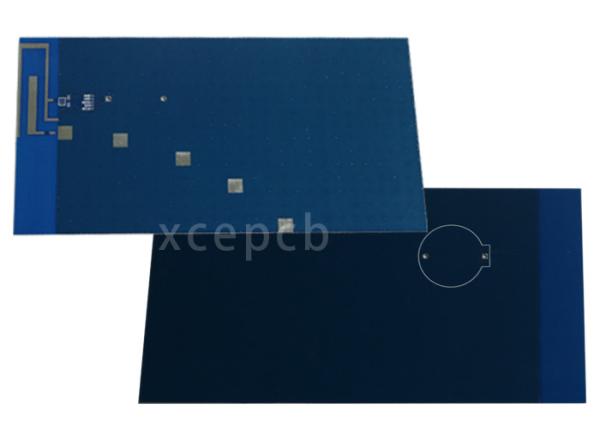

F4B Double Layer High Frequency PCB 0.38mm Thickness Dielectric constant 2.2
F4B Double Layer High Frequency PCB 0.38mm Thickness Dielectric constant 2.2
F4B Double Layer High Frequency PCB 0.38mm Thickness Dielectric constant 2.2
F4B Double Layer High Frequency PCB 0.38mm Thickness Dielectric constant 2.2
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
High frequency material
Layer :
2
Color :
Blue
Min line space :
4mil
Min line width :
4mil
Copper thickness :
2OZ
Board size :
179*66mm
Panel :
1
Surface :
Immersion Tin
Description

F4B High Frequency PCB Double Layer 0.38mm Thickness Dielectric constant 2.2

Typical Applications:

High Frequency BGA PCB Board Testing Electronic
Antenna Radio FM Rogers 3003 High Frequency PCB With Half Hole In 0.79mm Thickness

  • Space Saving Circuitry
  • Patch Antennas
  • Satellite Communications Systems
  • Power Amplifiers
  • Aircraft Collision Avoidance Systems
  • Ground Radar Warning Systems
  • Datalink on cable systems
  • Remote meter readers
  • Power backplanes
  • LMDS and wireless broadband
  • Base station infrastructure

Electronic equipment is the development trend of high-frequency, especially in the wireless network, the growing development of satellite communications, information products to high
Speed and high-frequency, and communications products to the capacity of large-speed wireless transmission of voice, video and data standardization.
Of the new generation products need high-frequency substrate, satellite systems, mobile phone base stations and other communications products must be used to receive high-frequency circuit
Board, in the next few years will inevitably rapid development of high-frequency substrate will be a lot of demand.


Advantage

F4B High Frequency PCB Double Layer 0.38mm Thickness Dielectric constant 2.2

Rogers 5880 pcb substrate superiority

1.Sufficient high frequency material raw
2. PCB Have the comprehensive quality control system
3. PCB good price
4. PCB quick turn delivery time from 48hours.
5. PCB certification(ISO/UL E354810/RoHS)
6. 12 years experience in exporting service
7. PCB is no MOQ/MOV.
8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting

Parameter:

o Item Data
1 Layer: 1 to 24 layers
2 Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
3 Board thickness: 0.20mm to 3.4mm
4 Copper thickness: 0.5 OZ to 4 OZ
5 Copper thickness in hole: >25.0 um (>1mil)
6 Max. Board Size: (580mm×1200mm)
7 Min. Drilled Hole Size: 4mil(0.1mm)
8 Min. Line Width: 3mil (0.075mm)
9 Min. Line Spacing: 3mil (0.075mm)
10 Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
11 Solder Mask Color: Green/Yellow/Black/White/Red/Blue
12 Shape tolerance: ±0.13
13 Hole tolerance: PTH: ±0.076 NPTH: ±0.05
14 Package: Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing
15 Certificate: UL,SGS,ISO 9001:2008
16 Special requirements: Buried and blind vias+controlled impedance +BGA
17 Profiling: Punching, Routing, V-CUT, Beveling



Rogers material in stock:

Brand Model Thickness(mm) DK(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO4003 0.254 0.508,0.813,1.524 3.38
RO4350 0.254 0.508,0.762,1.524 3.5
RO5880 0.254.0.508.0.762 2.2
RO3003 0.127,0.508,0.762,1.524 3
RO3010 0.635 10.2
RO3206 0.635MM 10.2
R03035 0.508MM 3.5
RO6010 0.635MM, 1,27MM 10.2
