Multilayer High TG TRF-45 RF Laminate FR4 DK Values 4Mil 1 OZ
Multilayer High TG TRF-45 RF Laminate FR4 DK Values 4Mil 1 OZ
Specifications
Brand Name :
XCE
Model Number :
XCE Bh713
Certification :
CE,ROHS,FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
MOQ 1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 pieces per week
Delivery Time :
5-10 working days
Packaging Details :
1)Vacuum package and carton box 2)Inner package:Vacuum package+drye 3)outer Package:Carton Package
Color :
Green
Material :
PTFE Material
Layer :
Multilayer
Board Size :
6*6cm
Copper Thinknes :
1 oz
Min Line Width :
4 mil
Min Line Space :
4mil
Surface Finish :
Immersion Gold
Name :
Taconic pcb
Description

Multilayer High TG TRF-45 Low Cost RF Laminate With FR4 DK Values 4Mil 1 OZ

Quick Detail :
1. Type : Pcb
2. Material : PTFE
3. Layer : Multilayer
4. Products Size :6*6cm
5. Permittivity : 3.5
6. Surface finish : Immersion Gold

Features:
1. Rogers pcb multilayer pcb with high frequency can improvide the products quality ,with high techolonogy treatment improve the life cycle of the products .
2. Immersion gold surface finish make the pcb 's conductive performance enhancements.
3. Multilayer pcb design ,the precision of the pcb improves much more better .
4. Low dielectric : 2.5 dielectric conductivity much more precision .

Parameter:

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2


Description :

with aTg > 170º C

Taconic Advanced Dielectric Division manufactures PTFE/woven glass base materials for microwave, RF and high speed digital applications. Applications include LNAs, LNBs, PCS/PCN antennas, GSM and UMTS antennas, power amplifiers, filters, passive components, automotive cruise control, aerospace guidance telemetry, phase array radar, etc.



PrePreg Material
It announced TerraGreen, a halogen-free, ultra-low loss, RF/microwave/high-speed material. TerraGreen is engineered for such high-performance applications as power amplifier boards for 4G LTE base stations.

Benefits:

  • Taconic

    PTFE and fiberglass fabric are the base materials for almost everything Taconic produces. The benefits of PTFE coatings are proven:

    · Temperature and chemical resistance

    · High dielectric strength

    · Dimensional stability under heat and pressure

    · Low electrical losses

    · Low-friction/non-stick smooth surface

  • RF-35TC High TC, DK 3.5 base material

  • CER-10 High DK Material, easily fabricated

  • TRF-41, TRF-43,TRF-45 Low cost RF laminate with FR4 DK values

Typical Applications:

  • Microwave & RF Laminates
    Applications: automotive, LED, mechanical, medical, military, multilayer, RF/microwave, thin core packaging & flexible interconnect

    Applications: aerospace, apparel, automotive, carpet/flooring, chemical processing, composites, food processing, lamination, packaging, paper, plastics, PVC welding, rubber processing, screen printing and textile

Production Description :

Parameter Value
Specific gravity/density 1.850 g/cm3 (3,118 lb/cu yd)
Water absorption −0.125 in < 0.10%
Temperature index 140 °C (284 °F)
Thermal conductivity, through-plane 0.29 W/(m·K),[1] 0.343 W/(m·K)[2]
Thermal conductivity, in-plane 0.81 W/(m·K),[1] 1.059 W/(m·K)[2]
Rockwell hardness 110 M scale
Bond strength > 1,000 kg (2,200 lb)
Flexural strength (A; 0.125 in) - LW > 440 MPa (64,000 psi)
Flexural strength (A; 0.125 in) - CW > 345 MPa (50,000 psi)
Tensile strength (0.125 in) LW > 310 MPa (45,000 psi)
Izod impact strength - LW > 54 J/m (10 ft·lb/in)
Izod impact strength - CW > 44 J/m (8 ft·lb/in)
Compressive strength - flatwise > 415 MPa (60,200 psi)
Dielectric breakdown (A) > 50 kV
Dielectric breakdown (D48/50) > 50 kV
Dielectric strength 20 MV/m
Relative permittivity (A) 4.8
Relative permittivity (D24/23) 4.8
Dissipation factor (A) 0.017
Dissipation factor (D24/23) 0.018
Dielectric constant permittivity 4.70 max., 4.35 @ 500 MHz, 4.34 @ 1 GHz
Glass transition temperature Can vary, but is over 120 °C
Young's modulus - LW 3.5×106 psi (24 GPa)
Young's modulus - CW 3.0×106 psi (21 GPa)
Coefficient of thermal expansion - x-axis 1.4×10−5 K−1
Coefficient of thermal expansion - y-axis 1.2×10−5 K−1
Coefficient of thermal expansion - z-axis 7.0×10−5 K−1
Poisson's ratio - LW 0.136
Poisson's ratio - CW 0.118
LW sound speed 3602 m/s
SW sound speed 3369 m/s



Competitive Advantage:
1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .


What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.

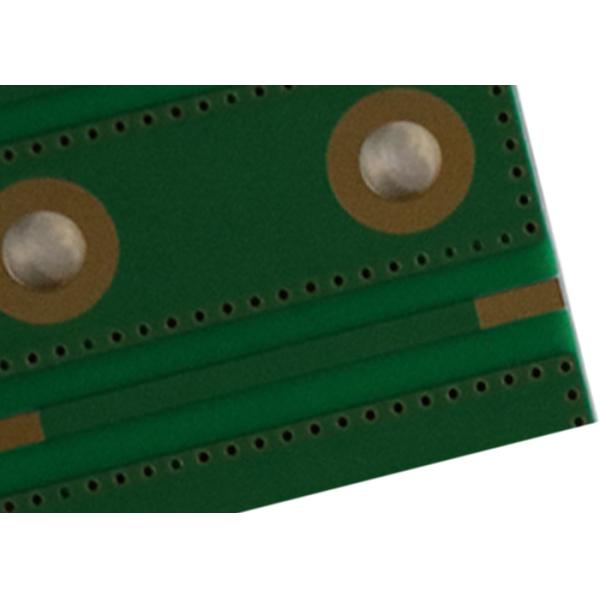

Detailed Images :


Multilayer High TG TRF-45 RF Laminate FR4 DK Values 4Mil 1 OZ

Multilayer High TG TRF-45 RF Laminate FR4 DK Values 4Mil 1 OZ




Multilayer High TG TRF-45 RF Laminate FR4 DK Values 4Mil 1 OZ
