Double sided high frequency Rogers 4350B pcb with 0.508 mm thinckness board for wireless transceiver
Double sided high frequency Rogers 4350B pcb with 0.508 mm thinckness board for wireless transceiver
Specifications
Brand Name :
XCE
Model Number :
rogers 4350B
Certification :
CE,ROHS,FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
MOQ 1 Piece
Price :
Negotiation
Payment Terms :
T/T, T/T, Western Union
Supply Ability :
1000000 pcs per week
Delivery Time :
5-10 work days
Packaging Details :
1)Vacuum package and carton box 2)Inner package:Vacuum package+drye 3)outer Package:Carton Package
Color :
Creen
Material :
rogers
Layer :
double sided
Board size :
8*6cm
Copper thinckness :
1 oz
Surface :
immerssion gold
Min Line Width :
5 mil
Min Line Space :
5 mil
Name :
FR4 pcb
Description

Double sided high frequency Rogers 4350B pcb with 0.508 mm thinckness board for wireless transceiver

Quick Detail :

1. Type : Pcb

2. Material : Rogers

3. Layer : Double sided

4. Products Size : 8*6 cm

5. Permittivity : 3.5

6. Surface finish : Immersion Gold

Features:

1. Rogers pcb multilayer pcb with high frequency can improvide the products quality ,with high techolonogy treatment improve the life cycle of the products .

2. Immersion gold surface finish make the pcb 's conductive performance enhancements.

3. Multilayer pcb design ,the precision of the pcb improves much more better .

4. Low dielectric : 3.5 dielectric conductivity much more precision .

Description :

Low dielectric high-frequency multilayer rogers pcb ,improve the rogers 4350B pcb 's conductivity and the high quality make the customer save more costs .

High frequency PCBs with aluminum heat sink for telecommunication and aerospace industries using customer specific electrically and thermally conductive bonding films. Microwave PCB’s: XCE has enormous experience and technical expertise in the manufacturing of time critical, high technology RF circuits. The company works closely with its worldwide customers to deliver prototype-to-large volume manufacturing of circuits. During this process our engineering staff discusses with the customers’ staff to come up with the optimized designs for high quality, low cost and speedy delivery.

Production Description :

XCE PCB technical specifications
Annual stock Material Rogers,Taconic,Arton,Isola,F4B,TP-2.FR-4,High TG,Halogen free
Layer No. 1~16
Min board thickness

2 layer0.2mm

4 layer0.4mm

6 layer 0.6mm

8 layer 0.8mm

10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance T≥0.8mm±8%.,T<0.8mm±5%
Wall hole copper thickness >0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance >1012Ωnormal
Through-hole resistance <300Ωnormal
Electric strength >1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity >6H
Thermal stress 288℃20Sec
Testing voltage 50-300V
Min buried blind via 0.2mm(8mil)
Outer copper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickless 0.075mm-5mm
Taphole aperture 0.2mm-0.6mm
Special technology Indepedance,Blind buried via,thick gold,aluminum PCB
Surface finish HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating

Competitive Advantage:

1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .

What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.

Detailed Images :

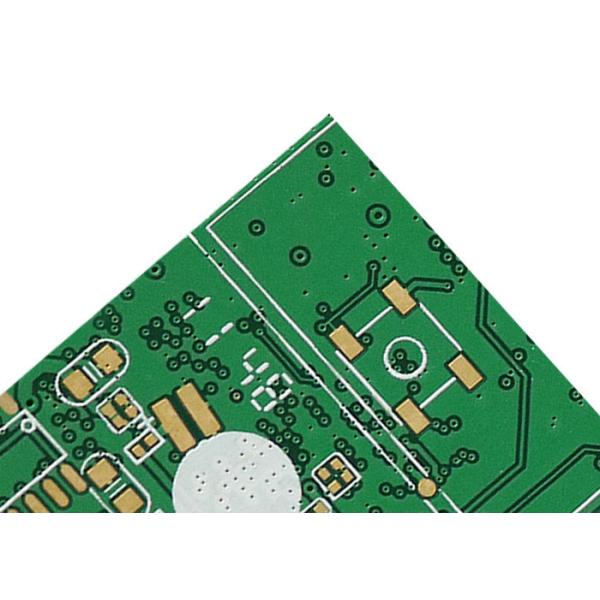

Double sided high frequency Rogers 4350B pcb with 0.508 mm thinckness board for wireless transceiver

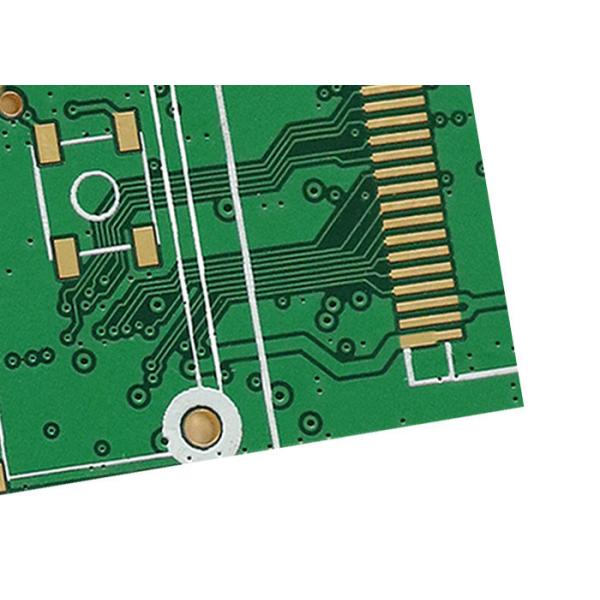

Double sided high frequency Rogers 4350B pcb with 0.508 mm thinckness board for wireless transceiver
