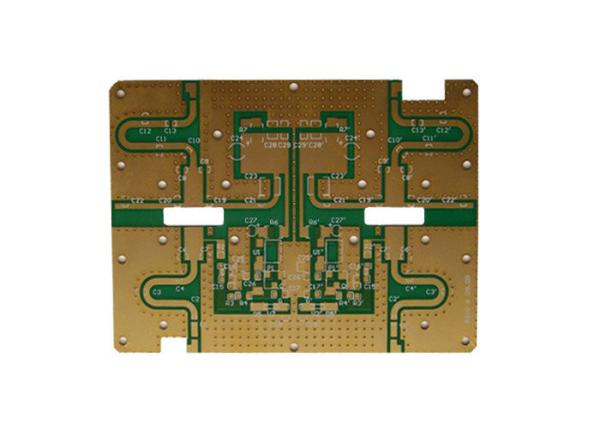

94v0-Led Hasl PCB Electronic Circuit Board Hasl Rogers Ro4003c PCB Microwave RF Field RogersC3 Immersion
94v0-Led Hasl PCB Electronic Circuit Board Hasl Rogers Ro4003c PCB Microwave RF Field RogersC3 Immersion
Specifications
Brand Name :
XCE
Model Number :
XCE
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Packaging Details :
vacuum + Carton
Surface finish :
Immersion gold
Line space :
10mil
PCB :
High frequency PCB
Material :
Rogers 4003
Line width :
10 mil
Description

Specification:

Base material Rogers 4003C Board THK 1.6mm
Layer 2 Board size 8*6cm
Surface finish Immersion gold Line space 10mil
Copper THK 3OZ Line width 10 mil

Quick detail:

Rogers 4003 substrate

2 layer Rogers 4003 pcb material

Green solder mask,

white silk screen

Model:XCER-1

Size:8*6cm

Location:Shenzhen

Application:

a Telecom: transmitter. Receiver. Oscillator. Antenna.

b Satellite receiver

c Global location system, amplifier, satellite telecom

d Microwave transmission

e Automobile telephone

f Measure apparatus, LSI inspector, analyser, signal oscillator

g High frequency teletcom, high speed transmission, high security, high transmission quality, high memory transaction

Rogers 4003 PCB Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)

High Frequency Rogers 6-layer PCB

Based on a variety of parameters, HF signals are reflected on circuit board, meaning that the impedance (dynamic resistance) varies with respect towards the sending component. To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest amount of approach manage.

Vital for the impedances in high frequency printed circuit boards are principally the conductor trace geometry, the layer buildup, along with the dielectric continuous (er) on the supplies applied.

Materials used for HF circuit boards

For many applications, it is sufficient to use Rogers material with an appropriate layer buildup. In addition, we process high-frequency materials with improved dielectric properties. These have a very low loss factor, a low dielectric constant, and are primarily temperature and frequency independent.

Additional favourable properties are high glass transition temperature, an excellent thermal durability, and very low hydrophilic rate.

We use (among others) Rogers or PTFE materials (for example, Teflon from DuPont) for impedance controlled high frequency circuit boards. Sandwich buildups for material combinations are also possible.

The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.

Rogers 4003 PCB Parameter

o. Item Spec
1 Layers 6 layers
2 Max working panel area 457 x 610 mm
3 Min board thickness 4 layer: 0.40mm
6 layer: 0.80mm
8 layer: 1.00mm
10 layer: 1.20mm
4 Min trace width 0.10mm
5 Min spacing 0.10mm
6 Min hole diameter 0.20mm
7 Min Copper thickness in hole 0.020mm
8 PTH size tolerance ±0.05mm
9 NPTH size tolerance ±0.025mm
10 Hole position tolerance ±0.05mm
11 Dimension tolerance ±0.1mm
12 Min solder mask dam 0.08mm
13 Insulation resistance 1E+12Ω (normal condition)
14 Max Board thickness/Hole size Rate '10:01
15 Thermal shock endurance 288 3 times in 10sec
16 Max Board twist and wrap ≤0.7%
17 High Vlotage endurance 1.3KV/mm
18 Copper foil peel off endurance 1.4N/mm
19 Hardness of resist ink ≥6H
20 Flame resistance 94V-0
21 Impedance control ±5%

Place of Origin: China
Brand Name: XCE
Model Number: XCEBR-6
Port Shenzhen,HongKong
Minimum Order Quantity: 1pcs
Price: Please send gerber file for accurate price
Packaging Details: Inner:vacuum packed bubble bag Outer:carton box
Delivery Time: 3-8 days
Payment Terms: T/T,western union,paypal,L/C
Supply Ability: 1, 000, 000PCS/week

Parameter:

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 7.0 OZ

Copper thickness in hole

>25.0 um (>1mil)

Size

Max. Board Size: 23 × 25 (580mm×900mm)

Min. Drilled Hole Size: 3mil (0.075mm)

Min. Line Width: 3mil (0.075mm)

Min. Line Spacing: 3mil (0.075mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling

Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.

Description

1.Professional manufacturer of PCB specialized in single-sided PCB, double-sided PCB, multilayer PCB.

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2

Advantages:

1) We have professional research team.

2) No MOQ,small order are aslo welcome,From Prototype to Mass production.

3) All products are 100% tested working before sent to you.

4) One stop PCB solution

5) We have professional sales team, so please do not hesitate to contact us if you have any question
