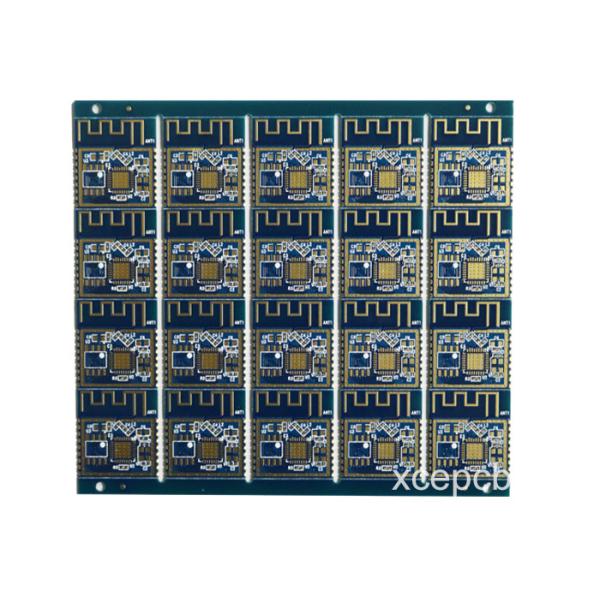

Multilayer Printed Circuit Board Pcb HDI Laser Drilling Plate Milspec PCB 6 Layer Blind Hole
Multilayer Printed Circuit Board Pcb HDI Laser Drilling Plate Milspec PCB 6 Layer Blind Hole
Specifications
Brand Name :
XCE
Model Number :
XCET
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Supply Ability :
1, 000, 000 PCS / week
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
FR4
PCB layer :
1-28layers
Min. Hole Size :
6mil
Board size :
Min 6 x 6mm | Max 457 x 610m
Surface Finishing :
ENIG, Immersion silver, etc.
Copper Thickness :
0.5oz - 2.0oz
Assembly Option :
yes
Electronics Source :
yes
Description

6 layer Blind hole PCB with impedance control

Base material: FR4

Layer: 6 layers with impedance control & BGA

Board thickness: 1.6 mm

Copper thickness: 1 oz

Surface finish: ENIG

Solder mask & Silkscreen: Green & White

Min. line space: 4 mil

Min. line width: 4 mil

Application:

  • Telecom: transmitter. Receiver. Oscillator. Antenna.
  • Satellite receiver
  • Global location system, amplifier, satellite telecom
  • Microwave transmission
  • Automobile telephone
  • Measure apparatus, LSI inspector, analyser, signal oscillator
  • High frequency teletcom, high speed transmission, high security, high transmission quality, high memory transaction

We can offer production with high quality and competitive:

Item Mass Production Pilot Run Production
Capacity Capacity
Layer Counts 1L_20L, HDI 20-28 , HDI
Material FR4
Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880) Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc.
Material Mixed Laminate 4 layers -- 10 layers 12 layers
FR4+Ro4350 , Rogers3003+FR4
Maximum Size 610mm X 1200mm 1200 - 2000MM
Board Outline Tolerance ±0.15mm ±0.10mm
Board Thickness 0.125mm--6.00mm 0.1mm--8.00mm
Thickness Tolerance ( t≥0.8mm) ± 8% ±5%
Thickness Tolerance( t<0.8mm) ±10% ±8%
Minimum Line / Space 0.10mm 0.075mm
Trace width Tolerance 15%-20% 10%
Minimum Drilling Hole (Mechanical) 0.2mm 0.15mm
Minimum laser hole 0.1mm 0.075mm
Hole Position/hole Tolerance ±0.05mm PTH:±0.076MM NPTH:±0.05mm
Mini hole ring (single 0.075MM 0.05MM
OutLayer Copper Thickness 17um--175um 175um--210um
InnerLayer Copper Thickness 17um--175um 175um--210um
Mini Solder Mask Bridge 0.05mm 0.025mm
Impedance Control Tolerance ±10% ±5%
Surface Finishing HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver.
Plated gold , OSP, Carbon ink
1-2L Lead-time 3-7 days 1-2 days
4- 8L Lead-time 7-10 days 2-7 days
10-18L Lead-time 10-15 days 4-9 days
20-28L Lead-time 15-20 days
Acceptable File Format ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc.
Quality Standards IPC-A-600F and MIL-STD-105D CHINA GB<4588>

Our service:

Offering comprehensive range of PCB, HDI, high frequency circuit board(Our Advantage products Milspec PCB), impedance board, high TG board, thick copper board, multilayer board, soft and hard board, blind hole plate etc.

We provide one stop solution to all printed circuit needs, PCB &PCBA assembly service and component sourcing, to optimize product performance and shorten time-to market.

Application:

Communication equipment, Computers, Telecom Base Station, Industrial control, Power electronics, Household appliances, Automobiles, Medical instruments, Security electronics and Aerospace etc.

Custom quote requirement:

To ensure an accurate quote, be sure to include the following information for your project:

• Complete GERBER files including the BOM list
• Other file types (Altium,Protel,OrCAD)
• "Read Me" notes for additional fabrication information
• Quantities
• Turn time
• Panelization Requirements
• Materials Requirements
• Finish requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.
