Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module
Specifications
Brand Name :
Rogers
Model Number :
4350B
Certification :
ISO9001/TS16949/IPC/ROHS/UL
Place of Origin :
China
MOQ :
5piece
Price :
USD 0.1-10 Pieces
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000000Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
inner:vacuum-packed bubble bag outer: carton box
Base Material :
Rogers 4350B+FR4
Product name :
Glass Reinforced Hydrocarbon and Epoxy Resin
Number of Layers :
4-Layer
Copper Thickness :
1.5-2OZ
Board Thickness :
Mechanical drill: 8mil(0.2mm)
Surface Finishing :
immersion Silver
Rogers High Frequency PCB :
China rogers printed circuit board
SMT Efficiency :
BGA.QFP.SOP.QFN.PLCC.CHIP
Testing Service :
X-Ray/AOI X-Ray Function Test/Omron AOI/Solder Paste Testing
Application :
Industrial Control/Medical Device Consumer/Communications/Electronics Device/Unicycle/Computer Pcb
Description

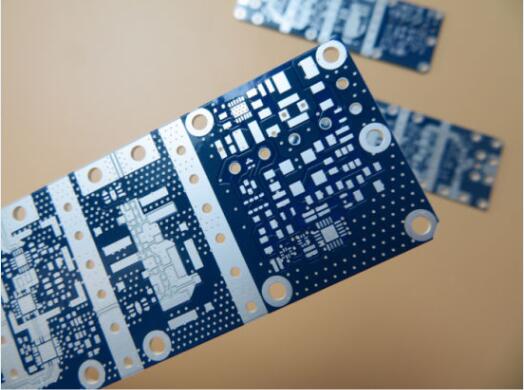

Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver

1.1 General description

This is a type of mixed PCB built on 20mil RO4350B substrate and FR-4 combined for the
application of Wireless Range Extender. It's also an impedance controlled board. 50 ohm
single end impedance is controlled on top layer and bottom layer.It's 1.8 mm thick with 4
layers copper of 2oz weight, white silkscreen on blue solder mask and immersion silver on
pads. The base material is from Rogers Corp supplying single up PCB per panel. They're
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed
for shipment.

1.2 Features and benifits

A. RO4350B exhibits a stable dielectric constant over a broad frequency range. This makes
it an ideal substrate for broadband applications;
B. Good high temperature and low temperature resistance(-192ºC-260ºC);
C. Superior corrosion resistance;
D. SI performance improvement over the stack-ups with all FR4 board;
E. Quick CADCAM checking and free PCB quotation;
F. Professional and experienced engineers;
G. Competitive price.

1.3 Application

Antenna, Antenna combiner, Balanced amplifier, 3G antenna
Impedance Control Hybrid PCB RO4350b and Fr4 with Immersion Silver Custom PCB Boards for Automatic Door light Module

High frequency rogers pcb introduce:

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2

Basic information:

Place of Origin: China
Brand Name: XCE
Model Number: XCEC-4
Port Shenzhen,HongKong
Minimum Order Quantity: 1pcs
Price: Please send gerber file for accurate price
Packaging Details: Inner:vacuum packed bubble bag Outer:carton box
Delivery Time: 3-8 days
Payment Terms: T/T,western union,paypal,L/C
Supply Ability: 1, 000, 000PCS/week
