FR4 Communication Device 0.8MM TG170 PCB Circuit Board 1 OZ Copper Thickness
FR4 Communication Device 0.8MM TG170 PCB Circuit Board 1 OZ Copper Thickness
FR4 Communication Device 0.8MM TG170 PCB Circuit Board 1 OZ Copper Thickness
FR4 Communication Device 0.8MM TG170 PCB Circuit Board 1 OZ Copper Thickness
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
FR4
Layer :
2
Color :
Green
Min line space :
4mil
Min line width :
4mil
Copper thickness :
1OZ
Board size :
299*50mm
Panel :
1
Surface :
HASL-LF
Description

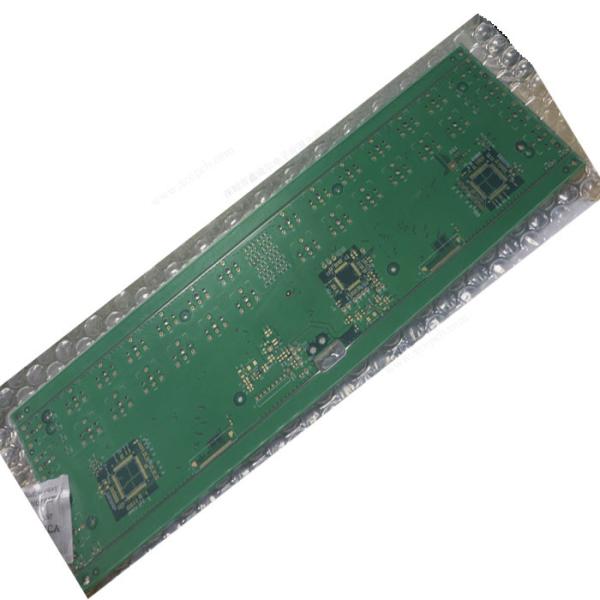

FR4 Communication Device 0.8MM TG170 PCB


Specification:
1. Over 10 years' pcb manufacturing experience
2. Quick sample service
2. 100% quality tested before shipment
3. ISO 9001,SGS, RoHS

Description:
We are a profesional FR4 PCB Circuit Board manufacturer in China, and we can offer a various of single sided to multilayer PCB to you.
F (for flame) and R (for retardancies) and the 4 is a 4 epoxy.FR4 is a glass fiber epoxy laminate.FR4 is the Main material for PCB manufacture, it is the excellent quality and reasonable price material
FR-4 is widely used for single and multilayer boards, which has excellent thermal tolerance as much as 130°C. Now this type material FR-4 is more widely manufactured, but the hence is less costly.


Company:

Company spirit:Customer first,openness basing on sincerity.

Comapny culture:Improve employees quality with on the job training.

Quality policy:Honesty,superior quality,high efficiency.

Company tenet: Provide customers with satisfactory products and service is our eternal tenet.

Description:

We are a profesional FR4 PCB Circuit Board manufacturer in China, and we can offer a various of single sided to multilayer PCB to you.

F (for flame) and R (for retardancies) and the 4 is a 4 epoxy.FR4 is a glass fiber epoxy laminate.FR4 is the Main material for PCB manufacture, it is the excellent quality and reasonable price material

FR-4 is widely used for single and multilayer boards, which has excellent thermal tolerance as much as 130°C. Now this type material FR-4 is more widely manufactured, but the hence is less costly.

Parameter:

Product name FR4 PCB Double side 4 layer 6 layer 8 layer 10-28layer
layer Single side Double side 4 layer 6 layer 8 layer 10-28layer
Base Maerial FR4 FR4,Alu,polymide FR4 FR4 FR4 FR4
Copper thickness 1-6OZ
Min.Hole size 0.1mm
Min.Line Width 0.1mm
Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder masker color green,red,black,white,yellow
Silkscreen color black,white,yellow
Tolerance - Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Special requirements Buried and blind vias+controlled impedance +BGA

Standard lead time
2 layers 4WD
4 layers 5WD
6 layers 6WD
8 layers 7WD
10 layers 8WD
12 layers 8WD
14 layers 9WD
More than 16 layers Up to difficulty

You need an authentic specialist of rigid PCB maker!
ShenZhen Xinchenger Electronics Co.,Ltd to be your rigid PCB manufacturer, including multilayer PCB design, fabrication and PCB assembly(PCBA). Our responsive team will offer you rigid PCB manufacturing and assembly services with a range of process control, refined and strict PCB work-flow and quality commitment.

Parameter:

Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance　　 T≥0.8mm±8%,T＜0.8mm±5%
Wall hole copper thickness　　 ＞0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance ＞1012Ωnormal
Through-hole resistance ＜300Ωnormal
Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm

Who We Are
As a service-leading custom PCB board manufacturing and PCB assembly (PCBA) partner, ShenZhen Xinchenger Electronics Co.,Ltd to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Shenzhen, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

What we need:

* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging,
component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)
