2 Layer Glass Epoxy FR4 PCB 1.6MM Shake Car 1.2MM FR4 Circuit Board Stable
2 Layer Glass Epoxy FR4 PCB 1.6MM Shake Car 1.2MM FR4 Circuit Board Stable
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
FR4
Layer :
2
Color :
Green
Min line space :
4mil
Min line width :
4mil
Copper thickness :
1OZ
Board size :
301*20MM
Panel :
1
Surface :
HASL-LF
Description

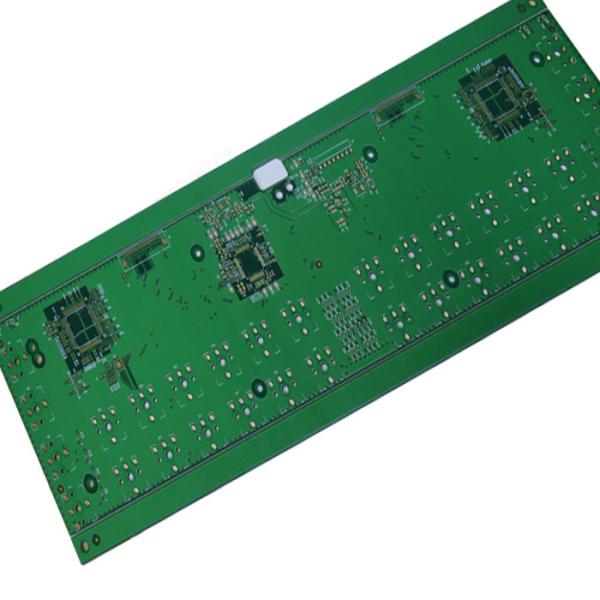

Glass Epoxy FR4 PCB 1.6MM Shake Car 1.2MM Circuit Board

Description:

We are a profesional FR4 PCB Circuit Board manufacturer in China, and we can offer a various of single sided to multilayer PCB to you.

F (for flame) and R (for retardancies) and the 4 is a 4 epoxy.FR4 is a glass fiber epoxy laminate.FR4 is the Main material for PCB manufacture, it is the excellent quality and reasonable price material

FR-4 is widely used for single and multilayer boards, which has excellent thermal tolerance as much as 130°C. Now this type material FR-4 is more widely manufactured, but the hence is less costly.

Features:

>Glass-reinforced hydrocarbon and ceramic dielectric

>Excellent high frequency performance due to low dielectric tolerance and loss

>Stable electrical properties versus frequency

>Low Z-axis expansion and excellent dimensional stability

Parameter:

Product name FR4 PCB Double side 4 layer 6 layer 8 layer 10-28layer
layer Single side Double side 4 layer 6 layer 8 layer 10-28layer
Base Maerial FR4 FR4,Alu,polymide FR4 FR4 FR4 FR4
Copper thickness 1-6OZ
Min.Hole size 0.1mm
Min.Line Width 0.1mm
Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder masker color green,red,black,white,yellow
Silkscreen color black,white,yellow
Tolerance - Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Special requirements Buried and blind vias+controlled impedance +BGA

Layers 1-16 layers Min Board Thickness(2-layer) 0.2mm
Max Board Size 635 × 1100mm Min Board Thickness(4-layer) 0.6mm
Min Board Size 20 × 30mm Min Inner-layer Thickness 0.1mm
Min Trace 0.1mm Min Annular Ring 0.1mm
Min Space 0.1mm Min Hole Location Tolerance ±0.075mm
Min Hole Size 0.2mm Min Hole Size Tolerance ±0.05mm
Board Warp ≤ 1° Min Outer Dimension Tolerance ±0.1mm
Solder Mask Green, Yellow, Red, Black, Blue, White
Surface Finish HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board Material FR-4, High Tg FR-4, Thick Copper FR-4, Rogers, Taconic
Acceptable file Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM software Genesis, CAM350

You need an authentic specialist of rigid PCB maker!
ShenZhen Xinchenger Electronics Co.,Ltd to be your rigid PCB manufacturer, including multilayer PCB design, fabrication and PCB assembly(PCBA). Our responsive team will offer you rigid PCB manufacturing and assembly services with a range of process control, refined and strict PCB work-flow and quality commitment.

Parameter:

Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance　　 T≥0.8mm±8%,T＜0.8mm±5%
Wall hole copper thickness　　 ＞0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance ＞1012Ωnormal
Through-hole resistance ＜300Ωnormal
Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
