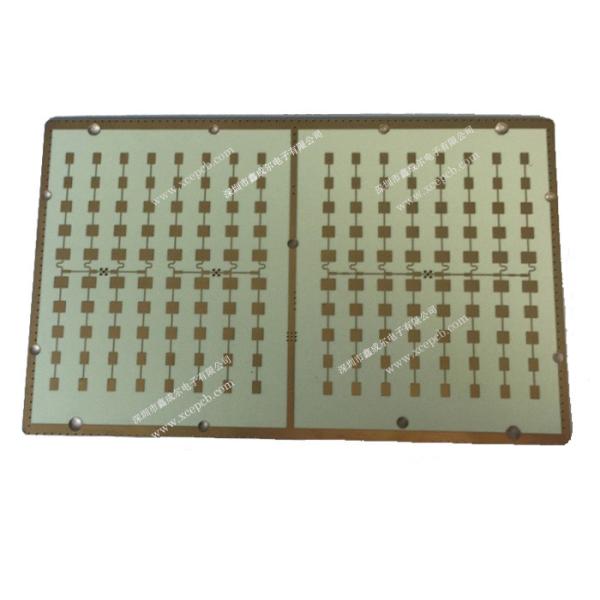

Hybrid Rogers+FR4 Solutions 6 Layer High Frequency Board High-speed Applications In Electrolytic soft Gold

Specifiction:
layer:6
board thickness:0.79mm
Copper thickness:1oz
min Hole size:0.2mm
min line width and distance:5/5mil
Surface treatment: Electrolytic soft Gold
Application: High-speed
Product Description
L1-L2 Blind holes;
L2-L3 Bury holes;
L1-L4 Through holes;
Copper based with Rogers 4350 T1.3mm.
Copper thickness 0.70mm;
Milling thickness 1.2mm.

Description :
RO4350B materials are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass and the manufacturability of epoxy/ glass.
Providing tight control on dielectric constant and low loss while utilizing the same processing method as standard epoxy/glass, RO4350B is available at a fraction of the cost of conventional microwave laminates. No special through-hole treatments or handling procedures are required as with PTFE based microwave materials.
RO4350B materials are UL 94V-0 rated for active devices and high power RF designs.

Specification

Features:
Rogers pcb multilayer pcb with high frequency can improvide the products quality ,
with high techolonogy treatment improve the life cycle of the products .
The high frequency rogers pcb with 4 mil 1 oz ,
also with DHI half hole blind buried techonology .
Immersion gold surface finish make the pcb 's conductive performance enhancements.
Multilayer pcb design ,the precision of the pcb improves much more better .
Low dielectric : 3 dielectric conductivity much more precision .
Rogers material used in RF Microwave fields in radar system .

Typical Applications:
Space Saving Circuitry
Patch Antennas
Satellite Communications Systems
Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems
Datalink on cable systems
Remote meter readers
Power backplanes
LMDS and wireless broadband
Base station infrastructure

Rogers material in stock:

Our PCB board manufacture
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* Electronic testing circuit board
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free

Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)

Available substrates:
RO4350B RO4003C TLX-8 (TACONIC) F4B Woven Glass-Reinforced PTFE
4mil(0.1mm) 8mil (0.203mm) 20mil(0.5mm)
10mil(0.254mm) 12mil(0.3mm) 30mil(0.762mm)
13.3mil(0.338mm) 20mil(0.508mm) 40mil(1.0mm)
20mil (0.508mm) 32mil(0.813mm)
30mil(0.762mm) 60mil(1.524mm)
60mil(1.524mm)

Applications:
Amplifier Combiner Coupler Mixer Multiplexer Power divider WiFi
WiMAX, LTE bands 3G and 4G antenna
