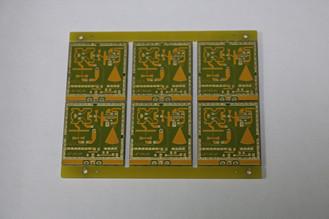

Rogers5880 Panel Board GPS Navigation Antenna Circuit Design 0.8MM Thickness

Key specifications/special features:
Rogers PCB
Rogers 4350B, Roger3003, Rogers4003,Roger 5880 and more material on stock
PCB thickness: 0.2-2mm+/-10%
Final copper: 0.5-10oz
Min hole: 0.2mm
Min line width/space: 4/4mil
Min hole copper: 20μm/25μm
Solder mask: green/blue/red/black/gray/white
Legend: white/black/yellow
Surface: OSP/HAL lead-free/immersion gold/immersion tin/
immersion silver/flash gold/hard gold
Outline: rout and score/V-cut
E-test: 100%
Certificates: UL, SGS, RoHS Directive-compliant, ISO
Files: Gerber Protel DXP Auto CAD PADs eagle
Testing: flying probe test, E-test, X-ray Inspection, AOI

RT/duroid® Laminates

RT/duroid high frequency circuit materials are filled PTFE (random glass or ceramic) composite laminates for use in high reliability, aerospace and defense applications.

Benefits
Low electrical loss
Low moisture absorption
Stable Dk over frequency
Low outgassing for space applications

Typical Applications
Airborne and ground based radar systems
Millimeter Wave Applications
Military Radar Systems
Missile Guidance Systems
Space satellite transceivers

PCB specialties:
PCB types: Rigid PCB/high frequency PCB/high TG PCB and more
PCB materials:Rogers/Taconic/F4B/Arlon and more
PCB finish: HAL/LFHAL/ENIG/immersion tin/OSP/immersion silver/flash gold/gold plated and more
PCB application: Satellite transceiver, Microwave sensors, RF transceiver,RF Transmitter,radar motion module,Microwave Sensor module,radar motion detector module,microwave source module,RF synthesizer modules,RF Power Amplifiers and more

Available substrates:
RO4350B RO4003C TLX-8 (TACONIC) F4B Woven Glass-Reinforced PTFE
4mil(0.1mm) 8mil (0.203mm) 20mil(0.5mm)
10mil(0.254mm) 12mil(0.3mm) 30mil(0.762mm)
13.3mil(0.338mm) 20mil(0.508mm) 40mil(1.0mm)
20mil (0.508mm) 32mil(0.813mm)
30mil(0.762mm) 60mil(1.524mm)
60mil(1.524mm)

Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital

Sufficient stock:
We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,
RO4232,RO4233,RO3003,RO3006,RO3010,RO3035,RO3203,RO3206,
RO3210,RO3730,RO5780,RO5880,RO6002,RO3202,RO6006,
Frequently-used is 4003C,4350B,5880
So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

High frequency:

Parameters & Data Sheet

RT/duroid® 5880 Laminates

RT/duroid® 5880 high frequency laminates are PTFE composites reinforced with glass microfibers.The randomly oriented microfibers result in exceptional dielectric constant uniformity.

The dielectric constant of these high frequency laminates is the lowest of all products, and low dielectric loss make them well suited for high frequency/ broad band applications where dispersion and losses need to be minimized. Because of its extremely low water absorption characteristics, RT/duroid 5880 laminates are ideal for applications in high moisture environments.

RT/duroid 5880 laminates are easily cut, sheared and machined to shape, and resistant to all solvents and reagents normally used in etching printed circuits or plating edges and holes. RT/duroid 5870 and 5880 laminates have the lowest electrical loss of any reinforced PTFE material, low moisture absorption, are isotropic, and have uniform electrical properties over frequency.

Rogers RT/duroid 5880 high frequency laminates are used in:

• commercial airline broadband antennas
• microstrip and stripline circuits
• millimeter wave applications
• military radar systems
• missile guidance systems
• point-to-point digital radio antennas
