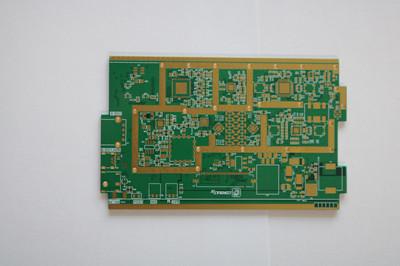

Rogers 3003 Mixed FR4 Design Pcb Board Prototype Military / Aerospace Equipment Application
Rogers 3003 Mixed FR4 Design Pcb Board Prototype Military / Aerospace Equipment Application
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
Rogers
Layer :
8
Min line space :
5mil
Min line width :
5mil
Copper thickness :
1OZ
Board size :
136*44MM
Panel :
1
Description

Rogers3003 Mixed FR4 Design Military/Aerospace Equipment Application

Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital


Sufficient stock:
We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,
RO4232,RO4233,RO3003,RO3006,RO3010,RO3035,RO3203,RO3206,
RO3210,RO3730,RO5780,RO5880,RO6002,RO3202,RO6006,
Frequently-used is 4003C,4350B,5880
So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

High frequency:

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2

Parameter:
Rogers 4003 C Pcb With 3.38 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz , 2 oz ,3 oz .
Rogers 4350 B pcb With 3.5 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz , 2 oz ,3 oz .
Rogers 5880 Pcb With 2.2 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz,2 oz, 3 oz
Rogers 3003 Pcb With 3 ER . There are 0.127mm,0.508mm 0.762mm 1.6 mm 3 mm Board Thinckness with 1 oz ,2 oz , 3 oz .
Rogers 3010 Pcb With 10.2 ER . There are 0.635 mm Thinckness Board with 1 oz , 2 oz ,3 oz .

Radar microwave circuit board (PCB) production, Doppler sensor module LED light board, 5.8G, 24G sensor board, speed electronic dog motherboard, Rogeros high frequency board, Taconic high frequency board, TP-2 special media board, Board, F4B domestic high-frequency board, Rogeros and FR4 mixing plate, 4G antenna high frequency board, 4G base station high frequency board

High frequency board, high-frequency microwave board, high-frequency microwave circuit board, Taikang Nick PCB circuit board, ARLON high-frequency board, Taconic high-frequency board, asymmetrical high-frequency board, high-frequency board, ROGERS high frequency board, Mixed, Rogers mixed, Rogers 5880 plate high-frequency board Shenzhen high-frequency board processing plant Rogers high-frequency pcb
