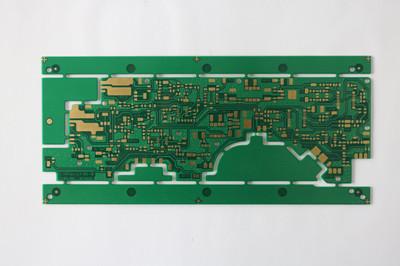

4 layer HASL PCBs for Automotive , Customized PCB Board for Power Supply Board
4 layer HASL PCBs for Automotive , Customized PCB Board for Power Supply Board
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
FR4
Layer :
4
Color :
Green
Min line space :
4mil
Min line width :
4mil
Copper thickness :
1OZ
Board size :
300*75MM
Panel :
1
Surface :
Immersion Gold
Description

4-layer HASL PCBs for Automotive, Customized Suitable for Power Supply Board
Features:
>Glass-reinforced hydrocarbon and ceramic dielectric
>Excellent high frequency performance due to low dielectric tolerance and loss
>Stable electrical properties versus frequency
>Low Z-axis expansion and excellent dimensional stability

specification:
layer: multilayer
material: fr4
Tg value: tg135-tg180
board thickness:1.6mm
copper thickness:.1.5oz
surface treatment:Hasl lead free+gold finger
About us:
With 900workers,full-process equippted(including lamination.imersion Gold),we make 1~24layers board in guaranteed quality.
Special Advantage: High frequency board-rogers,ITEQ,board thickness 0.2~7.0mm,copper thickness 1/3~8oz are available )


Parameter:

Product nameFR4 PCBDouble side4 layer6 layer8 layer10-28layer
layerSingle sideDouble side4 layer6 layer8 layer10-28layer
Base MaerialFR4FR4,Alu,polymideFR4FR4FR4FR4
Copper thickness1-6OZ
Min.Hole size0.1mm
Min.Line Width0.1mm
Surface finishing:HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder masker colorgreen,red,black,white,yellow
Silkscreen colorblack,white,yellow
Tolerance- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Special requirementsBuried and blind vias+controlled impedance +BGA

Rigid PCB Manufacturing Capabilities
Total Pad SizeStandardAdvanced
Capture PadDrill + 0.008Drill + 0.006
Landing PadDrill + 0.008Drill + 0.006
BC Mechanical Drill (Type III)0.0080.006
Laser Drill Size0.004-0.0100.0025
Material Thickness0.00350.0025
Stacked ViaYesYes
Type I Capabilities single & Double DeepYesYes
Type II Capabilities Buried Vias with MicroviasYesYes
Type III CapabilitiesYesYes
Copper Filled MicroviaYesYes
Smallest Copper Filled Microvia0.0040.0025
Copper Filled Microvia Aspect Ratio0.75:11:01
Smallest Laser Microvia Hole Size0.0040.0025
Laser Via Aspect Ratio (Depth:Diameter)0.75:11:01

Layers1-16 layersMin Board Thickness(2-layer)0.2mm
Max Board Size635 × 1100mmMin Board Thickness(4-layer)0.6mm
Min Board Size20 × 30mmMin Inner-layer Thickness0.1mm
Min Trace0.1mmMin Annular Ring0.1mm
Min Space0.1mmMin Hole Location Tolerance±0.075mm
Min Hole Size0.2mmMin Hole Size Tolerance±0.05mm
Board Warp≤ 1°Min Outer Dimension Tolerance±0.1mm
Solder MaskGreen, Yellow, Red, Black, Blue, White
Surface FinishHAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board MaterialFR-4, High Tg FR-4, Thick Copper FR-4, Rogers, Taconic
Acceptable fileGerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM softwareGenesis, CAM350
