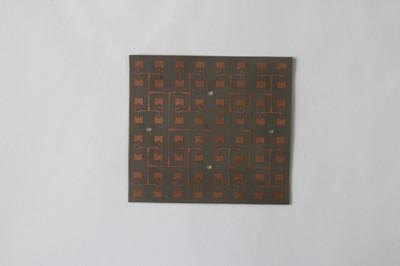

Rogers5880 2 Layer RF PCB 0.508MM Microwave Motion Sensor Board
Rogers5880 2 Layer RF PCB 0.508MM Microwave Motion Sensor Board
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Material :
Rogers
Layer :
2
Min line space :
5mil
Min line width :
5mil
Copper thickness :
1OZ
Board size :
79*79MM
Panel :
1
Description

Rogers5880 2 Layer RF PCB 0.508MM Microwave Motion Sensor Board

Key specifications/special features:
Rogers PCB
Rogers 4350B, Roger3003, Rogers4003,Roger 5880 and more material on stock
PCB thickness: 0.2-2mm+/-10%
Final copper: 0.5-10oz
Min hole: 0.2mm
Min line width/space: 4/4mil
Min hole copper: 20μm/25μm
Solder mask: green/blue/red/black/gray/white
Legend: white/black/yellow
Surface: OSP/HAL lead-free/immersion gold/immersion tin/
immersion silver/flash gold/hard gold
Outline: rout and score/V-cut
E-test: 100%
Certificates: UL, SGS, RoHS Directive-compliant, ISO
Files: Gerber Protel DXP Auto CAD PADs eagle
Testing: flying probe test, E-test, X-ray Inspection, AOI

PCB specialties:
PCB types: Rigid PCB/high frequency PCB/high TG PCB and more
PCB materials:Rogers/Taconic/F4B/Arlon and more
PCB finish: HAL/LFHAL/ENIG/immersion tin/OSP/immersion silver/flash gold/gold plated and more
PCB application: Satellite transceiver, Microwave sensors, RF transceiver,RF Transmitter,radar motion module,Microwave Sensor module,radar motion detector module,microwave source module,RF synthesizer modules,RF Power Amplifiers and more

Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital


Sufficient stock:
We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,
RO4232,RO4233,RO3003,RO3006,RO3010,RO3035,RO3203,RO3206,
RO3210,RO3730,RO5780,RO5880,RO6002,RO3202,RO6006,
Frequently-used is 4003C,4350B,5880
So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

High frequency:

Model Parameter thickness(mm) Permittivity(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO5880 0.254 0.508 0.762 2.20 ± 0.02
RO4350 0.254 0.508,0.8,1.524 3.5
RO4003 0.508 3.38
TACONIC TLF-35 0.8 3.5
TLA-6 0.254,0.8,1,1.5, 2.65
TLX-8 0.254,0.8,1,1.6 2.55
RF-60A 0.64 6.15
TLY-5 0.254,0.508,0.8 2.2
TLC-32 0.8,1.5,3 3.2
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2

Features of RT/duroid® 5870/5880/5880LZ High Frequency Laminates

  • Lowest electrical loss of any reinforced PTFE material
  • Low moisture absorption
  • Isotropic
  • Uniform electrical properties over frequency
  • Excellent chemical resistance, including solvents and reagents used in printing and plating
  • Ease of fabrication – cutting, shearing, machining
  • RoHS compliant, environment friendly
