HASL High Frequency PCB Board Rogers 4350B Fabrication Thick PWB Printed Wire
HASL High Frequency PCB Board Rogers 4350B Fabrication Thick PWB Printed Wire
Specifications
Brand Name :
XCE
Model Number :
XCEM
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Brand :
XCE
Model :
XCEM
Color :
green
Origin :
Shenzhen
Size :
7*5cm
Panel :
4*3
Description

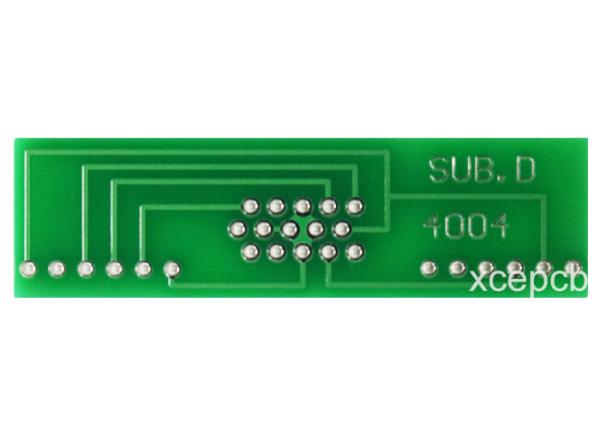

HASL High Frequency PCB Board Fabrication / Thick PWB Printed Wire Board


Why us ?

1)Professional engineer team --help you to check design and do engineering before production

2)Rich expierences in pcb production industry--provide high quality and competitive price pcb.

3) After-sales service--every problem you have will get our professional advice and solution.

4) Constant follow up-- make us have the fast reaction of your requirement.

5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated


Specification:

Technology

Materials

  • Multilayer PCBs with 18 layers
  • Rogers

PCB thickness

Final copper

  • 2.6 mm
  • 2OZ

Conductor track widths

Minimum drilling diameter

  • ≥ 90 µm
  • 0.2 mm

Contour production

Solder masks

  • Milling
  • Scoring
  • Photosensitive solder mask systems
  • UV solder mask system, screen printing

Surfaces

Additional printing



  • Immersion gold
  • Identification printing, inkjet
  • Component printing, screen printing
  • Through-hole printing
  • Peelable solder mask (green mask)
  • Masking tape
  • Plugging









Layer

12-26

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 6 oz

Size

Max. Board Size: 580mm×1100mm

Min. Drilled Hole Size: 0.2 mm (8 mil)

Min. Line Width: 4mil (0.1mm)

Min. Line Spacing: 4mil (0.1mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin,
Immersion Silver/Gold, OSP, Gold plating

Solder Mask Color

Green/Yellow/Black/White/Red/Blue

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling





Description:

Multilayer PCBs in form of multiple circuit layers stacked together.

Few already consider 2-layer circut boaders as multilayer, but generally speaking boards with at least 4 or more layers are considered as multilayer. 2-layer circuit boards are sometimes referred to as bi-layer. The upper limit for the amount of layers is wide open.

However, 4- and 6-layers dominate the multilayer area by taking about 90% of the market. Multilayer with up to 24 layers can be produced in our factory.
