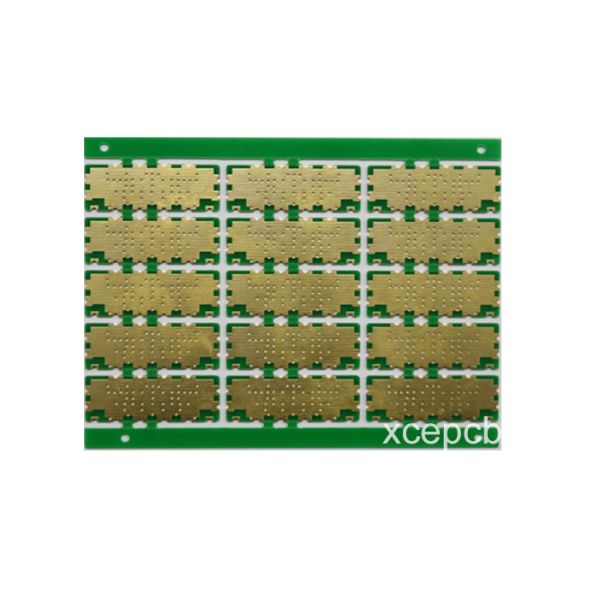

High Speed RF PCB Material Electronic Circuit Boards Double Layer Eco-friendly
High Speed RF PCB Material Electronic Circuit Boards Double Layer Eco-friendly
High Speed RF PCB Material Electronic Circuit Boards Double Layer Eco-friendly
High Speed RF PCB Material Electronic Circuit Boards Double Layer Eco-friendly
Specifications
Brand Name :
XCE
Model Number :
XCEH
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Material :
Rogers
Layer :
2
Color :
green
Min line space :
5mil
Min line width :
5mil
Copper thickness :
1OZ
Board size :
13*3cm
Panel :
5*2
Description

Advanced High Speed RF PCB Material Electronic Circuit Boards

Specification:

Radio frequency (RF) and microwave PCB’s are a type of PCB designed to operate on signals in the megahertz to gigahertz frequency ranges (medium frequency to extremely high frequency).

These frequency ranges are used for communication signals in everything from cellphones to military radars. The materials used to construct these PCB’s are advanced composites with very specific characteristics for dielectric constant (Er), loss tangent, and CTE (co-efficient of thermal expansion).

High frequency circuit materials with a low stable Er and loss tangent allow for high speed signals to travel through the PCB with less impedance than standard FR-4 PCB materials. These materials can be mixed in the same Stack-Up for optimal performance and economics.

Features

  • CTEr = +40/+50 ppm per °C (low); Tg (glass transition temperature) is 280°C
  • ER = 3.38/3.48 at 10.0 GHz
  • ER is constant to 40.0 GHz
  • ED (electro-deposited) copper only
  • Layer-to-layer thickness control = +/- 0.001
  • Fabrication costs are typical to slightly increased

Parameter:

o Item Data
1 Layer: 1 to 24 layers
2 Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
3 Board thickness: 0.20mm to 3.4mm
4 Copper thickness: 0.5 OZ to 4 OZ
5 Copper thickness in hole: >25.0 um (>1mil)
6 Max. Board Size: (580mm×1200mm)
7 Min. Drilled Hole Size: 4mil(0.1mm)
8 Min. Line Width: 3mil (0.075mm)
9 Min. Line Spacing: 3mil (0.075mm)
10 Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
11 Solder Mask Color: Green/Yellow/Black/White/Red/Blue
12 Shape tolerance: ±0.13
13 Hole tolerance: PTH: ±0.076 NPTH: ±0.05
14 Package: Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing
15 Certificate: UL,SGS,ISO 9001:2008
16 Special requirements: Buried and blind vias+controlled impedance +BGA
17 Profiling: Punching, Routing, V-CUT, Beveling
