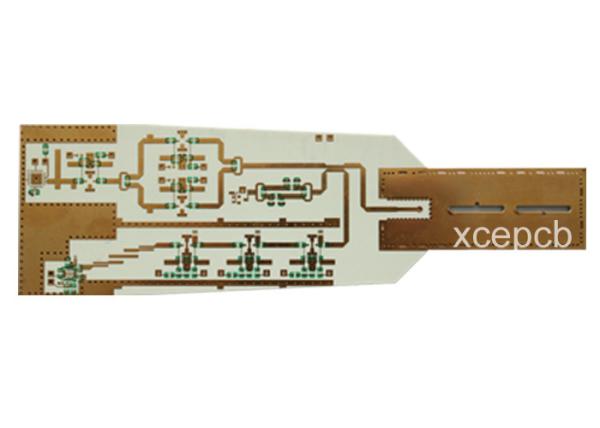

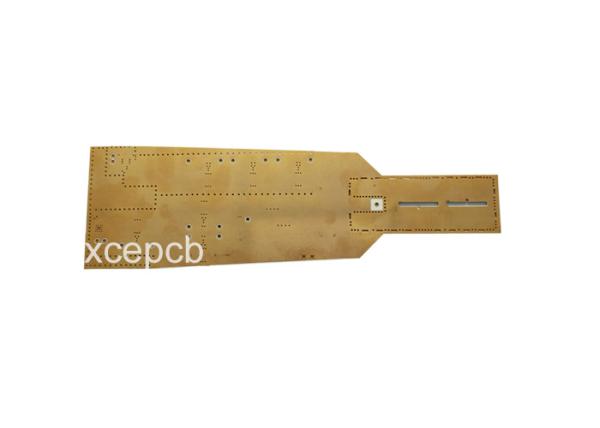

High Frequency Rogers RO3210 RF PCB Circuit Boards 0.025 Inch Thickness Fabricator
High Frequency Rogers RO3210 RF PCB Circuit Boards 0.025 Inch Thickness Fabricator
High Frequency Rogers RO3210 RF PCB Circuit Boards 0.025 Inch Thickness Fabricator
High Frequency Rogers RO3210 RF PCB Circuit Boards 0.025 Inch Thickness Fabricator
Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008,SGS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union, L/C, MoneyGram
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Base material :
Rogers
Solder mask :
White
Board THK :
0.025 inch
Type :
High frequency
Board size :
9*6 cm
Copper THK :
1OZ
Layer :
2
Min line space :
8mil
Min line width :
8 mil
Panel :
8*2
Origin :
China
Delivery :
DHL,Fedex,TNT etc.
Description

Rogers RO3210 RF PCB Circuit Boards 0.025inch Thickness Fabricator

Introduction:

RF is Radio Frequency, referring to the radio, a high-frequency signal. Look for board performance requirements, can be an ordinary FR4 epoxy glass fiber ,also be Teflon and other special microwave substrates.
RF board standards:
1, low-power RF PCB design, the main use of standard FR4 material (good insulation characteristics , uniform material, a dielectric constant ε = 4,10%).
2, RF of the PCB, the individual elements should be tight arrangement, to ensure that the shortest connection between the various elements.
3, for a PCB mixed-signal, RF and analog section should stay away from digital digital part (this distance is usually more than 2cm, at least 1cm), the digital part of the ground should be separated from the RF part.
4, the choice of working environment in the high frequency components, as far as possible the use of surface-mount devices. This is because the surface-mount components are generally small, the pin element is very short.

Technology:

Material

FR4(standard)

Isola / Nanya / ITEQ

FR4(Hi-Tg)

Isola / Nanya / ITEQ

Rogers

RO4003 /4350 /3010 /RT Duroid 5880 / 5870

Arlon

Diclad 25N / 25FR / 870 / 880

Taconic

TLY / TLC / RF35 / RF30

GETEK

RG200D / ML200D

Aluminum PCBs

Di-electric materials : FR4 / Bergquist / Rogers / Thermagon

Copper weight

1 ~ 5 oz internal & external layers

Drilling

Min. Drilled Hole Size

10 mil ( 6 ~ 8 mil finished)

Annular Ring

5 mil(normal) / 4 mil (for Laser vias)

Registration

± 3 mil

Max. Aspect Ratio

10 :1

Hole Size Tolerance

+/- 3 mils (PTH) ; +/- 2 mils (N-PTH)

Hole Roughness

< 0.8 mil

Min. Cu Plating in Holes

> 0.8mil, Ave. 1 mil

Laser drill

available

Image Transfer

Min. Trace and space

4 / 4 mil

SMT / BGA.Pitch

10 mils for SMT / 30 mils for BGA

Trace/space Tolerance

± 20% (or +/- 10% per IPC class 3)

Solder Mask

LPI Solder Mask

Green(glossy or matte), Blue, Red, Black, Yellow

Via Plugging

min. 80% filled

Solder Mask ink

Taiyo & Tamura

Registration

± 2 mil

Min Solder Dam

2.5 mil

Thickness

0.5 ~1.5 mil

Silkscreen

White, Yellow, Black

Min. silkscreen width

8 mil

CNC Dimension

± 5 mil

Punch Dimension

± 4 mil

Blind Vias / Buried Vias

Yes

VIP (Via in Pad)

Yes (Non-conductive epoxy resin-filled or Cu filled)

Impedance control

± 10%

Surface Finish

HASL

200 ~ 500 μ"

Pb free HASL

100 ~ 500 μ"

Immersion Gold

1 ~ 5 μ"

Immersion Silver

6 ~ 12 μ"

Immersion Tin

25 ~ 40 μ"

Electolytic Gold

Yes

Gold Finger Plating

5 ~ 40 μ"

OSP(Entek)

yes

Solder Mask Coating Method

Silkscreen printing (Double or triple coatings available)

Carbon Ink

20 Ω

Peelable mask

Thickness = 0.3 mm

Pumice Pre-treatment

Available
