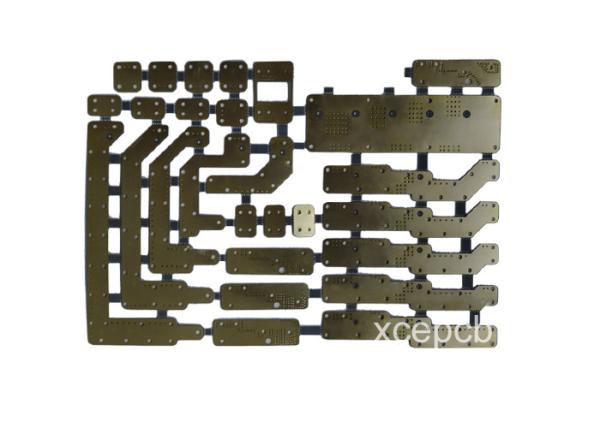

Satellite Broadcast Radio Transmission Taconic PCB Circuit Board Low Loss Laminate

Specification:

Layer: 2
Origin: Shenzhen
Board size: 14*12cm
Surface finish: immersion gold
Board thickness:0.2mm
Copper thickness: 1OZ
Working temperature: -100-+150℃

Parameter

XCE PCB technical specifications
Annual stock Material Rogers,Taconic,Arton,Isola,F4B,TP-2.FR-4,High TG,Halogen free
Layer No. 1~16
Min board thickness

2 layer0.2mm

4 layer0.4mm

6 layer 0.6mm

8 layer 0.8mm

10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance T≥0.8mm±8%.,T<0.8mm±5%
Wall hole copper thickness >0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance >1012Ωnormal
Through-hole resistance <300Ωnormal
Electric strength >1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity >6H
Thermal stress 288℃20Sec
Testing voltage 50-300V
Min buried blind via 0.2mm(8mil)
Outer copper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickless 0.075mm-5mm
Taphole aperture 0.2mm-0.6mm
Special technology Indepedance,Blind buried via,thick gold,aluminum PCB
Surface finish HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating

Advantage:

Specialized in high frequency PCB, double-sided multi-layer PCB manufacturer,

maximum processing layers 28 layers, the company has a full range of domestic and imported

high frequency material(Rogers ROGERS, TACONIC series, high frequency microwave PTFE circuit

boards, Teflon Teflon, PTFE circuit boards, dielectric constant ranging from 2.2 10.6), to provide quality

and efficient products for you
