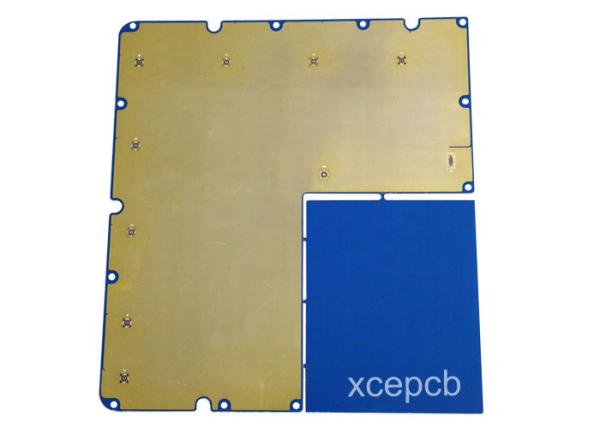

High Frequency Custom Taconic PCB Circuit Board for Satellite Communication Field
High Frequency Custom Taconic PCB Circuit Board for Satellite Communication Field
High Frequency Custom Taconic PCB Circuit Board for Satellite Communication Field
High Frequency Custom Taconic PCB Circuit Board for Satellite Communication Field
Specifications
Brand Name :
XCE
Model Number :
XCET-1
Certification :
CE,ROHS, FCC,ISO9008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Product name :
Taconic PCB Circuit Board
Base material :
:Taconic
Surface finish :
Immersion gold
Layer of number :
6
Board size :
26*22cm
Copper THK :
35UM
Description

Taconic high frequency pcb circuit board used in satellite communication field

Specification:

Model

XCET-1

Layer of number

6

Origin

China

Copper foil

0.035mm

Surface finish

Immersion gold

DF

0.0030@10GHztong

Copper THK

35UM

Working temperature

-100～+150℃

Quick detail:

  • Base material:Taconic
  • Permitivity:10
  • Profile tolerance: ±0.10.0-0.13mm
  • Finish board size: 26*22cm

Application:

Communications, power, instrumentation, computer networks,

digital products, industrial control, scientific, educational,

medical, aerospace and defense, and other high-tech fields.

Parameter

  • Line width control: ± 0.02mm
  • Hole copper thickness: ≥ 20μм
  • Thermal shock Thermal stress: 288 ° C.10sec.
  • Permitivity: ε2.1-10.0
  • Punching or routing.tolerance:± 0.10.0-0.13mm
  • Final product thickness:0.5,0.8,1.0,1.2,1.6mm
  • Base copper thickness:0.5 1.0 OZ
  • Solder Mask:Taiyo PSR4000.Tamura DSR2200
  • Solder mask thickness on tracks:20-30 μм

Advantage:

Shenzhen XCE Electronics Co., Ltd. is specialized in high frequency PCB, double-sided multi-layer PCB

manufacturer,

maximum processing layers 28 layers, the company has a full range of domestic and imported

high-frequency material

(Rogers ROGERS, TACONIC series, high-frequency microwave PTFE circuit boards, Teflon Teflon,

PTFE circuit boards, dielectric constant ranging from 2.2-10.6),

to provide quality and efficient products for you
