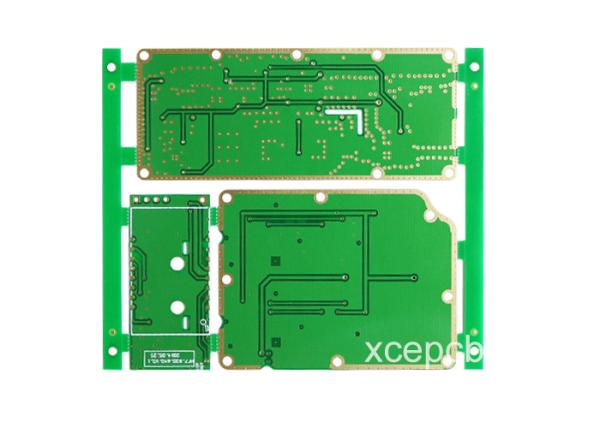

6 Layer FR-4 PCB Board For Household Appliances Washing Machine Circuit Boards
6 Layer FR-4 PCB Board For Household Appliances Washing Machine Circuit Boards
6 Layer FR-4 PCB Board For Household Appliances Washing Machine Circuit Boards
6 Layer FR-4 PCB Board For Household Appliances Washing Machine Circuit Boards
Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union, L/C, MoneyGram
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Base material :
FR4
Solder mask :
Green
Board THK :
1.2MM
Surface finish :
HASL lead free
Description

6 Layer FR PCB Board For Household Appliances Washing Machine


Specification:

Size: 18*12CM

Layer: 6layer

Color: green

Board thickness: 1.2MM

Cu thickness: 1OZ

Min line width and space: 10mil


Parameter:

Specifications

 Details

Layer counting

 6 layers
Max board size 550*1000mm
Minimum board thickness

4layers 0.40mm

6layers 0.80mm

8layers 1.0mm

10layers 1.2mm
Minimum line space 0.10mm
Hole and wall copper thickness 0.025mm
Metallization aperture public errand ± 0.08mm
Not metallization aperture public errand ± 0.025mm
Hole location public errand ± 0.05mm
Appearance dimension tolerance ± 0.10mm
Weld the bridge minimumly 0.10mm
Insulating resistance 1E+12Ω(normality)
Hot impact 288 point 20 degrees centigrade(second)
Twist and crooked ≤0.7%
Resist the electirc intensity >1.3KV/mm
Resist the intensity of stripping 1.4N/mm
Hinder the intensity of the solder flux >6H
Fire-restardant 94V-0
Impedance Controlling ±5%


Application:


Our FR4 PCBs could be kindly used in many fields includes communication, computers, medical equipment, home automation product, CCTV product, consumer electronics, automobile industry,etc. Through many years experience in this line, we have gained a good reputation and considered as reliable and long-term cooperation manufacturer at home and abroad.


Others:

We are certified by ISO13485, TS16949, ULE332411, ISO14001, ISO9001
70% of our customers are from Europe and North America
We use very good material, such as KB, Shengyi, etc
100% of our prodcuts are tested and 100% pass before delivery
Fast samples for your test
