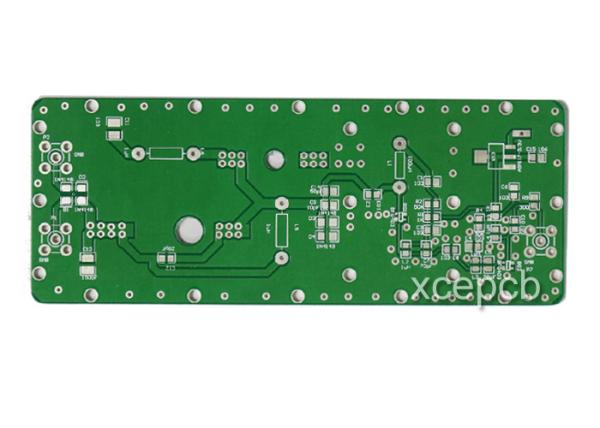

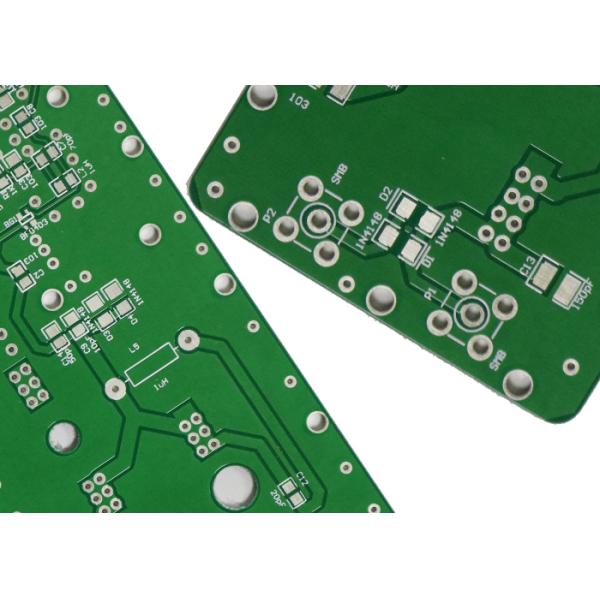

Electronic High TG180 FR4 Multilayer PCB Double Sided Circuit Boards

Specification:

Technology

Materials
  • Multilayer PCBs with 16 layers
  • FR4

PCB thickness

Final copper
  • 1.0mm
  • 70µm

Conductor track widths

Minimum drilling diameter
  • ≥ 90 µm
  • 0.2 mm

Contour production

Solder masks
  • Milling
  • Scoring
  • Photosensitive solder mask systems
  • UV solder mask system, screen printing

Surfaces

Additional printing

  • HASL lead free
  • Identification printing, inkjet
  • Component printing, screen printing
  • Through-hole printing
  • Peelable solder mask (green mask)
  • Masking tape
  • Plugging

Layer

12-26

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 6 oz

Size

Max. Board Size: 580mm×1100mm

Min. Drilled Hole Size: 0.2 mm (8 mil)

Min. Line Width: 4mil (0.1mm)

Min. Line Spacing: 4mil (0.1mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin,

Immersion Silver/Gold, OSP, Gold plating

Solder Mask Color

Green/Yellow/Black/White/Red/Blue

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling
