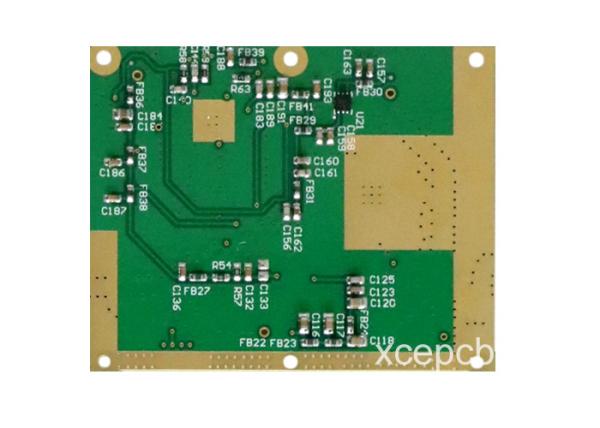

Heavy Copper 12 Layer Fr4 Multilayer PCB Boards With Through-hole Plating


Specification:

Technology

Materials
  • Multilayer PCBs with 12 layers
  • FR4

PCB thickness

Final copper
  • 2.0 mm
  • 100µm

Conductor track widths

Minimum drilling diameter
  • ≥ 90 µm
  • 0.2 mm

Contour production

Solder masks
  • Milling
  • Scoring
  • Photosensitive solder mask systems
  • UV solder mask system, screen printing

Surfaces

Additional printing



  • HASL lead free
  • Identification printing, inkjet
  • Component printing, screen printing
  • Through-hole printing
  • Peelable solder mask (green mask)
  • Masking tape
  • Plugging

Multilayer PCBs in form of multiple circuit layers stacked together.

Few already consider 2-layer circut boaders as multilayer, but generally speaking boards with at least 4 or more layers are considered as multilayer. 2-layer circuit boards are sometimes referred to as bi-layer. The upper limit for the amount of layers is wide open.

However, 4- and 6-layers dominate the multilayer area by taking about 90% of the market. Multilayer with up to 24 layers can be produced in our factory.


Our Quality:

We are committed to providing the HIGHEST QUALITY PCBs that not only meet but exceed our customers’ expectations and requirements. Our facilities hold a list of quality certifications (IS9001, TS16949, UL) and the systems to support them. For quality control purposes, we have invested extensively in inspection machinery, including:
High-voltage E-test
Flying probe machine
Digital computer metallographic microscope
Copper thickness tester
Solderability detecting machine
Photoelectricity balance
X-ray gold thickness tester
Backlighting tester
Automatic optical inspector


Parameter:

Layer

12

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 6 oz

Size

Max. Board Size: 580mm×1100mm

Min. Drilled Hole Size: 0.2 mm (8 mil)

Min. Line Width: 4mil (0.1mm)

Min. Line Spacing: 4mil (0.1mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin,
Immersion Silver/Gold, OSP, Gold plating

Solder Mask Color

Green/Yellow/Black/White/Red/Blue

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling


Product tags

multilayer printed circuit board

,

copper plating pcb

,

printed circuit board multilayers
