Arlon TC350 High Frequency PCB HF Circuit Boards PCB Fabrication Double Layer 1 oz Copper
Arlon TC350 High Frequency PCB HF Circuit Boards PCB Fabrication Double Layer 1 oz Copper
Arlon TC350 High Frequency PCB HF Circuit Boards PCB Fabrication Double Layer 1 oz Copper
Arlon TC350 High Frequency PCB HF Circuit Boards PCB Fabrication Double Layer 1 oz Copper
Specifications
Brand Name :
XCE
Model Number :
XCEH
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Surface finish :
OSP
Board THK :
0.762mm
Product name :
high frequency pcb
Size :
15*13
Description

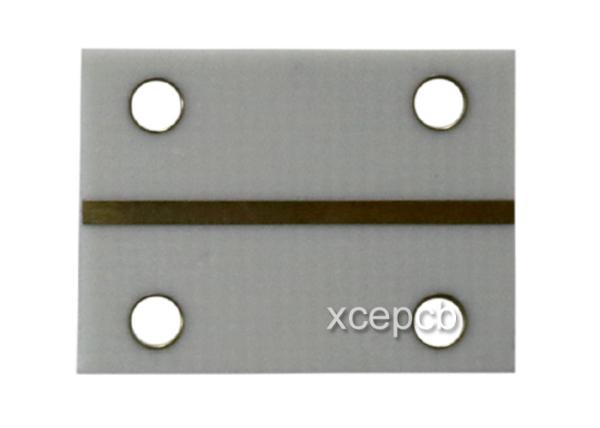

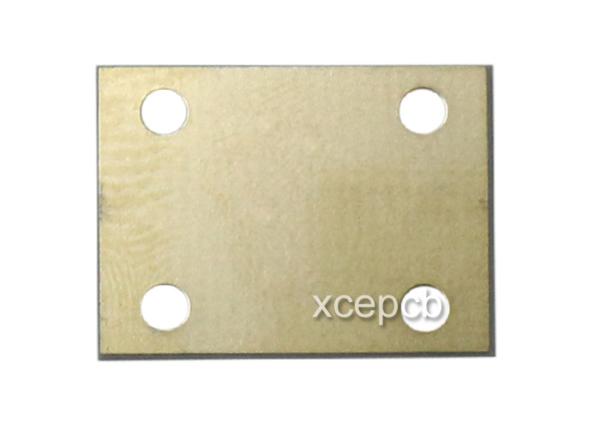

Arlon TC350 High Frequancy PCB HF Circuit Boards Fabricator

Quick detail:

Model: XCEH Base Material: Arlon
Layer: 2 Surface finish: OSP
Min line space: 10mil Min line width: 10mil

Specification:

High frequency PCB

1. Base material: Arlon TC350

2. Board thickness: 0.762mm

3. Copper thickness: 1 oz

3. Surface finish: HASL RoHS

4. Solder mask: No.

5. Silkscreen: No

Parameter:

Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance　　T≥0.8mm±8%,T＜0.8mm±5%
Wall hole copper thickness　　 ＞0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance ＞1012Ωnormal
Through-hole resistance ＜300Ωnormal
Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
Special technology Inpedance,blind buried via,thick gold,aluminumPCB
Surface finish HASL,lead free,Immersion gold,immersion tin,immersion silver,ENIG,Blue glue,gold plating
