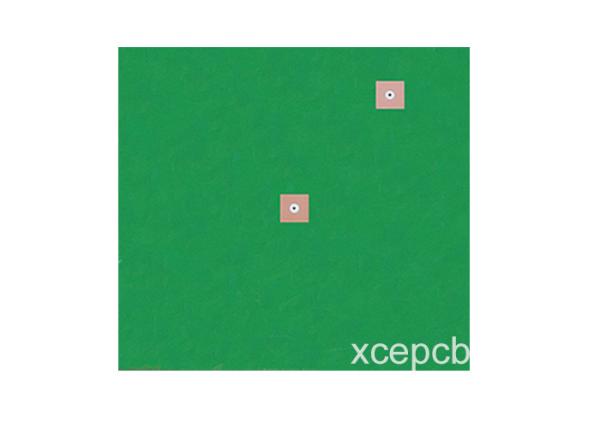

Rogers Single Side PCB Printed Circuit Boards with One Side Copper Clad 1 - 16 Layer
Rogers Single Side PCB Printed Circuit Boards with One Side Copper Clad 1 - 16 Layer
Rogers Single Side PCB Printed Circuit Boards with One Side Copper Clad 1 - 16 Layer
Rogers Single Side PCB Printed Circuit Boards with One Side Copper Clad 1 - 16 Layer
Specifications
Brand Name :
XCE
Model Number :
XCES
Certification :
CE,FCC,Rohs,ISO9001,SGS,UL
Place of Origin :
China
MOQ :
1PCS
Price :
USD 1-500
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
10000000pcs / per month
Packaging Details :
inner vacuum package, outer carton box
Color :
White
Layer :
1
Board size :
9*7cm
Board THK :
1.2mm
Cu THK :
35UM
Panel Size :
5*2
Description

Rogers Single Sided PCB Printed Circuit Boards One Side Copper Clad

Layer No. 1-16
Min board thickness 2 layer 0.2mm
4 layer 0.4mm
6 layer 0.6mm
8 layer 0.8mm
10 layer 1.0mm
Max panel size 508*610mm
Board thickness tolerance　　 T≥0.8mm±8%,T＜0.8mm±5%
Wall hole copper thickness　　 ＞0.025mm(1mil)
Finished hole 0.2mm-6.3mm
Min line width 4mil/4mil(0.1/0.1mm)
Min bonding pad space 0.1mm(4mil)
PTH aperture tolerance ±0.075mm(3mil)
NPTH aperture tolerance ±0.05mm(2mil)
Hole site deviation ±0.05mm(2mil)
Profile tolerance ±0.10mm(4mil)
Board bend&warp ≤0.7%
Insulation resistance ＞1012Ωnormal
Through-hole resistance ＜300Ωnormal
Electric strength ＞1.3kv/mm
Current breakdown 10A
Peel strength 1.4N/mm
Soldmask regidity ＞6H
Thermal stress 288℃20Sec
Testing voltage 50-300v
Min buried blind via 0.2mm(8mil)
Outer cooper thickness 1oz-5oz
Inner cooper thickness 1/2 oz-4oz
Aspect ratio 8:1
SMT min green oil width 0.08mm
Min green oil open window 0.05mm
Insulation layer thickness 0.075mm-5mm
Aperture 0.2mm-0.6mm
Product tags

copper clad sheet for pcb

,

multilayer printed circuit board

,

pcb printed circuit board assembly
