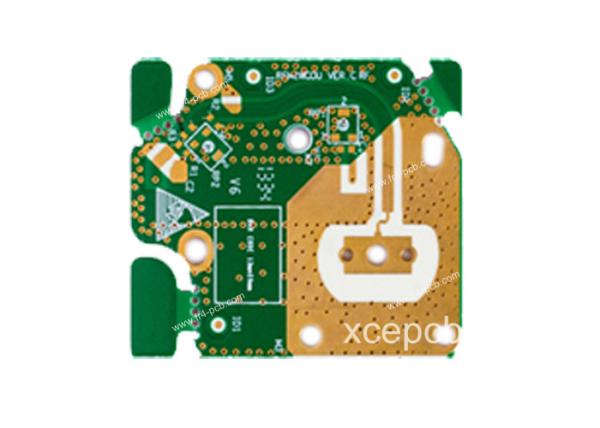

RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board
RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board
Specifications
Brand Name :
XCE
Model Number :
XCER
Certification :
CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Surface finish :
ENIG
Board THK :
0.508mm
Product name :
high frequency pcb
Size :
2*2cm
Description

RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board

Specification:

  • Material: Rogers
  • Layer count: 4
  • Board thickness: 0.508mm
  • Surface techniques: Pb/Sn hasl and white solder mask
  • Minimum hole size: 0.3mm
  • Application: mobile phone board

Description:

The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

Depending on various parameters, HF signals are reflected on circuit board, meaning that theimpedance (dynamic resistance) varies with respect to the sending component. To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest level of process control.

Critical for the impedances in high frequency circuit boards are principally the conductor trace geometry, the layer buildup, and the dielectric constant (er) of the materials used.

Parameter:

PRODUCT’S DETAILS

Raw Material

Rogers

Layer Count

4-Layer

Board Thickness

0.508mm

Copper Thickness

35UM

Surface Finish

ENIG

Solder Mask

green

Silkscreen

White

Min. Trace Width/Spacing

0.075/0.075mm

Min. Hole Size

0.25mm

Hole Wall Copper Thickness

≥20μm

Measurement

300×400mm

Packaging

Inner: Vacuum-packed in soft plastic bales
Outer: Cardboard Cartons with double straps

Application

Communication,automobile,cell,computer,medical

Advantage

Competitive Price,Fast Delivery,OEM&ODM,Free Samples,

Special Requirements

Buried And Blind Via, Impedance Control, Via Plug,
BGA Soldering And Gold Finger Are Acceptable

Certification

UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE

Main Export Markets:

  • Western Europe
  • Asia
  • Australasia
  • Central/South America
  • Eastern Europe
  • Mid East/Africa
  • North America
