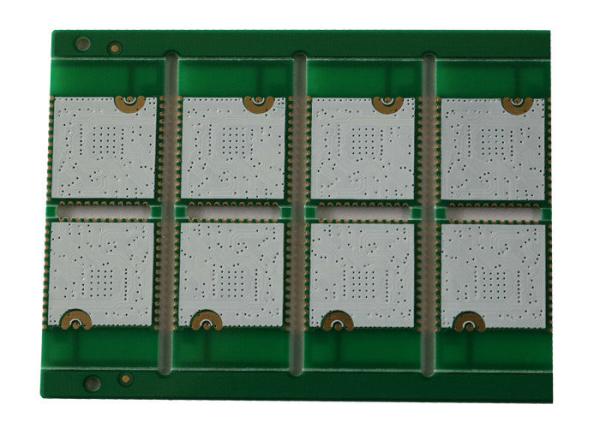

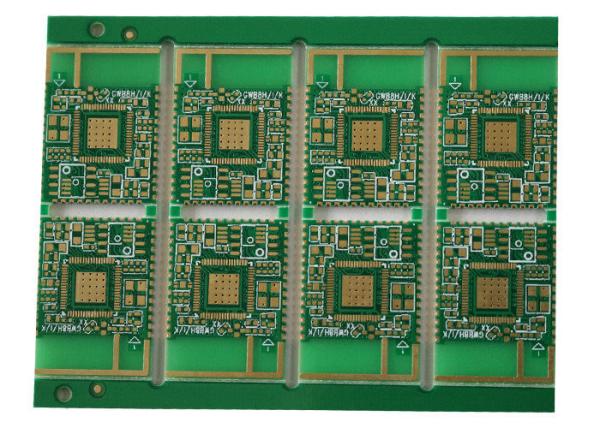

Half Hole Single Sided PCB Board Fabrication High Precision Rogers 4350B
Half Hole Single Sided PCB Board Fabrication High Precision Rogers 4350B
Half Hole Single Sided PCB Board Fabrication High Precision Rogers 4350B
Half Hole Single Sided PCB Board Fabrication High Precision Rogers 4350B
Specifications
Brand Name :
XCE
Model Number :
XCEF
Certification :
CE,ROHS, FCC,ISO9008,SGS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag  outer: carton box
Product name :
Rogers high frequency pcb
Base material :
rogers 4350B
Thickness :
0.8 mm
Surface :
Immersion gold
Board size :
3*5 cm
Application :
Aerospace defense
Description

Half Hole Single Sided PCB Board Fabrication High Precision Rogers 4350B ​

Specification:

Thickness

0.8mm

Model

XCEF

Surface

ENIG

Origin

Shenzhen

Material

Rogers

Packaging

bubble bag

Size

3*5cm

Brand

XCE

Quick detail:

Prodcction time:3-10 days

Shipping time:3-7 days according to express

Parameter

Through-hole resistance

<300Ωnormal

Electric strength

>1.3kv/mm

Current breakdown

10A

Peel strength

1.4N/mm

Soldmask regidity

>6H

Thermal stress

288℃20Sec

Testing voltage

50-300V

Min buried blind via

0.2mm(8mil)

Outer copper thickness

1oz-5oz

Inner cooper thickness

1/2 oz-4oz

Min green oil open window

0.05mm

Insulation layer thickless

0.075mm-5mm

Taphole aperture

0.2mm-0.6mm

Special technology

Indepedance,Blind buried via,thick gold,aluminum PCB

Surface finish

Immersion Gold

Board thickness tolerance

T≥0.8mm±8%.,T<0.8mm±5%

Wall hole copper thickness

>0.025mm(1mil)

Finished hole

0.2mm-6.3mm

PTH aperture tolerance

±0.075mm(3mil)

NPTH aperture tolerance

±0.05mm(2mil)

Hole site deviation

±0.05mm(2mil)

Profile tolerance

±0.10mm(4mil)

Board bend&warp

≤0.7%

Insulation resistance

>1012Ωnormal

Advantage:

12 years pcb production experience

Full series high frequency pcb material raw

Newest production machine and top technology

experienced and professional teams

Description:

With advanced foreign technology supports and domestic 3G/4G device manufacturer in microwave

pcb field which lead our experienced hi-frequencey researching team to one step ahead of the line of

printed circuit board business,we are hornored to obtain sound reputations over our wolrdwide customers

on the basis of fine qulity,prompt delivery,satisfied after sales service for may years and we assure our

ustomers that we will return the favors with more and more superior products in the near future.
