FM AM Radio Electronic Pcb Board For Mobile 3G / 4G Base Station
FM AM Radio Electronic Pcb Board For Mobile 3G / 4G Base Station
FM AM Radio Electronic Pcb Board For Mobile 3G / 4G Base Station
FM AM Radio Electronic Pcb Board For Mobile 3G / 4G Base Station
Specifications
Brand Name :
XCE
Model Number :
XCER
Certification :
CE,ROHS, FCC,ISO9008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T,Western union
Supply Ability :
1, 000, 000 PCS / week
Delivery Time :
5-10 days
Packaging Details :
inner: vacuum-packed bubble bag outer: carton box
Product name :
RF PCB
Layer of number :
4
Surface finish :
ENIG
Base material :
Rogers
Cu THK :
1OZ
Board THK :
1.6mm
Description

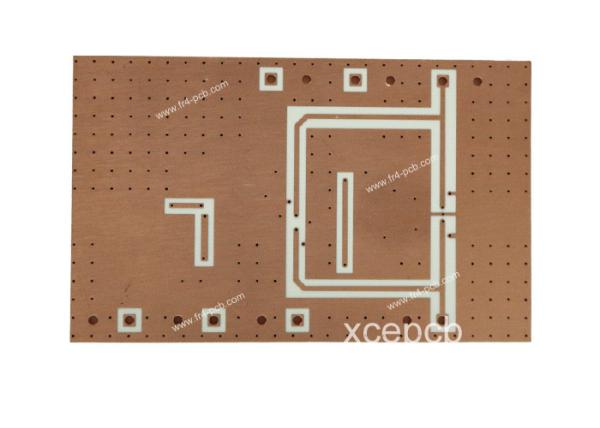

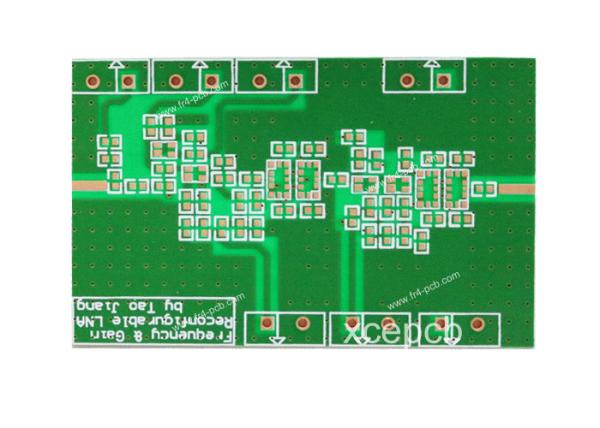

FM AM Radio RF PCB For Mobile 3G / 4G Base Station With High Frequency Rogers Material

Quick detail:

Layer of number

4

Surface finish

enig

Base material

Rogers

Cu THK

1OZ

Board THK

1.6mm

File format

Gerber/CAD

Board size

8*5cm

Solder mask

Green/blue/black/red

Advantage:

1 laser drill hole machine

2 Using best bonding material raw

3 main in high frequency pcb

4 FR4+ROGERS mixed compression is available.

Description:

Shenzhen Xinchenger Electronics is a leading manufacturer of high frequency pcb circuit more than 6

years in shenzhen.

We concentrate on high difficult,high precision pcb circuit board production.3mil line space and width is

available here

If you have any needs,please do not hesitate to send us inquiry.

Application:

Industrial automation controls,Wireless and wired telecommunication

Medical instrumentation,Transportation and so on.

Specification:

Annual stock meterial

Rogers,Taconic,Arton,Isola,F4B,TP-2,FR4,High TG,Halogen free

Layer No.

1-16

Min board thickness

2 layer 0.2mm

4 layer 0.4mm

6 layer 0.6mm

8 layer 0.8mm

10 layer 1.0mm

Max panel size

508*610mm

Board thickness tolerance

T≥0.8mm±8%,T＜0.8mm±5%

Wall hole copper thickness

＞0.025mm(1mil)

Finished hole

0.2mm-6.3mm

Min line width

4mil/4mil(0.1/0.1mm)

Min bonding pad space

0.1mm(4mil)

PTH aperture tolerance

±0.075mm(3mil)

NPTH aperture tolerance

±0.05mm(2mil)

Hole site deviation

±0.05mm(2mil)

Profile tolerance

±0.10mm(4mil)

Board bend&warp

≤0.7%

Insulation resistance

＞1012Ωnormal

Through-hole resistance

＜300Ωnormal

Electric strength

＞1.3kv/mm

Current breakdown

10A

Peel strength

1.4N/mm

Soldmask regidity

＞6H

Thermal stress

288℃20Sec

Testing voltage

50-300v

Min buried blind via

0.2mm(8mil)

Outer cooper thickness

1oz-5oz

Inner cooper thickness

1/2 oz-4oz

Aspect ratio

8:1

SMT min green oil width

0.08mm

Min green oil open window

0.05mm

Insulation layer thickness

0.075mm-5mm

Aperture

0.2mm-0.6mm

Special technology

Inpedance,blind buried via,thick gold,aluminumPCB

Surface finish

HASL,lead free,Immersion gold,immersion tin,immersion silver,

ENIG,Blue glue,gold plating

Product tags

dual band base station radio

,

bluetooth tower speaker with fm radio

,

mobile dual band radio
