Specifications
Brand Name :
Gofun
Model Number :
GFM-APL, GFM-PPL
Certification :
CE, ISO
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per year
Delivery Time :
45~120 days
Packaging Details :
International standard package for shipping
Warranty :
1 Year
Voltage :
220/ 380/ 440V, according to customers
Material :
Food standard SUS 304, 316, customize
Name :
apple waxing machine/fruit processing line
Capacity :
20T/day ~ 1500T/day, customize
Application :
Apple, pear, and others
Product name :
Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line
Final products :
NFC juice, clear juice, concentrate juice, beverage
Sterilizing type :
UHT (ultra-high temperature processing)
After-sales service provided :
Engineers available to service machinery overseas
Description

Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line

Project Description

Our processing lines for apples and pears are capable of producing a diverse range of final products using fresh fruits as the primary ingredient. These final products include clear and cloudy fruit juice, beverages, purees, and jams. We offer a variety of packaging options, such as aseptic bags, sachets, standing pouches, metal cans, PP containers, PET bottles, glass bottles, and gables. Our apple and pear products are highly sought after worldwide due to their exceptional quality and taste.

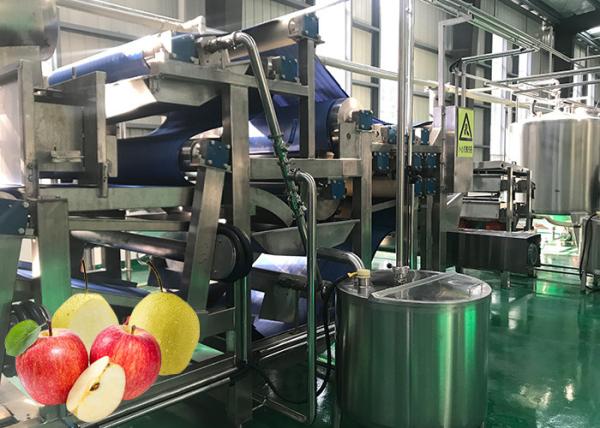

At Shanghai Gofun, we offer a comprehensive range of apple/pear juice processing machines that enable our clients to produce high-quality products at controlled costs. Our belt press extractors are specifically designed to achieve high juice yields with low sedimentation, resulting in superior quality fruit/vegetable juices. We utilize advanced electronic monitoring and control systems to ensure that our machines are easy to operate and highly reliable. Additionally, we provide comprehensive engineering services, installation supervision, commissioning support, and operator training to ensure that our clients are fully equipped to operate our high-tech machinery and complete their fruit production processes with confidence.

Raw material Fresh apple & pear
End product Cloudy juice, clear juice, pulper, concentrate juice
Processing capacity From 20 T/day to 1500 T/day
Efficient input 75% raw fruit (25% as waste, peels, and seeds)
Fruit consistency 10-12% Brix
Product consistency 70~72Brix for concentrated juice
End package Aseptic bag, metal can, glass bottle, PET bottle, etc.

Features

Bubble washing machine

① Totally made by SUS304 Stainless Steel.

② Produce water bubbles by air blower to wash fresh tomatoes.
Fruit Sorting Machine
  • Totally made by SUS 304,
  • Used for selecting the bad tomatoes by workers after washing.

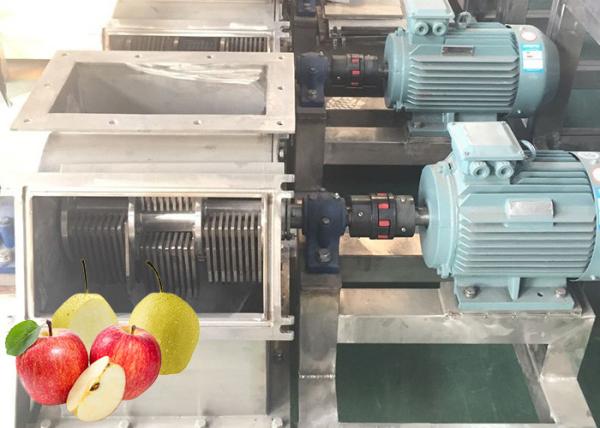

Fruit Crusher

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ It is much useful for crushing many kinds of fruits or vegetables.
Tubular type Pre-heater

① Totally made by SUS 304 Stainless Steel.

② It is used to improve the juice yield and protect the color of the product.
Pulping & Refining

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.
Force-Circulation Evaporation

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ We have single-effect, double-effect, triple-effect, and multi-effect evaporators for choice.
Tube-in-tube Sterilizer

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ According to different productss and requirements, we have a Tubular sterilizer, Tube-in-tube sterilizer.
Aseptic Bag Filling

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ Suitable for filling aseptic bags of different sizes.

Advantages

Our apple/pear processing line, developed by Shanghai Gofun Machinery Company, is designed with a focus on efficiency, water conservation, high extraction rates, quality control, and operator safety. Our processing line employs advanced technology to ensure that the final products meet the highest quality and safety standards. Additionally, we prioritize the safety of our operators by implementing stringent safety controls throughout the production process.

Flowchart

Apple/Pear Juice Processing Line

CLEAR JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

CLOUDY JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line

Related Machine

Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing LineFood Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing LineFood Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line

Company Information

Gohun Company provides turnkey solutions not only for tomato paste production lines, but also for processing and packaging lines for apples, pears, peaches, mangoes, apricots and other fruits and vegetables, with a wide range of customers from both fields. Acclaimed domestic and foreign markets. The machines have already been exported all over the world, including Asian countries, African countries, South American countries, as well as European and American countries.Gofun Company aims to produce excellent food machines and contribute to global agriculture. increase. We are sincerely committed to great prospects and mutually beneficial relationships with all people and friends around the world!

Our Services

1. Technical support

2. Marketing advice

3. Final packing suggestion and design

4. Factory building and design

After-Sales Service

1. Oversea technical support

2. Oversea equipment maintenance service

3. English speaking engineers available to provide technical support
