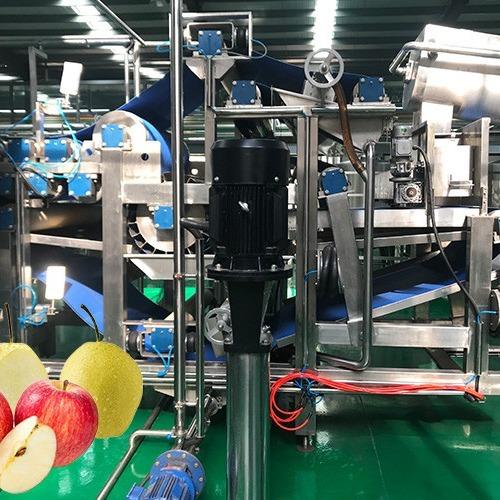

Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Specifications
Brand Name :
Gofun
Model Number :
GFM-APL, GFM-PPL
Certification :
CE, ISO
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 sets per year
Delivery Time :
45~120 days
Packaging Details :
International standard package for shipping
Warranty :
1 Year
Voltage :
220/ 380/ 440V, according to customers
Material :
Food standard SUS 304, 316, customize
Capacity :
20T/day ~ 1500T/day, customize
Application :
Apple, pear, and others
Product name :
Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line
Final products :
NFC juice, clear juice, concentrate juice, beverage
Sterilizing type :
UHT (ultra-high temperature processing)
After-sales service provided :
Engineers available to service machinery overseas
Power(w) :
7.5kw
Condition :
New
Description

Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line

Project Description

The apple and pear processing lines are designed to produce a wide range of final products from fresh apples and pears. These products include clear fruit juice, cloudy fruit juice, beverages, purees, and jams. The packaging options available for these products are aseptic bags, sachets, standing pouches, metal cans, PP containers, PET bottles, glass bottles, and gables. Apple and pear products are highly popular worldwide due to their delicious taste and nutritional value.

Shanghai Gofun offers a comprehensive range of apple and pear juice processing machines that enable the production of high-quality products while maintaining controlled costs. The Gofun belt press extractors are designed to maximize juice yields and minimize sedimentation, resulting in high-quality fruit and vegetable juices. The electronic monitoring and control system ensures easy operation and reliable performance of the machinery.

In addition to providing top-notch processing equipment, Gofun also offers comprehensive engineering services, installation supervision, commissioning support, and operator training. This ensures that workers are well-equipped to operate the advanced machinery and successfully complete the entire fruit production process.

Raw material Fresh apple & pear
End product Cloudy juice, clear juice, pulper, concentrate juice
Processing capacity From 20 T/day to 1500 T/day
Efficient input 75% raw fruit (25% as waste, peels, and seeds)
Fruit consistency 10-12% Brix
Product consistency 70~72Brix for concentrated juice
End package Aseptic bag, metal can, glass bottle, PET bottle, etc.

Features

Bubble washing machine

① Totally made by SUS304 Stainless Steel.

② Produce water bubbles by air blower to wash fresh tomatoes.
Fruit Sorting Machine
  • Totally made by SUS 304,
  • Used for selecting the bad tomatoes by workers after washing.

Fruit Crusher

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ It is much useful for crushing many kinds of fruits or vegetables.
Tubular type Pre-heater

① Totally made by SUS 304 Stainless Steel.

② It is used to improve the juice yield and protect the color of the product.
Pulping & Refining

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.
Force-Circulation Evaporation

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ We have single-effect, double-effect, triple-effect, and multi-effect evaporators for choice.
Tube-in-tube Sterilizer

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ According to different productss and requirements, we have a Tubular sterilizer, Tube-in-tube sterilizer.
Aseptic Bag Filling

① Totally made by SUS304 Stainless Steel.

② It combines Italian technology and conforming to Euro-standard.

③ Suitable for filling aseptic bags of different sizes.

Advantages

The apple and pear processing line from Shanghai Gofun machinery company is running with high effective, water-saving, high extracting rate, safety quality control for the final product, safety control for operators, etc.

Flowchart

Apple/Pear Juice Processing Line

CLEAR JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

CLOUDY JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line

Related Machine

Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing LineFood Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing LineFood Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line

Company Information

Gofun Company offers comprehensive turnkey solutions not only for tomato paste production lines but also for processing and packaging lines for various fruits and vegetables such as apples, pears, peaches, mangoes, apricots, and more. With a wide range of customers in both domestic and international markets, Gofun has gained acclaim for its high-quality machines.

The company's machines have been exported worldwide, reaching Asian countries, African countries, South American countries, as well as European and American countries. Gofun Company is dedicated to producing excellent food machines and contributing to the advancement of global agriculture. Their aim is to foster mutually beneficial relationships and create great prospects with individuals and friends from all around the world.

Our Services

1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

After-Sales Service

1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technical support
