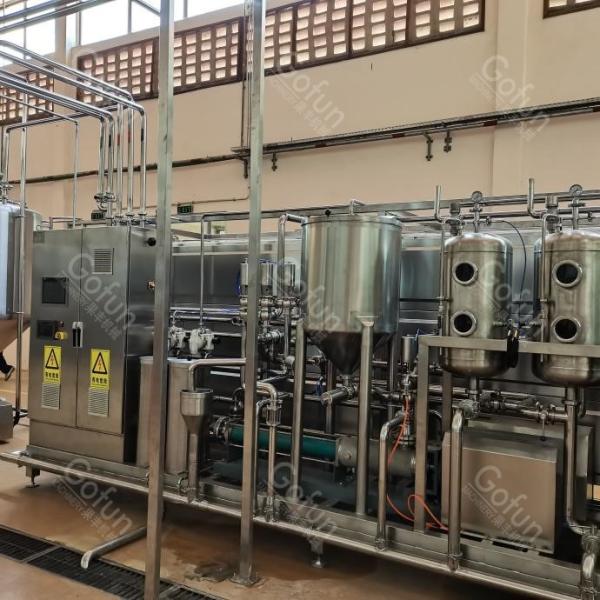

5T/H Tomato Puree Processing Plant From A To Z Fully Automatic

Product description of tomato processing plant

Tomato processing lines can produce from fresh tomatoes to different types of finished products. Popular products such as tomato paste, tomato sauce & ketchup, and tomato juice processing line are produced in aseptic bagged drums from fresh tomatoes to final products.

The processing line mainly includes raw tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentration system, pasteurization system and aseptic filling system. Then you can get tomato paste in sterile bags in drums.

And the tomato paste in aseptic bags in drums can be further packed in tomato ketchup, sauces, juices, sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, etc.

Gofun not only provides tomato processing equipment for your factory, but also can provide his one-stop solution from A to Z, including:

• Technical consultation
• customized proposal design
• Equipment manufacturing
• On-site installation commissioning and training
• 1 year after-sales service warranty
• Lifetime service
• package design and purchase

Main parameters of tomato production line

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Final products & Package types for tomato project

Shanghai Gofun machinery company offers all kinds of the tomato processing line.

The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.

For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.

Main features of the tomato processing line

Tomato processing line is the main product of Shanghai Chalk Machinery Company. Over the last 16 years he has served over 20 countries. We continue to provide high-quality machines and services to food manufacturers around the world.

1. Fresh fruit capacity can be customized from 60 tons/day to 1500 tons/day.

2. Tomatoes can be hot crushed or cold crushed.

3. The final tomato paste Brix can be designed according to customer requirements. Usually 28-30% or 36-38%.

4. The final tomato paste is filled into aseptic bags in drums. With this kind of package, the shelf life at normal temperature he can reach 2 years. This significantly reduces transportation and storage costs.

5. All materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of food hygiene and safety.

6. In addition to aseptic bagging, we also handle metal cans, small bags, standing pouches, glass jars, PET/PP containers, etc.

7. The production line points adopt the international first brand. (Steam valve adopts Spirax Sarco, Siemens PLC, etc.)

8. The design of the entire production line is compact, scientific, stable operation, high efficiency, energy saving and low steam consumption.

9. The operation is simple and human. All feeding and maintenance areas are designed with feeding and maintenance platforms to ensure operator safety.

10. We can also design customized processing lines for different kinds of fruits and vegetables, such as clear juice, cloudy juice, raw fruit, concentrated juice, concentrated pulp, powdered juice, jam, vinegar, wine, etc. Manufacturing is possible.

11. Waste from the production line can be produced into fertilizer.

Key process of the tomato paste processing line

Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.

1. Discharge platform

When fresh tomatoes arrive, they are usually unloaded by large trucks, but unloading them manually is a big deal. So, we design a discharge platform, use water guns to discharge the fresh fruits/tomatoes from the truck, and use water to deliver the fresh fruits/tomatoes to the processing line. Also, the discharge platform has another function, which allows pre-washing of fresh fruits/tomatoes before processing.

2. Elevator

This machine is used to delivery fresh fruit from outside the building to inside.

3. Washing

Before crushing, need to washing fresh fruit carefully. For washing we can use bubble washing machine and spray washing machine together. If the washing requirement is high, more stages of washing can be added. Also, for better cleaning effect, we can add ultrasonic cleaning and ozone cleaning.

4. Sorting

After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.

5. Crushing for tomato processing

GFM-FC series crushers have the most advanced working principle, higher manufacturing precision and best crushing capability. Mainly used for crushing different kinds of fruits and vegetables, such as tomatoes, apples, pears, strawberries, celery, etc. It can grind the raw material into small particles to enhance the working effect of the next processing section. The machine consists of feed hopper, side cover, frame, main shaft, bearing block, motor, motor structure, outlet hopper, etc.

6. Preheating

The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃. This processing step, would help to higher the juice rate for next step, and also can protect the color and taste of the final product.

7. Pulper and refiner

This machine also runs at a speed of 1470 r/min, creating centrifugal force to force the product through the screen, which helps refine the product. We usually use his two stages, Pulper and Refiner, but each stage has a different screen, with a larger screen in the first stage and a smaller screen in the second stage. Double stage pulping machine for tomato pulp yield can reach 90%~95%. After pulping, the tomato skin and seeds are separated from the tomato pulp. The machine works with large capacity and stable performance. Easy to operate and replace sieves. Suitable for many kinds of fruits, such as passion fruit, tomatoes, peaches, apricots, mangoes, apples, etc.

8. Evaporating

Vacuum Evaporator is used for concentrating the tomato paste under vacuum and low temperature. Here we are using Forced Circulation Vacuum Evaporator. Because it’s under vacuum and low temperature, so the tastes and nutrients would be protected as much as possible. And right now, we evaporate the water from the tomato pulp, then we will get the tomato paste, normally the Brix is 28-30% and 36-38%.

9. Sterilizing

For tomato paste we use tube in tube type sterilizer for sterilizing. The sterilizing temperature and holding time is adjustable. With this machine we will heat the tomato paste to a very high temperature around 115℃ holding for 30s and then cooling to ambient temperature immediately. Like this way also can protect the test and nutrients of tomato paste as much as possible. The whole system adopts programmable control. The operating system adopts the image man-machine interface, which is convenient for intuitively grasping the operating status of each component of the device.

10. Aseptic Filling

The aseptic filling machine works together with the tube in tube type sterilizer. It’s a closed cycle. Before production, the cycle will be fully sterilized to make sure the aseptic environment. And the filling cavity is also protected by steam to make sure the filling environment is also aseptic. Safety - providing several security methods. Using mirror welding tech to ensure tidy and smooth welding line. Separate control panel. CIP and auto SIP available together with sterilizer. Easy to adjust to match the different volumes and sizes of aseptic bags

11. Storage or go blending

The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.

Our Services for tomato processing plant

1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

After-Sales Service

1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technical support
