Specifications
Brand Name :
INA / IKO / FAG / NSK / FSK / FAG / OEM
Model Number :
ZKLF2068 2RS
Certification :
ISO9001-2000 / CE / ROHS / UL
Place of Origin :
JAPAN
MOQ :
1 pcs
Price :
0.1-100USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Delivery Time :
3-5Days After Details Confirmed
Packaging Details :
1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Model No. :
ZKLF2068 2RS
Using :
20mm × 68mm × 28mm
Noise level :
Z1,Z2,Z3,Z4
Weight :
0.61
Type :
Angular Contact Ball Bearings
Seal Type :
2RS
Description

ZKLF Series ZKLF2068 2RS Double Row Ball Screws Support Bearing

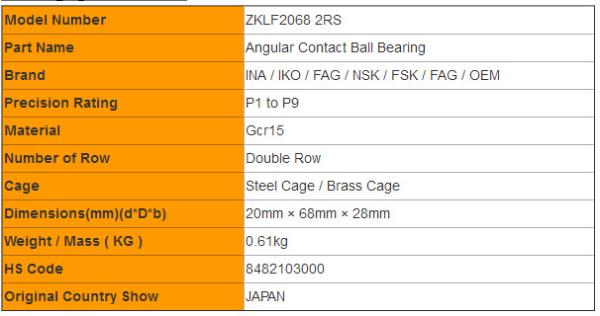

Bearing Specification :

Model Number

ZKLF2068 2RS

Part Name

Angular Contact Ball Bearing

Brand

INA / IKO / FAG / NSK / FSK / FAG / OEM

Precision Rating

P1 to P9
Material Gcr15
Number of Row Double Row
Cage Steel Cage / Brass Cage

Dimensions(mm)(d*D*b)

20mm × 68mm × 28mm

Weight / Mass ( KG )

0.61kg

HS Code

8482103000
Original Country Show JAPAN

Angular Contact Bearing List:

Designation Mass Dimensions Dimensions Setscrew Basic Load Ratings
d D B d1 D1 r r1 J d2 b l Cr Cor
-0.25 min. min. min. min. min. spec Dynamic Static
UBM Kg mm mm kN
ZKLF 1255.2RS 0.37 12 55 25 25 33.5 0.3 0.6 42 6.5 3 17 M6 17 24.7
ZKLF 1255.2Z 0.37 12 55 25 25 33.5 0.3 0.6 42 6.5 3 17 M6 17 24.7
ZKLF 1560.2RS 0.43 15 60 25 28 36 0.3 0.6 46 6.5 3 17 M6 17.9 28
ZKLF 1560.2Z 0.43 15 60 25 23 12 0.3 0.6 46 6.5 3 17 M6 17.9 28
ZKLF 1762.2RS 0.45 17 62 25 23 12 0.3 0.6 48 6.5 3 17 M6 18.8 31
ZKLF 1762.2Z 0.45 17 62 25 25 14 0.3 0.6 48 6.5 3 17 M6 18.8 31
ZKLF 2068.2RS 0.61 20 68 28 25 14 0.3 0.6 53 6.5 3 19 M6 26 47
ZKLF 2068.2Z 0.61 20 68 28 30 16 0.3 0.6 53 6.5 3 19 M6 26 47
ZKLF 2575.2RS 0.72 25 75 28 30 16 0.3 0.6 58 6.5 3 19 M6 27.5 55
ZKLF 2575.2Z 0.72 25 75 28 32 20 0.3 0.6 58 6.5 3 19 M6 27.5 55
ZKLF 3080.2RS 0.78 30 80 28 32 20 0.3 0.6 63 6.5 3 19 M6 29 64
ZKLF 3080.2Z 0.78 30 80 28 34 23 0.3 0.6 63 6.5 3 19 M6 29 64
ZKLF 3590.2RS 1.13 35 90 34 34 23 0.3 0.6 75 8.5 3 25 M8 41 89
ZKLF 3590.2Z 1.13 35 90 34 40 25 0.3 0.6 75 8.5 3 25 M8 41 89
ZKLF 40100.2RS 1.46 40 100 34 40 25 0.3 0.6 80 8.5 3 25 M8 43 101
ZKLF 40100.2Z 1.46 40 100 34 45 32 0.3 0.6 80 8.5 3 25 M8 43 101
ZKLF 50115.2RS 1.86 50 115 34 45 32 0.3 0.6 94 8.5 3 25 M8 46.5 126
ZKLF 50115.2Z 1.86 50 115 34 50 40 0.3 0.6 94 8.5 3 25 M8 46.5 126
ZKLF 60145.2Z 4.3 60 145 45 50 40 0.3 0.6 120 8.5 3 35 M8 84 214
ZKLF 70155.2Z 4.9 70 155 45 59 45 0.3 0.6 130 8.5 3 35 M8 88 241
ZKLF 80165.2Z 5.3 80 165 45 59 45 0.3 0.6 140 8.5 3 35 M8 91 265
ZKLF 90190.2Z 8.7 90 190 55 64 50 0.3 0.6 165 10.5 3 45 M10 135 395
ZKLF 100200.2Z 9.3 100 200 55 64 50 0.3 0.6 175 10.5 3 45 M10 140 435

Bearings Detailed Pictures :

ZKLF Series ZKLF2068 2RS Double Row Ball Screws Support BearingZKLF Series ZKLF2068 2RS Double Row Ball Screws Support Bearing

ZKLF Series ZKLF2068 2RS Double Row Ball Screws Support Bearing, Get Cheap Price from China Angular Contact Ball Bearing Factory Now !
