Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
Specifications
Brand Name :
INA / IKO / McGill / FSK / OEM
Model Number :
NATV40PP
Certification :
ISO9001-2000 / CE / ROHS / UL
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Talk in the letter
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
5-7Days After Details Confirmed
Packaging Details :
1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Model No. :
NKX25
Size :
25mm × 37mm × 30mm
Weight :
30kg
Seal :
Open
Part Name :
Needle Roller Bearings
Character :
Axial Load Compound Bearing
Description

Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery

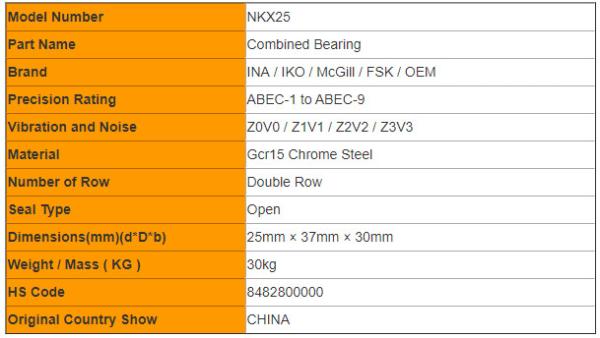

Bearing Specification :

FSK BEARING Model Number

NKX25

Part Name

Combined Bearing

Brand

INA / IKO / McGill / FSK / OEM

Precision Rating

ABEC-1 to ABEC-9
Vibration and Noise Z0V0 / Z1V1 / Z2V2 / Z3V3
Material Gcr15 Chrome Steel
Number of Row Double Row
Seal Type Open

Dimensions(mm)(d*D*b)

25mm × 37mm × 30mm

Weight / Mass ( KG )

30kg

HS Code

8482800000
Original Country Show CHINA

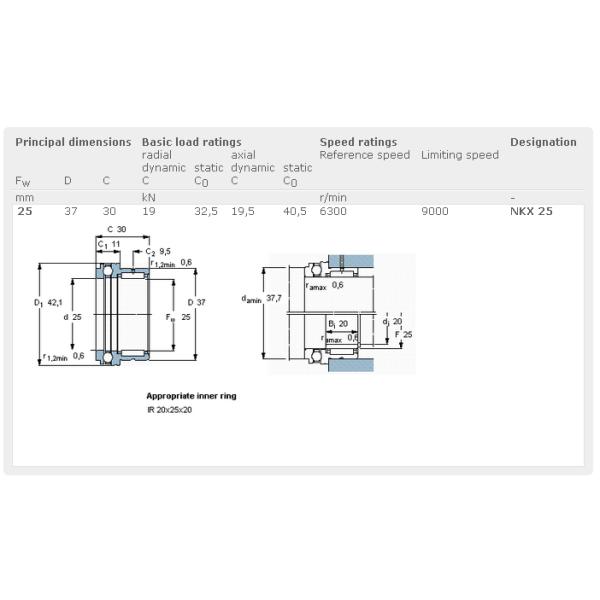

Bearing Drawing :

Double Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery

Complement Bearing List:

Combined needle roller/angular contact ball bearings-NX, NX...Z
Bearing No. Mass Dimension (mm)
Oil Grease (g)
NX 7 TN NX 7 ZTN 14 7 14 18 4.7 7
NX 10 NX 10 Z 25 10 19 18 4.7 10
NX 12 NX 12 Z 28 12 21 18 4.7 12
NX 15 NX 15 Z 48 15 24 28 8 15
NX 17 NX 17 Z 53 17 26 28 8 17
NX 20 NX 20 Z 68 20 30 28 8 20
NX 25 NX 25 Z 115 25 37 30 8 25
NX 30 NX 30 Z 130 30 42 30 10 30
NX 35 NX 35 Z 160 35 47 30 10 35
Combined needle roller/thruCor ball bearings-NKX, NKX...Z
Bearing Mass Bearing Mass Dimension (mm)
No. (g) No. (g) Fw D D1 D2
NKX10 TN 34 NKX10 Z TN 36 10 19 24.1 25.2
NKX12 38 NKX12Z 40 12 21 26.1 27.2
NKX15 44 NKX15Z 47 15 24 28.1 29.2
NKX17 53 NKX17Z 55 17 26 30.1 31.2
NKX20 83 NKX20Z 90 20 30 35.1 36.2
NKX25 125 NKX25Z 132 25 37 42.1 43.2
NKX30 141 NKX30Z 148 30 42 47.1 48.2
NKX35 163 NKX35Z 168 35 47 52.1 53.2
NKX40 200 NKX40Z 208 40 52 60.1 61.2
NKX45 252 NKX45Z 265 45 58 65.2 66.5
NKX50 280 NKX50Z 300 50 62 70.2 71.5
NKX60 360 NKX60Z 380 60 72 85.2 86.5
NKX70 500 NKX70Z 520 70 85 95.2 96.5


Bearings Detailed Pictures :

Double Row NKX25 Combined Thrust Needle Roller Bearings Series for MachineryDouble Row NKX25 Combined Thrust Needle Roller Bearings Series for Machinery
