Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
Specifications
Brand Name :
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Model Number :
62309-2RSR C3
Certification :
ISO9001-2000 / CE / ROHS / UL
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Let's Chat in Detail
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Delivery Time :
3 Days After Details Confirmed
Packaging Details :
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Model No. :
62309-2RSR/C3
Size :
45 × 100 × 36 mm
Weight :
1.2 kg
Material :
Chrome Steel / Stainless Steel / Carbon Steel
Advantage :
Low vocie,high speed, long life
Character :
62309 2RSR/C3 bearing / 62309 2RSR C3 bearing / 62309 2RS bearing
Description

62309-2RSR/C3 Deep Groove Ball Bearing Agricultural Machinery Bearing 45 × 100 × 36 mm

62309-2RSR/C3 Bearing Specification :

Model Number

62309-2RS C3

Part Name

Deep Groove Ball Bearing
Feature Thick Walled Bearing

Brand

FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Precision Rating

ABEC-3 to ABEC-5
Material Gcr15 Chrome Steel
Vibration Z2V2 / Z3V3

Dimensions(mm)(d*D*b)

45 × 100 × 36 mm

Weight / Mass ( KG )

1.2 kg

HS Code

8482800000
Original Country Show CHINA

Ball Bearings List :

Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm

Bearing Model Size(mm)

Mass

(kg)
Current Old Z 2Z RZ 2RZ RS 2RS d D B

Rs

min
62200 180500 62000-Z 62200-2Z 62200-RZ 62200-2RZ 62200-RS 62200-2RS 10 30 14 1 0.044
62201 180501 62201-Z 62201-2Z 62201-RZ 62201-2RZ 62201-RS 62201-2RS 12 32 14 1.1 0.053
62202 180502 62202-Z 62202-2Z 62202-RZ 62202-2RZ 62202-RS 62202-2RS 15 35 14 1.1 0.065
62203 180503 62203-Z 62203-2Z 62203-RZ 62203-2RZ 62203-RS 62203-2RS 17 40 16 0.6 0.086
62204 180504 62204-Z 62204-2Z 62204-RZ 62204-2RZ 62204-RS 62204-2RS 20 47 18 1 0.134
62205 180505 62205-Z 62205-2Z 62205-RZ 62205-2RZ 62205-RS 62205-2RS 25 52 18 1 0.146
62206 180506 62206-Z 62206-2Z 62206-RZ 62206-2RZ 62206-RS 62206-2RS 30 62 20 1 0.249
62207 180507 62207-Z 62207-2Z 62207-RZ 62207-2RZ 62207-RS 62207-2RS 35 72 23 1.1 0.381
62208 180508 62208-Z 62208-2Z 62208-RZ 62208-2RZ 62208-RS 62208-2RS 40 80 23 1.1 0.45
62209 180509 62209-Z 62209-2Z 62209-RZ 62209-2RZ 62209-RS 62209-2RS 45 85 23 1.1 0.485
62210 180510 62210-Z 62210-2Z 62210-RZ 62210-2RZ 62210-RS 62210-2RS 50 90 23 1.1 0.535
62211 180511 62211-Z 62211-2Z 62211-RZ 62211-2RZ 62211-RS 62211-2RS 55 100 25 1.5 0.68
62212 180512 62212-Z 62212-2Z 62212-RZ 62212-2RZ 62212-RS 62212-2RS 60 110 28 1.5 1.01
62213 180513 62213-Z 62213-2Z 62213-RZ 62213-2RZ 62213-RS 62213-2RS 65 120 31 1.5 1.28
62214 180514 62214-Z 62214-2Z 62214-RZ 62214-2RZ 62214-RS 62214-2RS 70 130 31 1.5 1.4
62304 180604 62304-Z 62304-2Z 62304-RZ 62304-2RZ 62304-RS 62304-2RS 20 52 21 1.1 0.197
62305 180605 62305-Z 62305-2Z 62305-RZ 62305-2RZ 62305-RS 62305-2RS 25 62 24 1.1 0.302
62306 180606 62306-Z 62306-2Z 62306-RZ 62306-2RZ 62306-RS 62306-2RS 30 72 27 1.1 0.489
62307 180607 62307-Z 62307-2Z 62307-RZ 62307-2RZ 62307-RS 62307-2RS 35 80 31 1.5 0.614
62308 180608 62308-Z 62308-2Z 62308-RZ 62308-2RZ 62308-RS 62308-2RS 40 90 33 1.5 0.843
62309 180609 62309-Z 62309-2Z 62309-RZ 62309-2RZ 62309-RS 62309-2RS 45 100 36 1.5 1.11
62310 180610 62310-Z 62310-2Z 62310-RZ 62310-2RZ 62310-RS 62310-2RS 50 110 40 2 1.47
62311 180611 62311-Z 62311-2Z 62311-RZ 62311-2RZ 62311-RS 62311-2RS 55 120 43 2 1.95
62312 180612 62312-Z 62312-2Z 62312-RZ 62312-2RZ 62312-RS 62312-2RS 60 130 46 2.1 2.5
62313 180613 62313-Z 62313-2Z 62313-RZ 62313-2RZ 62313-RS 62313-2RS 65 140 48 2.1 2.94
62314 180614 62314-Z 62314-2Z 62314-RZ 62314-2RZ 62314-RS 62314-2RS 70 150 51 2.1 3.58

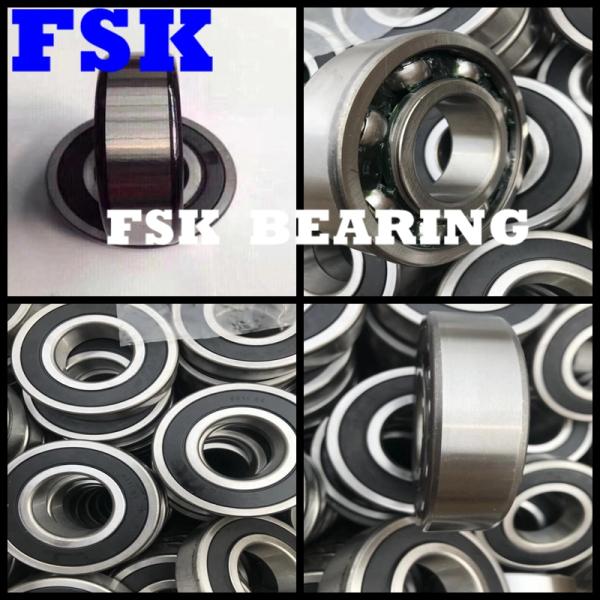

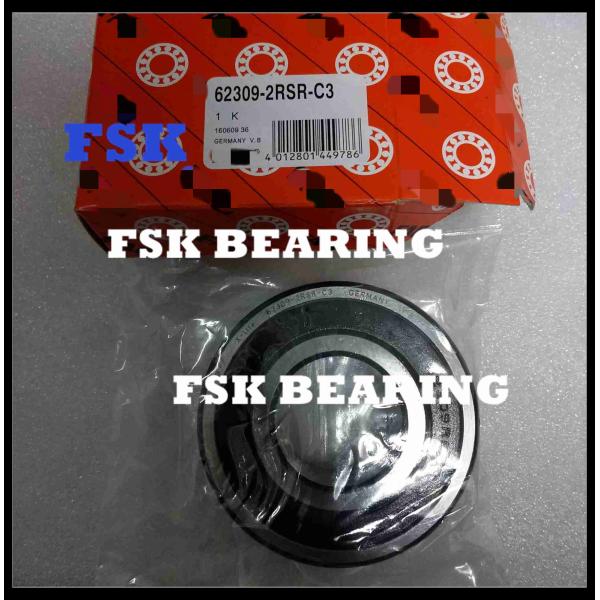

62309-2RSR/C3 Bearings Detailed Pictures :

Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm

Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm

The Other Bearings We Do:

Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm

Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required tofit shaft

Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.

​62309-2RSR/C3 Deep Groove Ball Bearing Agricultural Machinery Bearing 45 × 100 × 36 mm, Get Cheap Price from China Roller Bearing Factory Now !
