Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole
Specifications
Brand Name :
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Model Number :
22220 EK/C3
Certification :
ISO9001-2000 / CE / ROHS / UL
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Let's Chat in Detail
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Delivery Time :
3 Days After Details Confirmed
Packaging Details :
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Model No. :
22220 EK/C3
Size :
100 x 180 x 46mm
Weight :
4.8kg
Material :
Chrome Steel / Stainless Steel / Carbon Steel
Advantage :
Low vocie,high speed, long life
Same Model :
22220EK/C3 Bearing / 22220 EK C3 Bearing /22220 EK/C3 bearing
Description

Large Size 22220 EK/C3 Spherical Roller Bearing for Hydroelectric Generator

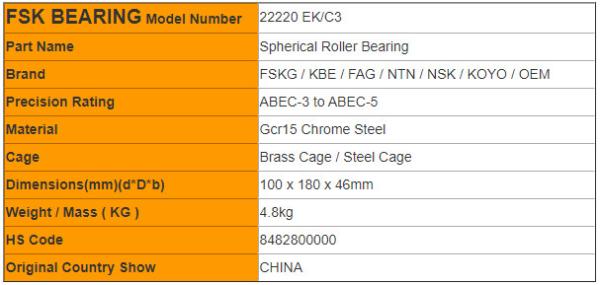

Bearing Specification :

FSK BEARING Model Number

22220 EK/C3

Part Name

Spherical Roller Bearing

Brand

FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Precision Rating

ABEC-3 to ABEC-5
Material Gcr15 Chrome Steel
Cage Brass Cage / Steel Cage

Dimensions(mm)(d*D*b)

100 x 180 x 46mm

Weight / Mass ( KG )

4.8kg

HS Code

8482800000
Original Country Show CHINA

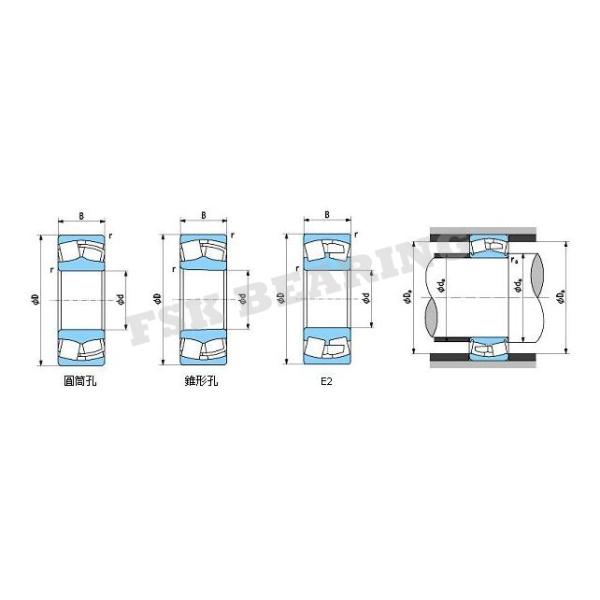

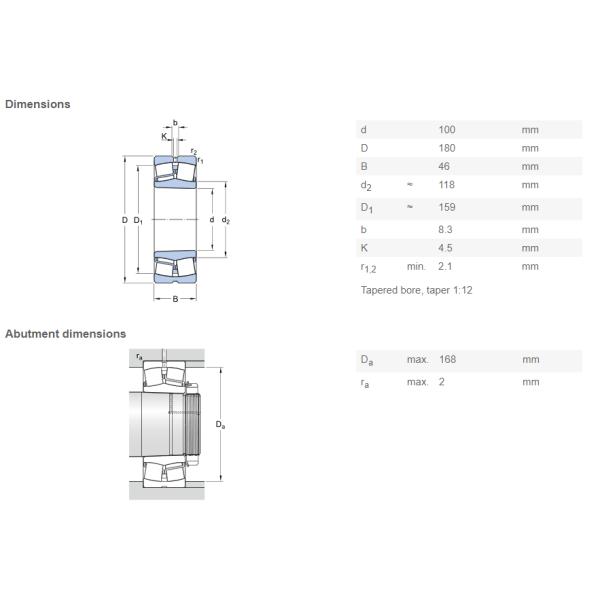

Bearings Drawing Pictures :

Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole

Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole

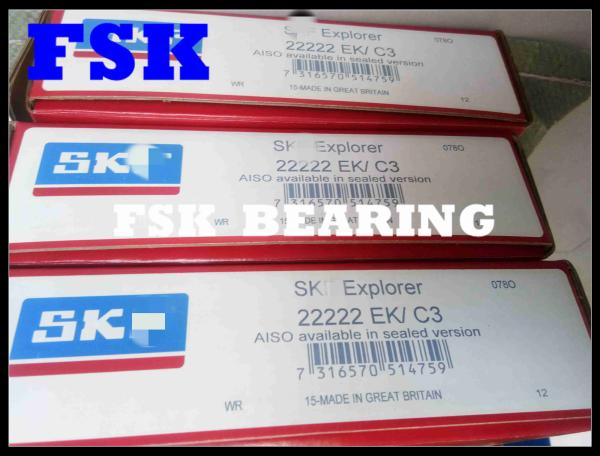

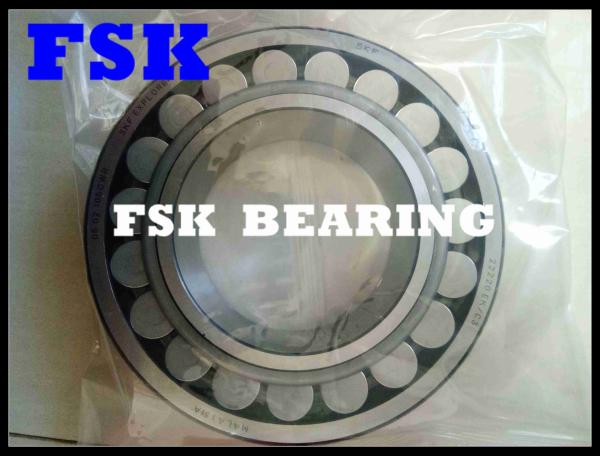

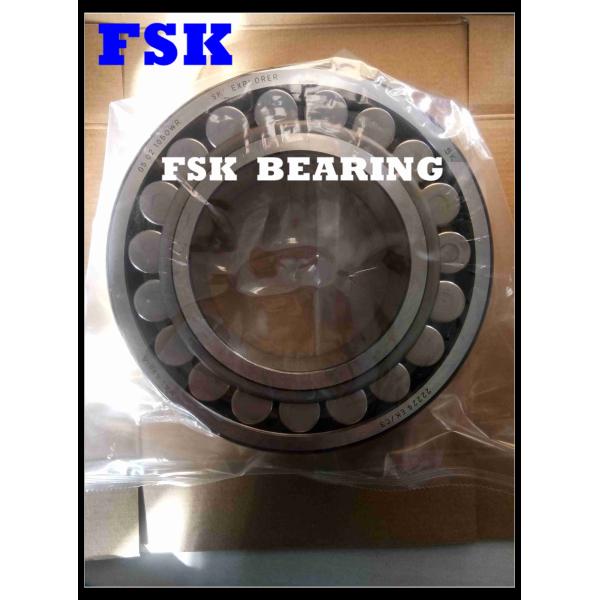

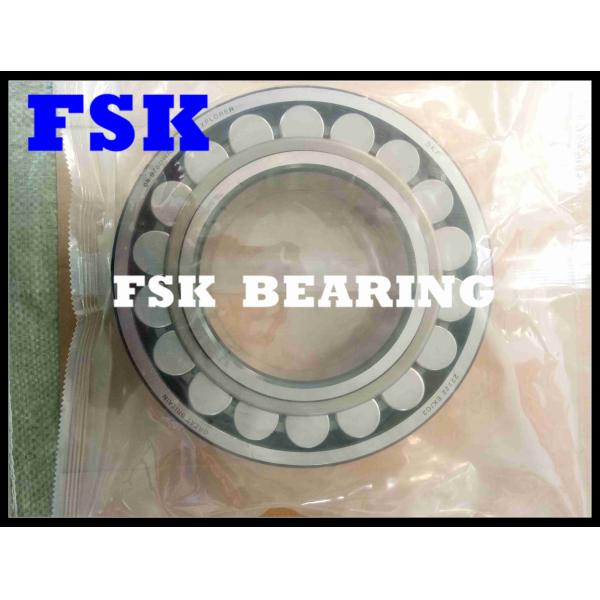

Bearings Detailed Pictures :

Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole

Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole

Same Series Bearing List

Germany Quality 22220 EK / C3 E Cage Spherical Roller Bearings With Tapered Hole

Bearing Model Specification(mm) Dynamic Load Static Load Limied Speed(rpm) Mass
Round Hole with Taper Hole d D B r Cr(N) Cor(N) Grease Oil (kg)
(min)
22218EX 22218EXK 90 160 40 2 294000 375000 1900 2600 3.5
22218AEX 22218AEXK 90 160 40 2 261000 310000 2700 3600 3.56
23218EX1 23218EX1K 90 160 52 2 337000 482000 2100 2800 4.57
21318EX1 21318EX1K 90 190 43 3 330000 410000 1900 2500 6.1
21318AX 21318AXK 90 190 43 3 330000 416000 2500 3000 6.45
22318EX 22318EXK 90 190 64 3 535000 660000 1800 2400 8.82
22318AEX 22318AEXK 90 190 64 3 495000 585000 2500 3200 8.91
22219EX 22219EXK 95 170 43 2.1 335000 420000 1900 2600 4.24
22219AEX 22219AEXK 95 170 43 2.1 295000 360000 2600 3400 4.35
23219E 23219EK 95 170 55 2.1 360000 510000 1900 2100 5.46
21319EX1 21319EX1K 95 200 45 3 362000 461000 1800 2300 7.1
21319AX 21319AXK 95 200 45 3 355000 450000 2000 3000 7.44
22319EX 22319EXK 95 200 67 3 585000 725000 1700 2200 10.2
22319AEX 22319AEXK 95 200 67 3 545000 645000 2300 3000 10.3
23920E 23920EK 100 140 30 1.1 142000 233000 2300 3000 1.46
23020E 23020EK 100 150 37 1.5 206000 325000 1800 2400 2.33
23020AX 23020AXK 100 150 37 1.5 192000 298000 2800 3600 2.4
23120E 23120EK 100 165 52 2 325000 500000 1700 2200 4.49
23120AX 23120AXK 100 165 52 2 325000 538000 2200 3000 4.7
22220EX 22220EXK 100 180 46 2.1 375000 480000 1800 2400 5.1
22220AEX 22220AEXK 100 180 46 2.1 335000 410000 2500 3200 5.24
23220EX1 23220EX1K 100 180 60 2.1 427000 629000 1900 2500 6.76
23220AX 23220AXK 100 180 60 2.1 415000 599000 2100 2800 6.88
21320EX1 21320EX1K 100 215 47 3 416000 524000 1600 2200 8.7
21320AX 21320AXK 100 215 47 3 393000 488000 2200 2800 9.06
22320EX 22320EXK 100 215 73 3 700000 875000 1700 2200 13.1
22320AEX 22320AEXK 100 215 73 3 640000 775000 2200 2800 13.2
23022E 23022EK 110 170 45 2 298000 475000 1800 2400 3.84
23022AX 23022AXK 110 170 45 2 298000 478000 2500 3200 3.9
23122EX1 23122EX1K 110 180 56 2 390000 610000 1800 2400 5.7
23122AX 23122AXK 110 180 56 2 387000 605000 2000 2700 5.8
24122EX1 24122EX1K30 110 180 69 2 455000 743000 1800 2400 6.89
24122AX 24122AXK30 110 180 69 2 415000 654000 1800 2400 6.85
22222EX 22222EXK 110 200 53 2.1 490000 640000 1700 2200 7.36
22222AEX 22222AEXK 110 200 53 2.1 435000 550000 2200 2900 7.53
23222EX1 23222EX1K 110 200 69 2.1 538000 793000 1700 2200 9.6
23222AX 23222AXK 110 200 69 2.1 534000 801000 1900 2500 10
21322EX1 21322EX1K 110 240 50 3 485000 635000 1400 1900 11.6
21322AX 21322AXK 110 240 50 3 473000 601000 2000 2500 12.2
22322EX 22322EXK 110 240 80 3 825000 1040000 1500 1900 18.1
22322AEX 22322AEXK 110 240 80 3 770000 940000 2000 2500 18.2
