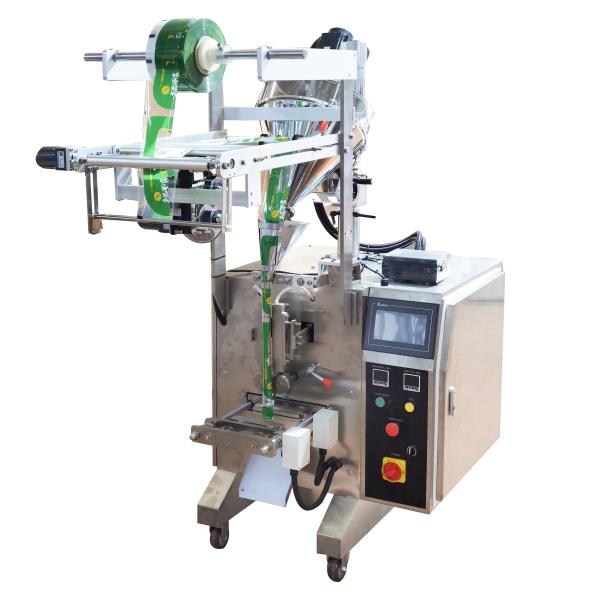

TCLB-160F

Optional function devices:

1. Hole punch device

2. Tear notch device
3. Linking bag control device
4. Air exhaust device
5. Nitrogen inflation device
6. Triangle package

Characteristic:

1. English and Chinese screen display ,operation is simple .

2. PLC computer system , function is more stable , adjustment any parameters not need stop machine.

3. It can stock ten dispose , simple to change variety.

4. Sever motor drawing film , position accurately.

5. Temperature independent control system ,precision get to±1°C.

6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.

7. Packing type diversification , pillow sealing, standing type ,punching etc.

8. Bag–making , sealing, packing, print date in one operation.

9. Work circumstance quiet, low noise.

TCLB-160F sachet powder packing machine,sachet granular packing machine,automatic powder packing machine

control system, error message, self diagnosis function

2 group temperature controls (longitudinal sealing, transverse sealing)

can pack:Flour, milk powder, soy powder , such as packaging, suitable for 200ml or less of the product packaging

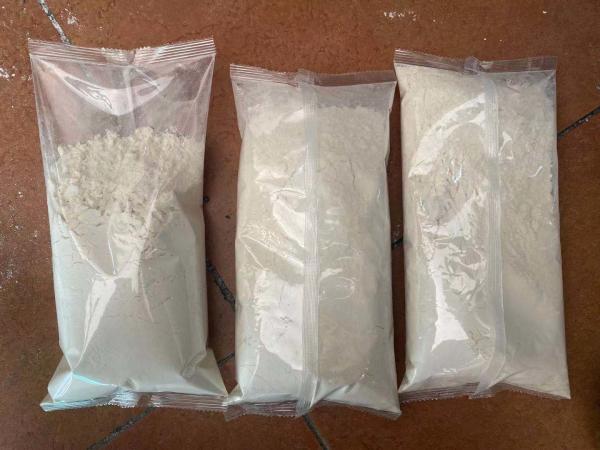

Package Sample:

Easy operation

Durable with compact structure

Save energy and manpower saving

Powder measuring head

Touch screen control board

Setting the dimension of packing bag, volume of the powder etc. PLC Option

Bag forming part

Different dimension of the bag can change the bag device. easy to make a change.

Length of the bag can be setting

Sealing part

Hanging hole, link bag, easy tear for opt

sealing type

BACK SEAL

3 side seal

4 side seal

Our factory

Small vertical packing machine department

1. Machine with compact structure, stable performance and low noise.

2. Adopting the photoelectric eye control syste.

3. Frequency control the speed of the motor, more stable to operate and lower the failure rate.

4. Machine is full automatic from measuring, bagging, date priting fro

www.fstcpack-com.ecer.com

Ling Lu :WhatsApp/Viber/WeChat:008615018600683v Email:linglu912@gmail.com.

Automatic Vertical high speed packing machine,packaging machine:Fully-automatically complete all the process from Feeding, Weighting ,Filling, Bag–making , Sealing, Cutting ,Packing, Date-printing to finished products outputting.

Application:

This vertical packaging machine(packing machine ) be used for packing grain material in field of food, medicine and chemical. Such as oatmeal, rice ,sachet ,snack,rice, dry fruits,dried fruits,puffed food, flour,granulated sugar, medicine ,,honey,coffee,,instance coffee,roasted coffee powder ,salt,sea salt , peanut ,nut,cashew,macaroni ,,nuts,potato chips ,milk powder, washing powder chilli paste,chilli powder and tea and other grain(granule) or powder products, macaroni etc. Ling Lu whatsApp +86 15018600683

Machine video:

Automatic snacks:https://youtu.be/o_iibrZrObI

peanuts , popcorn packing machine :https://youtu.be/Cr3HDsjYPpU

soya bean:https://youtu.be/Us0EsBD_9N8

tomato ketchup:https://youtu.be/sLLfYZFaXVY

frozen food:https://youtu.be/AcgKyjs1qNA

square liquid:https://youtu.be/QhGtVIblUQk

Specifications:

FEATURES:

1. English and Chinese screen display (other language available)

2. PLC control , function is more stable , adjustment any parameters not need stop machine.

3. Step motor drawing film , position accurately.

4. Temperature independent control system ,precision get to±1°C.

5. Horizontal , vertical temperature control ,suitable for various of mix film

6. Various bag type: pillow sealing, 3 side seal , 4 side seal

7.Feeding, Weighting ,Filling,Bag–making ,Sealing, Cutting ,Packing, Date-printing in one operation.

8. Work circumstance quiet, low noise.

9.Ling Lu :WhatsApp/Viber/WeChat:008615018600683v Email:linglu912@gmail.com

product Details :

1.Different bag width ,different former , the bag width is adjustable by the former.

2.The Bag Length:Can be set on the Machine screen display

PACKING MATERIALS:

BOPP/Polyethylene,Aluminium/Polyethylene,Paper/Polyethylene,Polester/Plated alumnium/Polyethylene,Nylon/CPP ETC.

Optional fittings:

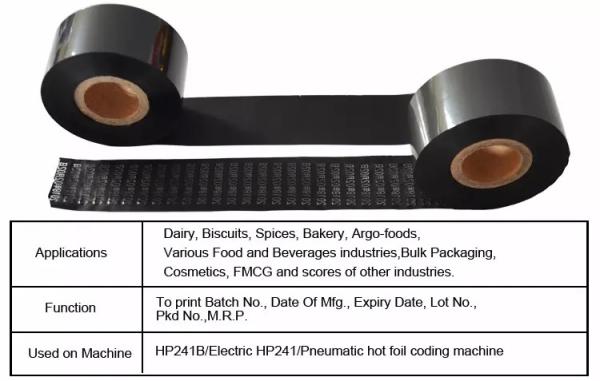

1.Ribbon printer

2.Hole punch device

3.Bag linking device

4..Easy tear device

Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector

Basic Service:

1.technical support.

2.loading inform

3.video for debugging

4.customers' require is welcome

After-sales Service Provided:

Engineers available to service machinery overseas.The Machine warranty would be one year.

WhatsApp /Viber /WeChat : 00 86 15018600683 Email:linglu912@gmail.com

QQ:365059000

Welcome to Visit our factory

Ms Ling Lu

Ling manager

Foshan Nanhai Taichuan Packaging Machinery co.,ltd

www.fstcpack-com.ecer.com

WhatsApp /Viber /WeChat : 00 86 15018600683

Email:linglu912@gmail.com

QQ : 365059000

CE Certificate:

Machine pacakging: wooden case
