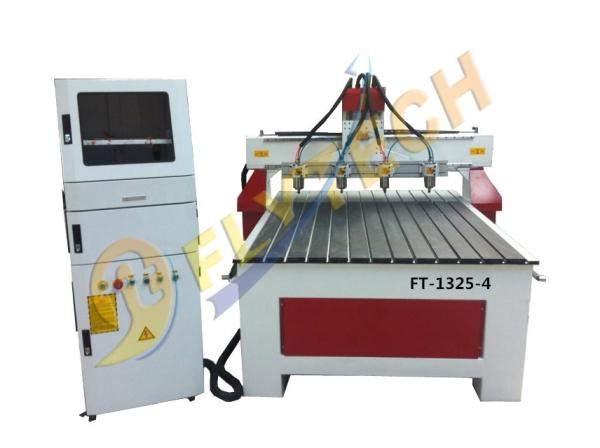

FT-1325-4Multi-head wood cnc router

1

Machine body

Whole weld steel tube

2

Guideway

Hiwin Linear square guideway

3

Driving mode

Tilt Rack opinion

4

Working dimensions

1300/4mm*2500mm*200mm

5

Max.feeding height

200mm or bigger

6

Cutting thickness

Less than 40mm

7

Max.speed

25000mm/min

8

Working speed

0-8000mm/min

9

Mechanical precision

0.01mm

10

Software

Type3 artcut artcam

11

Max.power

9.2kw

12

Voltage

AC220V/50Hz

13

Driver type

Stepper

14

Spindle

4x1.5kw water cooling spindle

15

Spindle speed

0-24000rpm/min

16

Blade diameter

3.175mm 4mm 6mm 8mm 10mm

17

Control system

NCstudio or DSP or MACH3

18

Command

G-code,uoo,plt.mmg

19

Relative humidity

30%-75%

20

Pack dimensions

2000mm*3200mm*1700mm

21

Net weight

950kg

22

Gross weight

1000kg

Application Industries of CNC Wood Router

Furniture Industry

The machine can be used to engrave patterns on wood

material,Such as wood door,composite gates,cupboards

door,interior doors,sofa legs,headboards,antique

furniture and other panel furniture and so on.

Decoration Industry

The machine is applicable to engrave carious decorative

patterns on the surface of decorative paintings,screens,

3D wave boards and acoustic boards.

Musical Instrument Industry

The machine is suitable to engrave decorative patterns

on the head of musical instrument,or to process the

semi-finished guitars. It also can make 3D curved surface.

Mold Industry

The machine can make wood molds,evaporated pattern

casting molds,and other molds.

Craft Industry

The machine is used to engrave decorative patterns on

relief craftworks,automobile accessories and other

craftworks.

Advertising Industry

The machine is applied to cut or engrave patterns on

acrylic.It also can make acrylic adsorption,chest cards

and various label plates.
