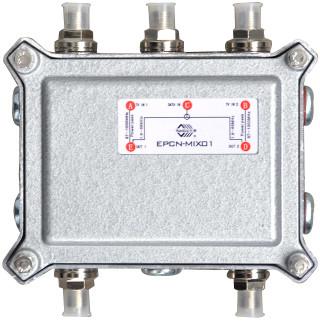

EPCN-MX01 EOC Equipment / EOC CATV Mixer Signal Hum Ratio ≥66dB db
EPCN-MX01 EOC Equipment / EOC CATV Mixer Signal Hum Ratio ≥66dB db
Specifications
Brand Name :
HUANSHUN
Model Number :
EPCN-MX01
Place of Origin :
CHINA
MOQ :
50pcs
Model :
EPCN-MX01
Product Name :
EOC&CATV Mixer
Mutual Isolation :
≥55dB(5-65&85-862/1000MHz) db
Return Loss :
≥16dB(any port) db
Signal Hum Ratio :
≥66dB db
Insertion Loss EOC :
≤5.2dB(includes two distributor loss) db
Price :
Negotiable
Packaging Details :
safety packing
Delivery Time :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Description

Summary

EPCN-MIX01/02 EOC&CATV mixer is formed of 2 or 4 high isolation duplexers and 1 high isolation 2/4 distributor. High isolation distributor is applied to distribute EOC signal into 2/4 routes, and then mix with 2/4 routes CATV signal respectively. MIX-01/02 high channel supports AC overcurrent 60V6A, one low pass supports optional overcurrent and provides feed power supply for EOC network concentrator. EPCN-SM05-CB is single route mixer, channel objects to pass electric. This series mixer applies for transform from CATV optical node (optical receiver or optical work station) to EPON+EOC+CATV network, which is the ideal mating accessories for EOC network.

Technical Parameters

No. Items Unit EPCN-SM05-CB EPCN-MIX01 EPCN-MIX02
1 Insertion Loss EOC dB ≤1.2dB ≤5.2dB(includes two distributor loss) ≤9.2dB(includes four distributor loss)
CATV ≤1.2dB(85-862/1000MHz)
2 Mutual Isolation dB ≥55dB(5-65&85-862/1000MHz)
3 Return Loss dB ≥16dB(any port)
4 Signal Hum Ratio dB ≥66dB
5 Voltage Pass V/A / 60(50Hz)/6 or 10
6 Connector Type Metric F-type female socket Field F-type female socket
7 Outline Size mm 75x55x17 135x135x70 200x160x70

Application

EPCN-MX01 EOC Equipment / EOC CATV Mixer Signal Hum Ratio ≥66dB db

Order Info

Product Name Model Functional Description
EOC&CATV Mixer EPCN-SM05-CB 5-65MHz/85-862(1000)MHz mix, channel objects to electric pass2
EPCN-MIX-01 5-65MHz signal distributes to two routes, then mix with two routes 85-862(1000)MHz CATV signal respectively, CATV channel pass electric and supports optional EOC head end feed power supply
EPCN-MIX-02 5-65MHz signal distributes to four routes, then mix with four routes 85-862(1000)MHz CATV signal respectively, CATV channel pass electric and supports optional EOC head end feed power supply
