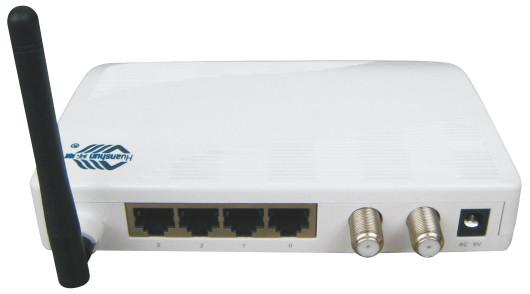

CNU204-HW EOC Network Terminal Box Transmitting Distance >1000 m
CNU204-HW EOC Network Terminal Box Transmitting Distance >1000 m
Specifications
Brand Name :
HUANSHUN
Model Number :
CNU204-HW
Place of Origin :
CHINA
Certification :
China Radio and Television Inspection report
MOQ :
100pcs
mold :
CNU204-HW
Ports :
4 10/100M and 1 WIFI
Standard Follow :
IEEE802.3/3X/3U/1P/1Q and XXX
Expanding Function :
Supports WIFI Business
Encryption Type :
128-bit AES Encryption
Transmitting Distance :
>1000 m
Price :
Negotiable
Packaging Details :
safety packing
Delivery Time :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Description

Summary

CNU204-H/V/W EOC terminal box is installed at home. In details, cable port connects coaxial cable and TV port connects CATV wall panel TV socket or set top box; 4 of 10/100Base-T/Tx Ethernet ports can connect to computers or other network equipments by users requirement. EOC RF operating frequency range of terminal box is chosen in 7.5~65MHz, which can coexist with CATV, DVB-C, DOCSIS and etc existing technologies. EOC terminal box adopts time division multiple access/time division duplex(TDMA/TDD)technology and supports IEEE802.1p priority queue which has very low network delay and shake and then adequately assures quality of service (QoS) of multi-media. Moreover, EOC terminal box supports hardware AES encryption to users’ data and MAC layer isolation to protect privacy users’ data.

Features

l Built-in EOC/CATV signal demultiplexer, provides 2 cable ports to connect up and down link cable respectively;

l Occupies low frequency band communication under 65MHz, no effects on existing CATV signal;

l Dispense with user configuration, starting operating after connecting, supporting VAN, QOS and ASE configuration;

l Provides 4 10/100M self-adaption Ethernet ports, using to connect PC,STB,VOIP and etc equipments;

l Expand 1 RJ11 connector, supporting VOIP network voice call business(CNU204-HV)

l Expand 1 WIFI function, supporting WIFI business(CNU204-HW)

Technical Specifications

Items CNU204-H CNU204-HV CNU204-HW
Ports 4 10/100M Self-adaption 4 10/100M and 1 VOIP 4 10/100M and 1 WIFI
2 Inch Thread Cable Connectors, 1 Input Cable Signal, 1 Output CATV Signal To TV/STB
1 External Power Supply Connector
Indicator Light Link/Act(Eth Port), Link/Act(Cable), Power Supply and Diagnosis all 4
RF Occupied Frequency: 7.5~65MHz, Maximum Output Power: 15dBm, Receiving Sensitivity: -65 dBm, Connector Type: F-Type Female, Output Impedance: 75Ω
Standard Follow IEEE802.3/3X/3U/1P/1Q IEEE802.3/3X/3U/1P/1Q and XXX IEEE802.3/3X/3U/1P/1Q and XXX
Agreement/Performance Downlink TDM,Uplink M-CSMA/Physical Layer Speed: 500Mbps, MAC Layer Throughput: 300Mbps
Software Feature Supporting VAN, QoS, ACE
Modulation Mode OFDM, 1024/256/64/16/8-QAM, QPSK, BPSK
Transmitting Distance >1000 m
Encryption Type 128-bit AES Encryption
Expanding Function / Supports VOIP Business Supports WIFI Business
Power Supply/Consumption External, 9V AC, 800mA/< 5W
Size/Weight 150(Length)x110(Wide)x34(Height)mm/350 g

Order Info

Product Name Model Functional Description
EOC Network Terminal Box CNU204-H one cable uplink EOC network, one TV downlink CATV network, four 10/100Mbps ethernet ports; external 90~255V 9V 0.8A Power Adapter
CNU204-HV one cable uplink EOC network, one TV downlink CATV network, four 10/100Mbps ethernet ports; one RJ11 VOIP port, external 90~255V 9V 0.8A Power Adapter
CNU204-HW one cable uplink EOC network, one TV downlink CATV network, four 10/100Mbps ethernet ports; one WIFI antenna, external 90~255V 9V 0.8A Power Adapter
